Question 1

Where to find the exploded diagram for Engine bay cover on my Saab 9-5 (650) 2010?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Engine bay cover on Saab 9-5 (650) 2010. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Engine bay cover?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Engine bay cover?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Engine bay cover, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Engine bay cover suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	55 565 034 Cover A20NHT	Cover	A20NHT	1
2	55 568 742 Washer A20NHT	Washer	A20NHT	5
3	55 565 033 Emblem A20NHT	Emblem	A20NHT	1
4	24 453 627 Retainer A20NHT	Retainer	A20NHT	4
5	11 609 908 Bolt A20NHT	Bolt	A20NHT	2
6	55 564 300 Bracket A20NHT	Bracket	A20NHT	1
7	11 588 712 Screw A20NHT • M6X20	Screw	A20NHT M6X20	2
8	55 564 173 Bracket A20NHT	Bracket	A20NHT	1

Pos.	Part No.	Description	Usage	Qty
1	55 565 034 Cover A20NHT	Cover	A20NHT	1
2	55 568 742 Washer A20NHT	Washer	A20NHT	5
3	55 565 033 Emblem A20NHT	Emblem	A20NHT	1
4	24 453 627 Retainer A20NHT	Retainer	A20NHT	4
5	11 609 908 Bolt A20NHT	Bolt	A20NHT	2
6	55 564 300 Bracket A20NHT	Bracket	A20NHT	1
7	11 588 712 Screw A20NHT • M6X20	Screw	A20NHT M6X20	2
8	55 564 173 Bracket A20NHT	Bracket	A20NHT	1

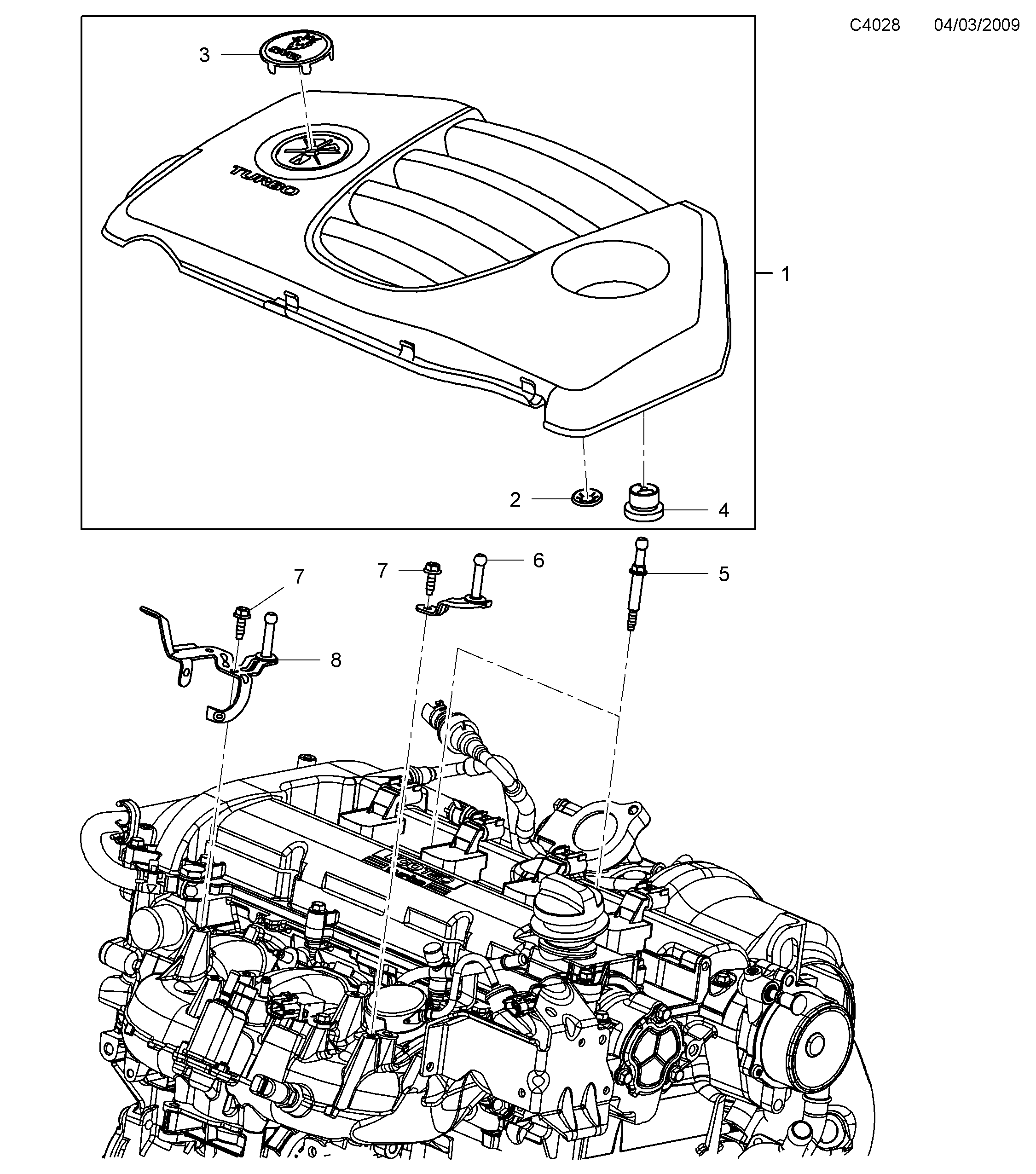

1000: Engine - Engine bay cover
