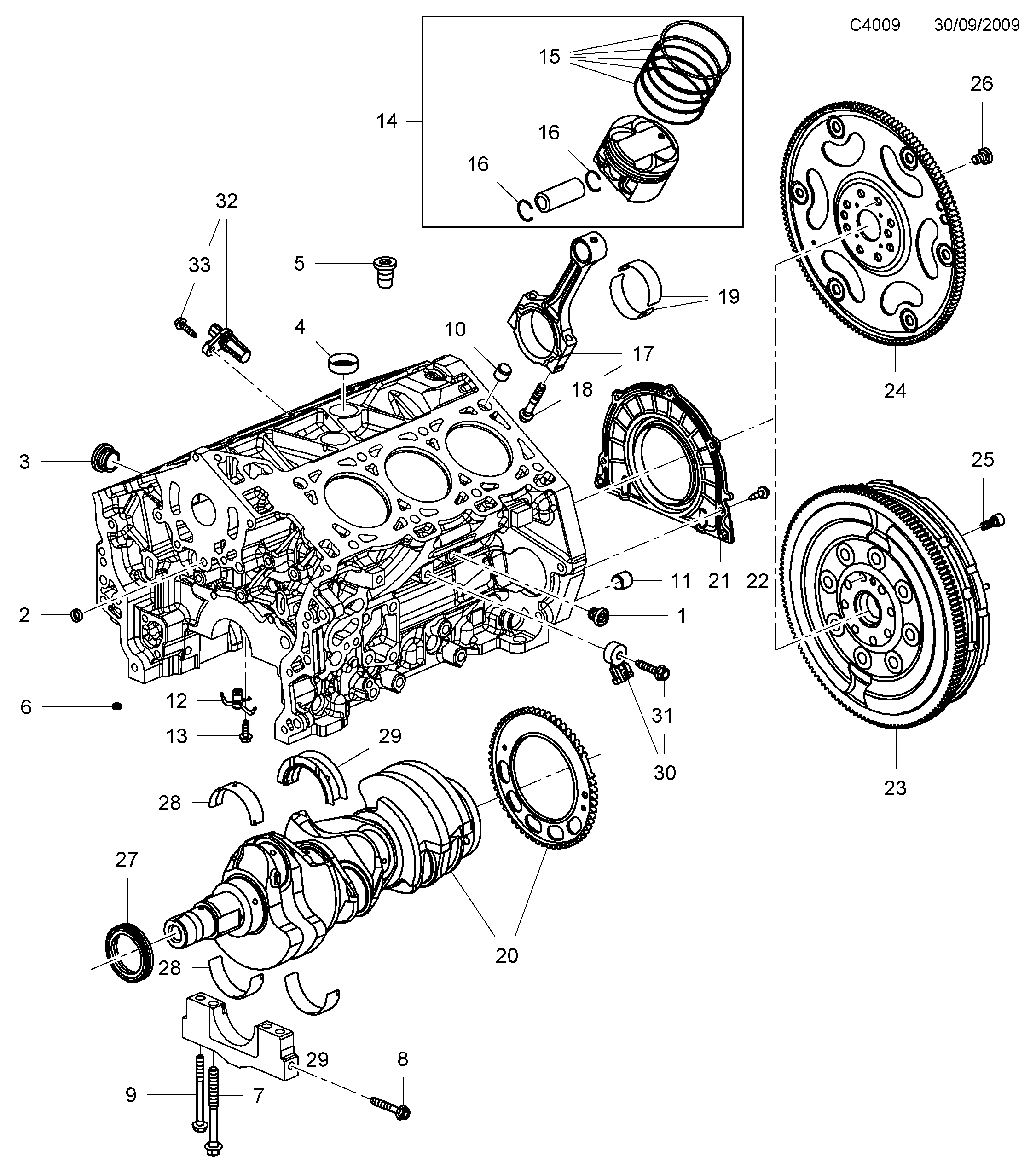

310: Engine - Short block - Cylinder block - Crankshaft and piston

(2010 - 2012 | A28NER, A28NET) | For 9-5 (650) (2010)

100%

(N°300)

Section 310

(N°325)

Pos.	Part No.	Description	Usage	Qty
1	11 561 583 Plug, locking A28NER, A28NET	Plug, locking	A28NER, A28NET	3
2	11 562 127 Plug A28NER, A28NET	Plug	A28NER, A28NET	1
3	11 609 289 Plug, locking A28NER, A28NET	Plug, locking	A28NER, A28NET	1
4	11 569 584 Screw plug A28NER, A28NET	Screw plug	A28NER, A28NET	2
5	11 561 751 Cap A28NER, A28NET	Cap	A28NER, A28NET	1
6	12 557 520 Plug, locking A28NER, A28NET	Plug, locking	A28NER, A28NET	1
7	12 560 272 Screw A28NER, A28NET • M10X102	Screw	A28NER, A28NET M10X102	8
8	11 589 000 Hexagon screw A28NER, A28NET • M8X50.4	Hexagon screw	A28NER, A28NET M8X50.4	4
9	11 518 861 Screw A28NER, A28NET • M8X90	Screw	A28NER, A28NET M8X90	8
10	12 558 081 Centering sleeve A28NER, A28NET	Centering sleeve	A28NER, A28NET	4
11	12 597 210 Sleeve A28NER, A28NET	Sleeve	A28NER, A28NET	2
12	12 610 143 Nozzle A28NER, A28NET	Nozzle	A28NER, A28NET	3
13	11 588 712 Screw A28NER, A28NET • M6X20	Screw	A28NER, A28NET M6X20	3
14	92 068 444 Piston A28NER, A28NET • STD	Piston	A28NER, A28NET STD	6
14	92 068 445 Piston A28NER, A28NET • 0.25 MM O/S	Piston	A28NER, A28NET 0.25 MM O/S	6
15	92 068 446 Piston rings, set A28NER, A28NET • STD	Piston rings, set	A28NER, A28NET STD	6
15	92 068 447 Piston rings, set A28NER, A28NET • 0.25 MM O/S	Piston rings, set	A28NER, A28NET 0.25 MM O/S	6
16	12 566 186 Retaining ring A28NER, A28NET	Retaining ring	A28NER, A28NET	12
17	12 608 427 Connecting rod A28NER, A28NET	Connecting rod	A28NER, A28NET	6
18	11 519 680 Connecting rod bolt A28NER, A28NET	Connecting rod bolt	A28NER, A28NET	12
19	93 186 280 Big end bearing kit A28NER, A28NET • STD	Big end bearing kit	A28NER, A28NET STD	6
20	12 621 350 Crankshaft A28NER, A28NET	Crankshaft	A28NER, A28NET	1
21	12 592 243 Gasket A28NER, A28NET • REAR \| crankshaft	Gasket	A28NER, A28NET REAR \| crankshaft	1
22	11 588 712 Screw A28NER, A28NET • M6X20	Screw	A28NER, A28NET M6X20	5
23	55 562 133 Flywheel A28NER, A28NET	Flywheel	A28NER, A28NET	1
24	12 606 654 Flywheel A28NER, A28NET	Flywheel	A28NER, A28NET	1
25	11 588 884 Torx screw A28NER, A28NET	Torx screw	A28NER, A28NET	8
26	93 172 267 Screw A28NER, A28NET	Screw	A28NER, A28NET	6
27	12 608 750 Sealing ring A28NER, A28NET • FRONT \| crankshaft	Sealing ring	A28NER, A28NET FRONT \| crankshaft	1
28	12 610 603 Crankshaft bearing, kit A28NER, A28NET • STD	Crankshaft bearing, kit	A28NER, A28NET STD	3
29	12 610 604 Guide bearing, kit A28NER, A28NET • STD	Guide bearing, kit	A28NER, A28NET STD	1
30	Knock sensorIntake and exhaust system A28NER, A28NET	Knock sensorIntake and exhaust system A28NER, A28NET
31	ScrewIntake and exhaust system A28NER, A28NET • Knock sensor	ScrewIntake and exhaust system A28NER, A28NET • Knock sensor
32	Crankshaft position sensorIntake and exhaust system A28NER, A28NET	Crankshaft position sensorIntake and exhaust system A28NER, A28NET			1
33	ScrewIntake and exhaust system A28NER, A28NET • Crankshaft position sensor	ScrewIntake and exhaust system A28NER, A28NET • Crankshaft position sensor
