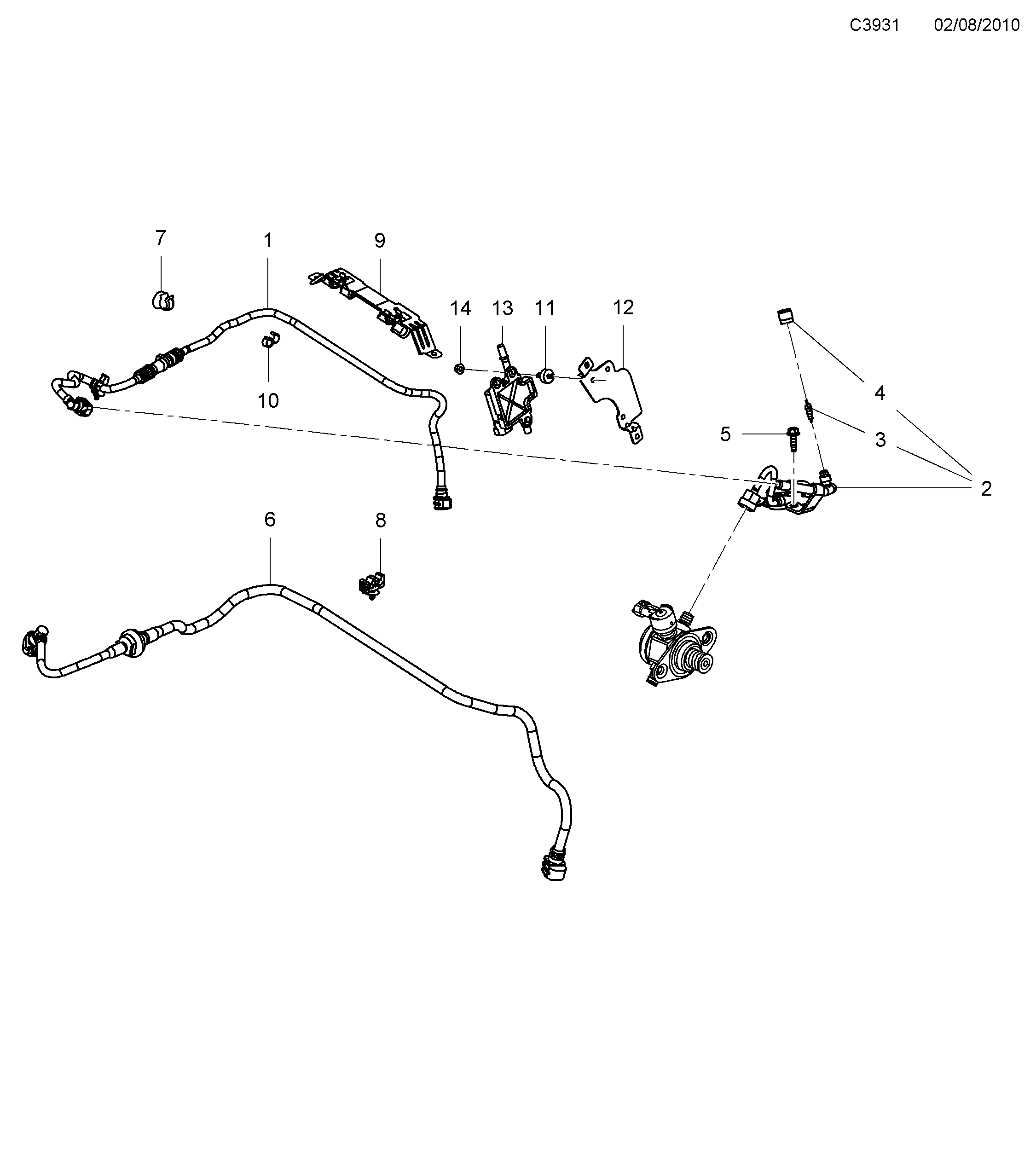

3300: Engine - Fuel system - Fuel pipe
(2010 - 2012 | A20NHT) | For 9-5 (650) (2010)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 223 825 Fuel pipe A20NHT, A20NFT • EMISSION SYSTEM EEC 09 | 1 | |
| 2 | 12 620 297 Pipe A20NHT • Fuel feed hose | 1 | |
| 3 | 12 574 525 Valve A20NHT | 1 | |
| 4 | 25 532 662 Cap A20NHT | 1 | |
| 5 | 11 588 712 Screw A20NHT • M6X20 | Fuel pipe... | 2 | |
| 6 | 13 236 044 Pipe A20NHT • EMISSION SYSTEM EEC 09... | 1 | |
| 7 | 90 501 729 Clip A20NHT • Fuel pipe Front | X | |
| 8 | 55 562 242 Clip A20NHT • Fuel pipe Front | X | |
| 9 | 13 246 031 Bracket A20NHT • Fuel pipe | 1 |
