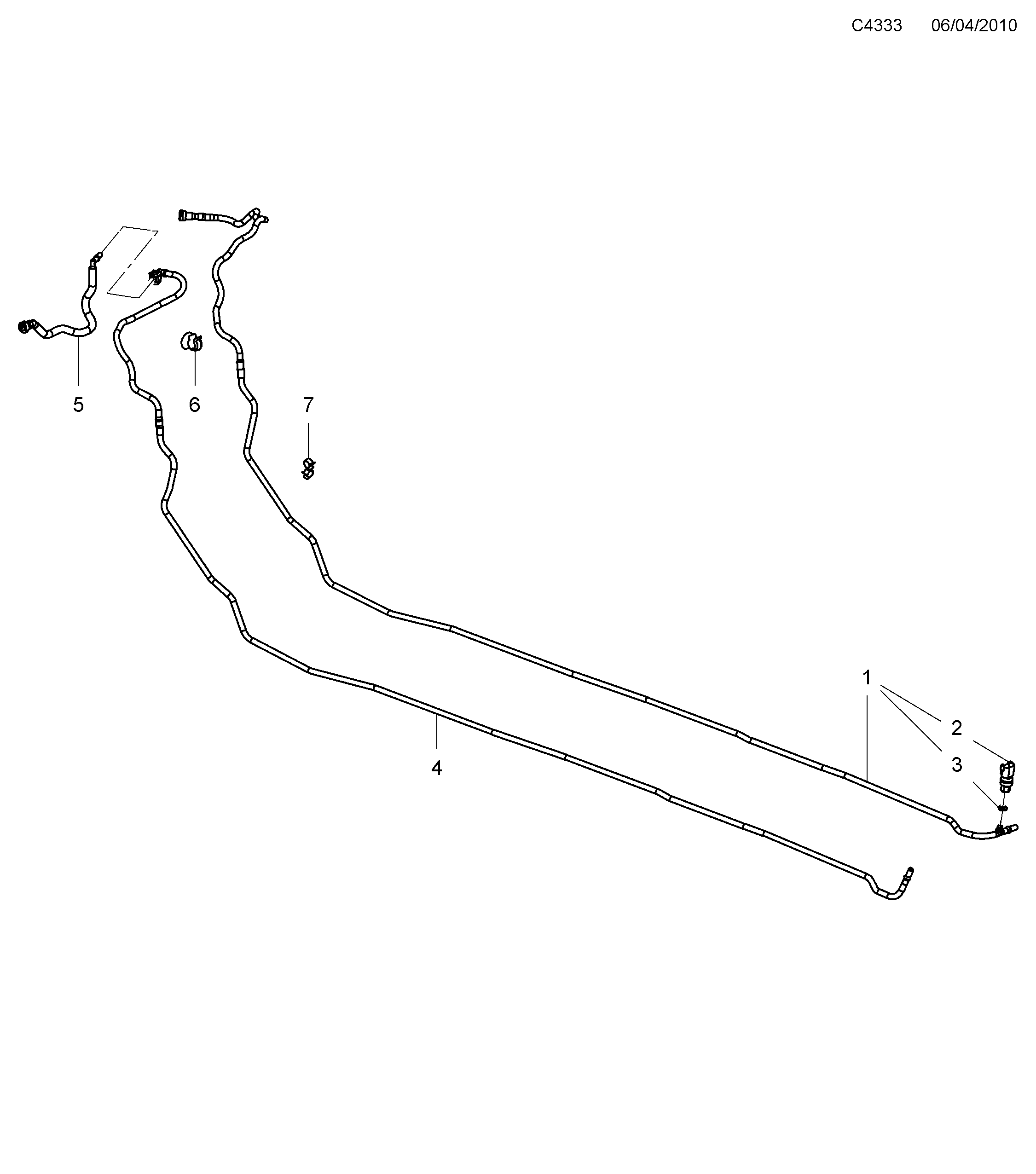

3310: Engine - Fuel system - Fuel pipe
(2010 - 2012 | A28NER, A28NET) | For 9-5 (650) (2010)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 231 603 Fuel feed pipe A28NER, A28NET • FRONT | 1 | |
| 2 | 13 500 745 Sensor A28NER, A28NET | 1 | |
| 3 | 15 778 699 Seal A28NER, A28NET | 1 | |
| 4 | 13 233 288 Pipe, fuel evaporation A28NER, A28NET • FRONT | 1 | |
| 5 | 55 563 711 Pipe A28NER, A28NET | 1 | |
| 6 | 90 501 729 Clip A28NER, A28NET • Fuel pipe Front | X | |
| 7 | 90 278 486 Clamp A28NER, A28NET • Fuel pipe | 2 |
