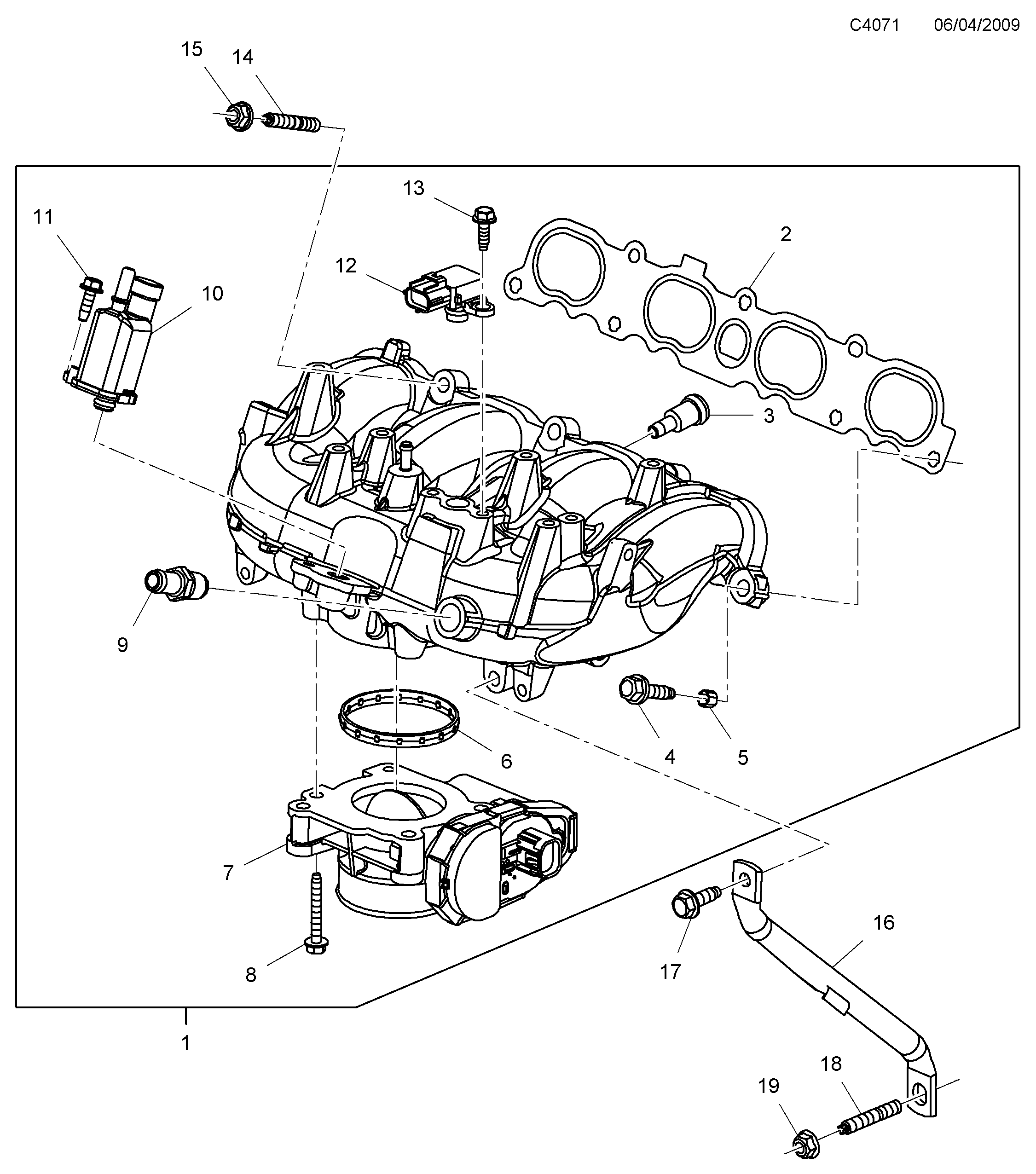

4000: Engine - Intake and exhaust system - Inlet pipe - Throttle body
(2010 - 2012 | A20NHT) | For 9-5 (650) (2010)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 616 667 Intake manifold 2010-2010 • A20NHT | 1 | |
| 2 | 12 589 366 Gasket A20NHT | 1 | |
| 3 | 12 589 440 Bleeder valve A20NHT | 1 | |
| 4 | 11 562 199 Screw A20NHT | 5 | |
| 5 | 11 588 327 Sleeve A20NHT | 5 | |
| 6 | 12 589 416 Seal A20NHT | 1 | |
| 7 | 12 616 669 Throttle body A20NHT | 1 | |
| 8 | 11 588 717 Screw A20NHT • m6x45 | 4 | |
| 9 | 24 504 220 Fitting A20NHT | 1 | |
| 10 | 12 592 015 Valve A20NHT | 1 | |
| 11 | 11 589 241 Screw A20NHT • M6X20 | 1 | |
| 12 | Pressure sensorIntake and exhaust system A20NHT | ||
| 13 | A20NHT | ||
| 14 | 11 519 235 Stud A20NHT | 2 | |
| 15 | 11 516 076 Nut A20NHT | 2 | |
| 16 | 12 606 941 Brace A20NHT | 1 | |
| 17 | 11 588 723 Screw A20NHT • M8X25 | 1 | |
| 18 | 11 589 054 Stud A20NHT | 1 | |
| 19 | 11 516 076 Nut A20NHT | 1 |
