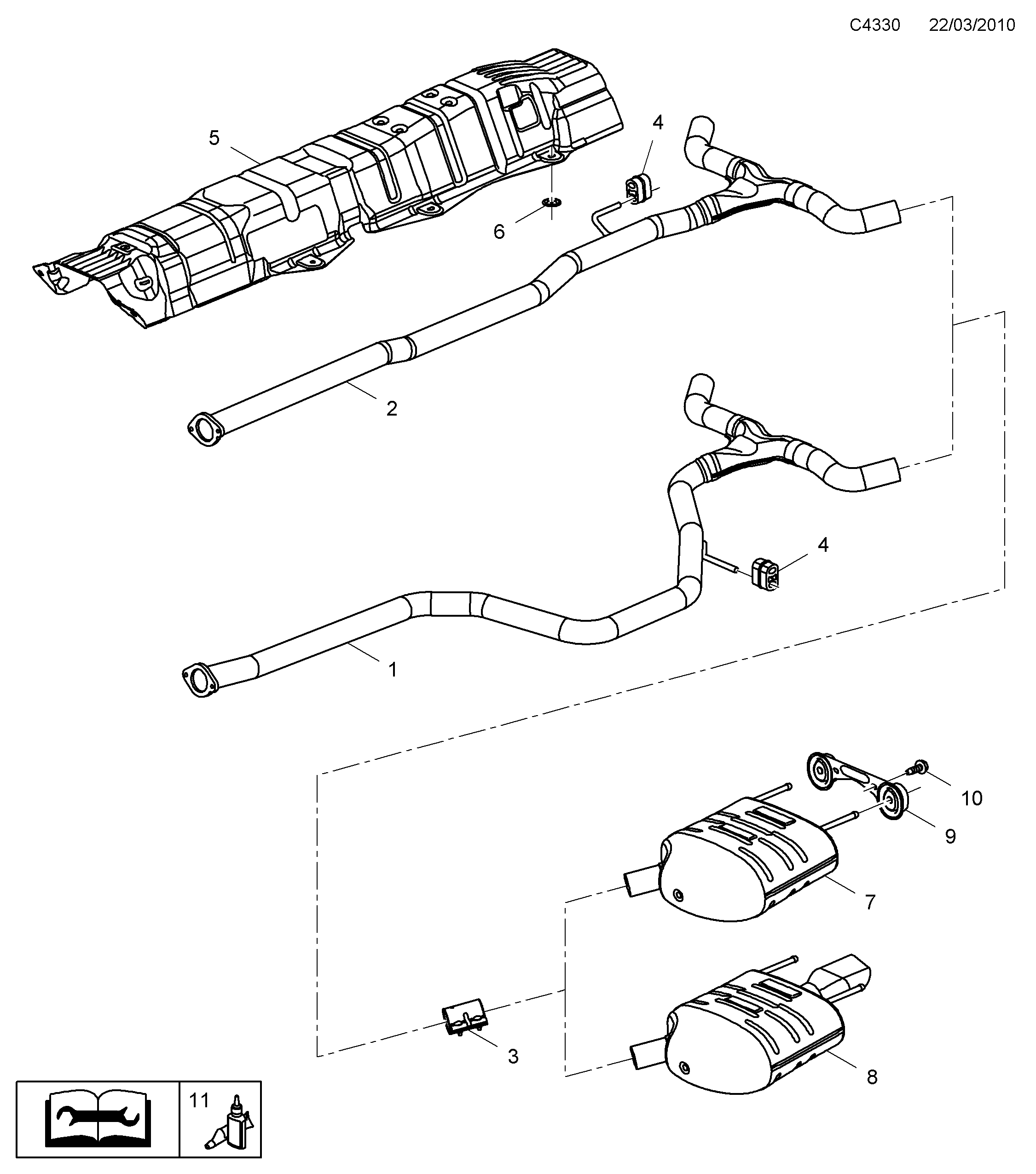

Pos.	Part No.	Description	Usage	Qty
1	13 332 303 Exhaust pipe A20DTH, A20DTR • CENTER \| Less All...	Exhaust pipe	A20DTH, A20DTR CENTER \| Less All...	1
2	13 332 311 Exhaust pipe A20DTH, A20DTR • CENTER \| With All...	Exhaust pipe	A20DTH, A20DTR CENTER \| With All...	1
3	13 278 369 Clamp A20DTH, A20DTR • 55mm	Clamp	A20DTH, A20DTR 55mm	2
4	90 466 668 Rubber mounting A20DTH, A20DTR	Rubber mounting	A20DTH, A20DTR	1
5	13 238 805 Heat shield A20DTH, A20DTR • Centre	Heat shield	A20DTH, A20DTR Centre	1
6	13 245 749 Clamping spring A20DTH, A20DTR • Heat shield	Clamping spring	A20DTH, A20DTR Heat shield	X
7	13 332 315 Silencer A20DTH, A20DTR • RH \| Except chrome...	Silencer	A20DTH, A20DTR RH \| Except chrome...	1
7	13 332 314 Silencer A20DTH, A20DTR • LH \| Except chrome...	Silencer	A20DTH, A20DTR LH \| Except chrome...	1
8	13 332 305 Silencer A20DTH, A20DTR • RH \| With chrome...	Silencer	A20DTH, A20DTR RH \| With chrome...	1
8	13 332 304 Silencer A20DTH, A20DTR • LH \| With chrome...	Silencer	A20DTH, A20DTR LH \| With chrome...	1
9	13 229 794 Suspension A20DTH, A20DTR • Rear Exhaust pipe mounting	Suspension	A20DTH, A20DTR Rear Exhaust pipe mounting	2
10	11 588 723 Screw A20DTH, A20DTR • M8X25 \| Suspension Exhaust...	Screw	A20DTH, A20DTR M8X25 \| Suspension Exhaust...	2
11	90 513 210 Mounting paste A20DTH, A20DTR • 120G	Mounting paste	A20DTH, A20DTR 120G	1

Pos.	Part No.	Description	Usage	Qty
1	13 332 303 Exhaust pipe A20DTH, A20DTR • CENTER \| Less All...	Exhaust pipe	A20DTH, A20DTR CENTER \| Less All...	1
2	13 332 311 Exhaust pipe A20DTH, A20DTR • CENTER \| With All...	Exhaust pipe	A20DTH, A20DTR CENTER \| With All...	1
3	13 278 369 Clamp A20DTH, A20DTR • 55mm	Clamp	A20DTH, A20DTR 55mm	2
4	90 466 668 Rubber mounting A20DTH, A20DTR	Rubber mounting	A20DTH, A20DTR	1
5	13 238 805 Heat shield A20DTH, A20DTR • Centre	Heat shield	A20DTH, A20DTR Centre	1
6	13 245 749 Clamping spring A20DTH, A20DTR • Heat shield	Clamping spring	A20DTH, A20DTR Heat shield	X
7	13 332 315 Silencer A20DTH, A20DTR • RH \| Except chrome...	Silencer	A20DTH, A20DTR RH \| Except chrome...	1
7	13 332 314 Silencer A20DTH, A20DTR • LH \| Except chrome...	Silencer	A20DTH, A20DTR LH \| Except chrome...	1
8	13 332 305 Silencer A20DTH, A20DTR • RH \| With chrome...	Silencer	A20DTH, A20DTR RH \| With chrome...	1
8	13 332 304 Silencer A20DTH, A20DTR • LH \| With chrome...	Silencer	A20DTH, A20DTR LH \| With chrome...	1
9	13 229 794 Suspension A20DTH, A20DTR • Rear Exhaust pipe mounting	Suspension	A20DTH, A20DTR Rear Exhaust pipe mounting	2
10	11 588 723 Screw A20DTH, A20DTR • M8X25 \| Suspension Exhaust...	Screw	A20DTH, A20DTR M8X25 \| Suspension Exhaust...	2
11	90 513 210 Mounting paste A20DTH, A20DTR • 120G	Mounting paste	A20DTH, A20DTR 120G	1

4650: Engine - Intake and exhaust system - Exhaust system - Rear
