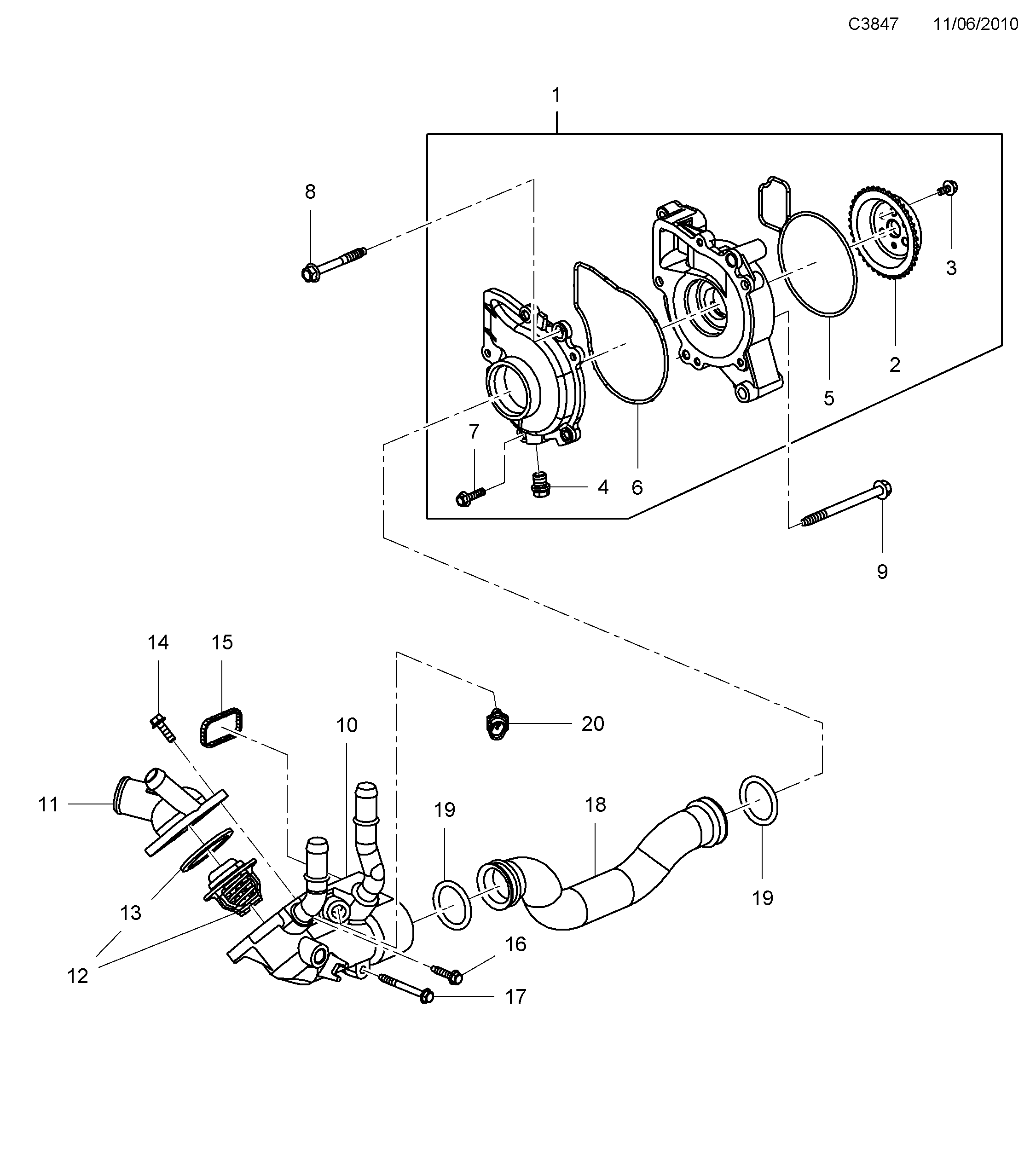

Pos.	Part No.	Description	Usage	Qty
1	12 630 084 Water pump A20NHT	Water pump	A20NHT	1
2	90 537 298 Chain gear A20NHT	Chain gear	A20NHT	1
3	11 518 061 Screw A20NHT • M6X13	Screw	A20NHT M6X13	3
4	90 537 623 Screw plug A20NHT	Screw plug	A20NHT	1
5	24 439 799 Gasket A20NHT	Gasket	A20NHT	1
6	24 446 365 Gasket A20NHT	Gasket	A20NHT	1
7	11 518 063 Screw A20NHT • M6X25	Screw	A20NHT M6X25	4
8	11 900 262 Screw A20NHT	Screw	A20NHT	2
9	11 589 253 Screw A20NHT • M8X105	Screw	A20NHT M8X105	2
10	12 605 853 Thermostat housing A20NHT	Thermostat housing	A20NHT	1
11	12 599 085 Connector A20NHT • INLET	Connector	A20NHT INLET	1
12	12 622 410 Thermostat A20NHT	Thermostat	A20NHT	1
13	35 22 676 Gasket A20NHT	Gasket	A20NHT	1
14	11 588 714 Screw A20NHT • M6X30	Screw	A20NHT M6X30	2
15	90 537 471 Gasket A20NHT	Gasket	A20NHT	1
16	11 900 244 Screw A20NHT • M6X25	Screw	A20NHT M6X25	2
17	11 588 719 Screw A20NHT • M6X60	Screw	A20NHT M6X60	1
18	12 592 401 Pipe A20NHT • OUTLET	Pipe	A20NHT OUTLET	1
19	90 537 379 O-ring A20NHT	O-ring	A20NHT	2
20	Temperature sensorIntake and exhaust system A20NHT	Temperature sensorIntake and exhaust system A20NHT

Pos.	Part No.	Description	Usage	Qty
1	12 630 084 Water pump A20NHT	Water pump	A20NHT	1
2	90 537 298 Chain gear A20NHT	Chain gear	A20NHT	1
3	11 518 061 Screw A20NHT • M6X13	Screw	A20NHT M6X13	3
4	90 537 623 Screw plug A20NHT	Screw plug	A20NHT	1
5	24 439 799 Gasket A20NHT	Gasket	A20NHT	1
6	24 446 365 Gasket A20NHT	Gasket	A20NHT	1
7	11 518 063 Screw A20NHT • M6X25	Screw	A20NHT M6X25	4
8	11 900 262 Screw A20NHT	Screw	A20NHT	2
9	11 589 253 Screw A20NHT • M8X105	Screw	A20NHT M8X105	2
10	12 605 853 Thermostat housing A20NHT	Thermostat housing	A20NHT	1
11	12 599 085 Connector A20NHT • INLET	Connector	A20NHT INLET	1
12	12 622 410 Thermostat A20NHT	Thermostat	A20NHT	1
13	35 22 676 Gasket A20NHT	Gasket	A20NHT	1
14	11 588 714 Screw A20NHT • M6X30	Screw	A20NHT M6X30	2
15	90 537 471 Gasket A20NHT	Gasket	A20NHT	1
16	11 900 244 Screw A20NHT • M6X25	Screw	A20NHT M6X25	2
17	11 588 719 Screw A20NHT • M6X60	Screw	A20NHT M6X60	1
18	12 592 401 Pipe A20NHT • OUTLET	Pipe	A20NHT OUTLET	1
19	90 537 379 O-ring A20NHT	O-ring	A20NHT	2
20	Temperature sensorIntake and exhaust system A20NHT	Temperature sensorIntake and exhaust system A20NHT
