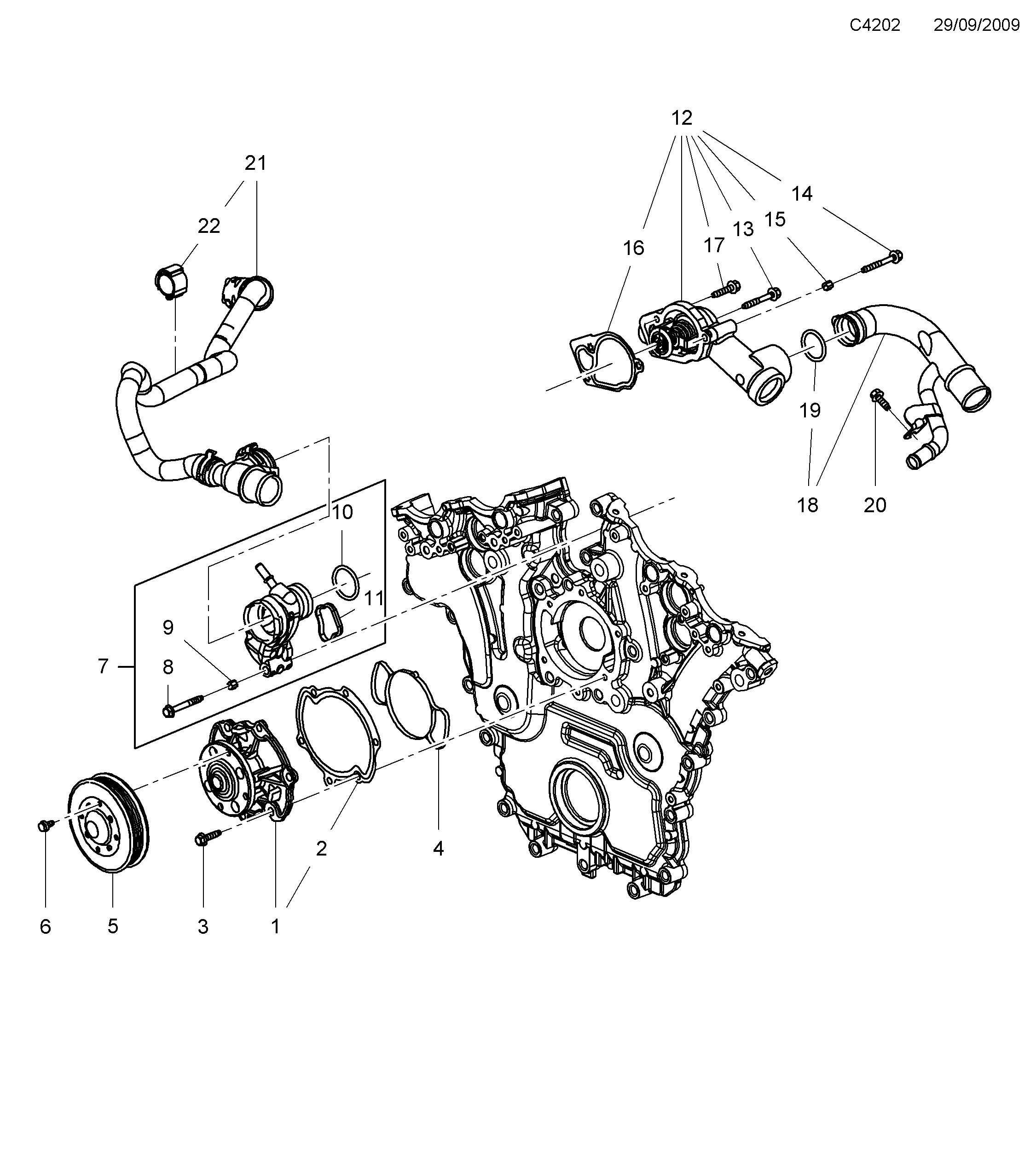

5810: Engine - Cooling system - Coolant pump - Thermostat
(2010 - 2012 | A28NER, A28NET) | For 9-5 (650) (2010)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 92 149 009 Water pump A28NER, A28NET | 1 | |
| 2 | 12 576 326 Gasket A28NER, A28NET | 1 | |
| 3 | 11 588 713 Hexagon screw A28NER, A28NET • M6X25 | 6 | |
| 4 | 12 593 045 Seal A28NER, A28NET | 1 | |
| 5 | 12 611 587 Pulley A28NER, A28NET • Water pump | 1 | |
| 6 | 11 588 940 Hexagon screw A28NER, A28NET • M6 x 12 | 4 | |
| 7 | 12 623 051 Reservoir A28NER, A28NET • Water Outlet | 1 | |
| 8 | 11 588 718 Hexagon screw A28NER, A28NET • M6X50 | 2 | |
| 9 | 12 570 372 Spacer piece A28NER, A28NET | 2 | |
| 10 | 12 584 040 O-ring A28NER, A28NET | 1 | |
| 11 | 12 566 429 Gasket A28NER, A28NET | 1 | |
| 12 | 12 608 657 Thermostat housing A28NER, A28NET | 1 | |
| 13 | 11 519 972 Hexagon screw A28NER, A28NET • M6X50 | 1 | |
| 14 | 11 519 973 Hexagon screw A28NER, A28NET • M6X60 | 1 | |
| 15 | 11 518 792 Sleeve A28NER, A28NET | 3 | |
| 16 | 12 625 923 Gasket A28NER, A28NET | 1 | |
| 17 | 11 519 968 Hexagon screw A28NER, A28NET • M6X30 | 1 | |
| 18 | 12 603 276 Pipe 2010-2010 • A28NET, A28NER | 1 | |
| 19 | 12 588 317 O-ring A28NER, A28NET | 1 | |
| 20 | 11 588 712 Screw A28NER, A28NET • M6X20 | 2 | |
| 21 | 13 315 207 Hose A28NER, A28NET | 1 | |
| 22 | 13 136 378 13 137 556 Clip A28NER, A28NET | 1 |
