Pos.	Part No.	Description	Usage	Qty
1	55 568 637 Water pump A20DTH, A20DTR	Water pump	A20DTH, A20DTR	1
2	93 179 115 Gasket A20DTH, A20DTR	Gasket	A20DTH, A20DTR	1
3	93 179 116 Screw A20DTH, A20DTR	Screw	A20DTH, A20DTR	3
4	55 566 104 Connector A20DTH, A20DTR	Connector	A20DTH, A20DTR	1
5	55 566 106 Gasket A20DTH, A20DTR	Gasket	A20DTH, A20DTR	1
6	55 566 107 Hollow screw A20DTH, A20DTR • M6X18	Hollow screw	A20DTH, A20DTR M6X18	1

Pos.	Part No.	Description	Usage	Qty
1	55 568 637 Water pump A20DTH, A20DTR	Water pump	A20DTH, A20DTR	1
2	93 179 115 Gasket A20DTH, A20DTR	Gasket	A20DTH, A20DTR	1
3	93 179 116 Screw A20DTH, A20DTR	Screw	A20DTH, A20DTR	3
4	55 566 104 Connector A20DTH, A20DTR	Connector	A20DTH, A20DTR	1
5	55 566 106 Gasket A20DTH, A20DTR	Gasket	A20DTH, A20DTR	1
6	55 566 107 Hollow screw A20DTH, A20DTR • M6X18	Hollow screw	A20DTH, A20DTR M6X18	1

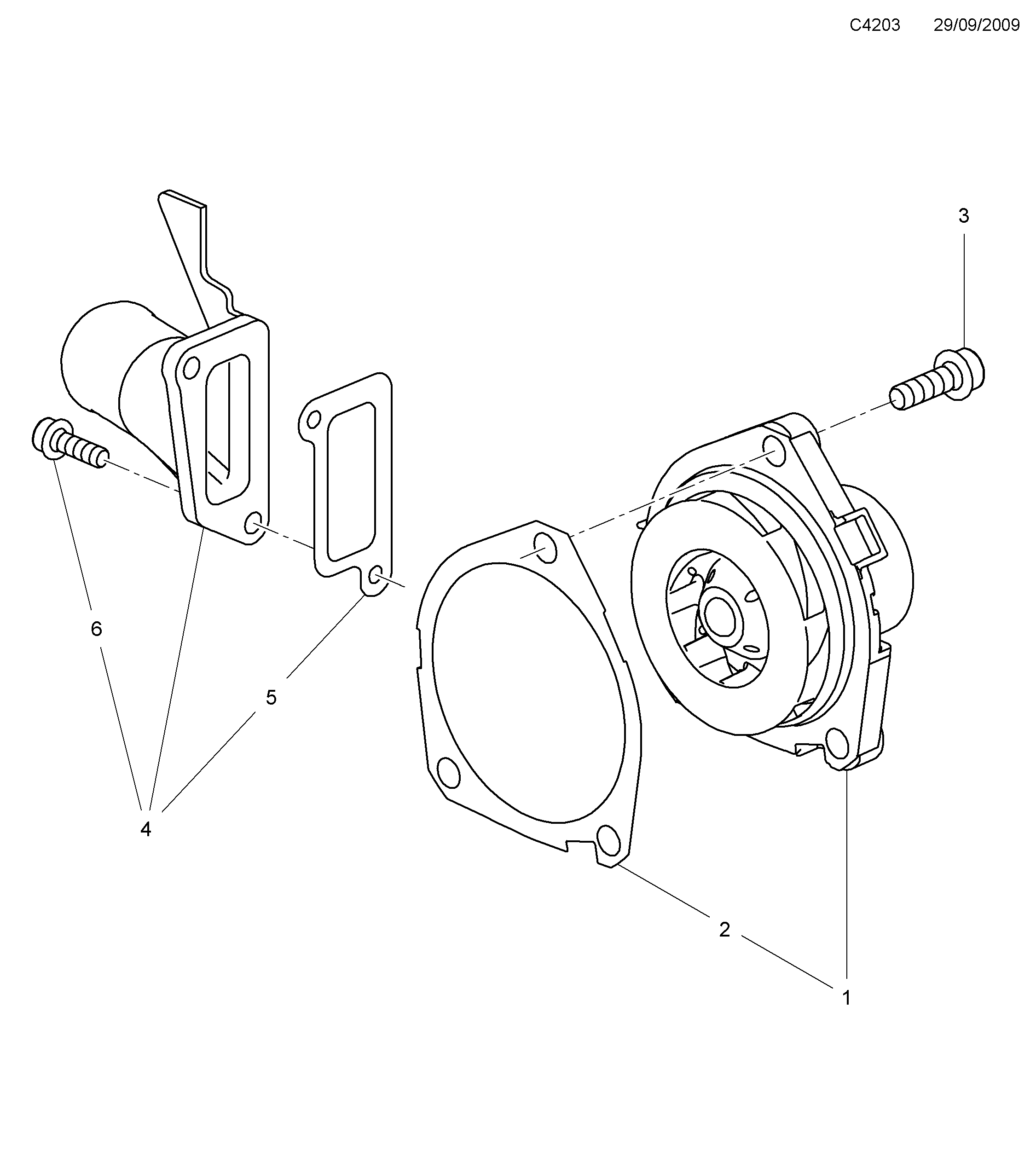

5825: Engine - Cooling system - Coolant pump - Thermostat
