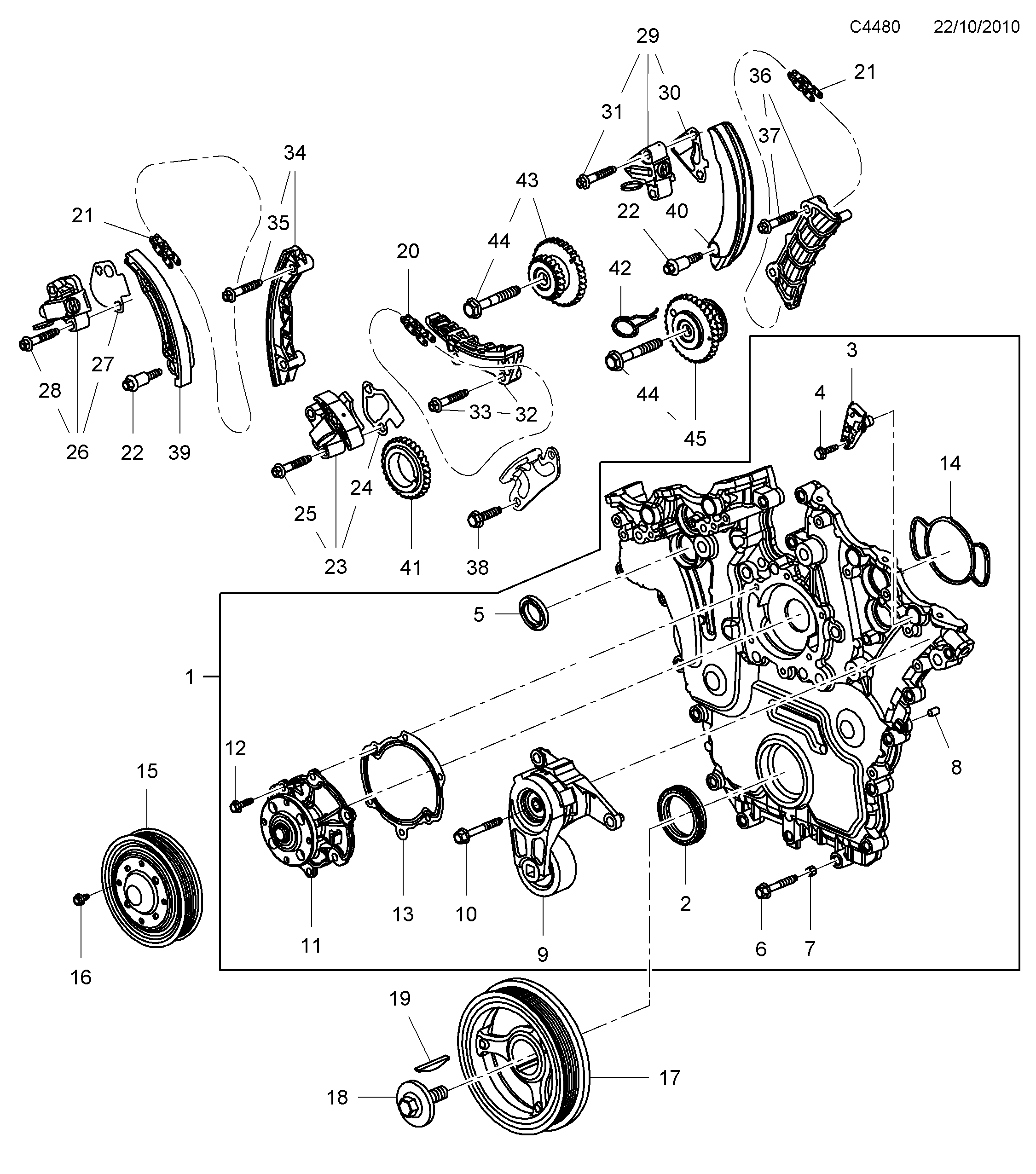

610: Engine - Short block - Transmission

(2010 - 2012 | A28NER, A28NET) | For 9-5 (650) (2010)

100%

(N°600)

Section 610

(N°625)

Pos.	Part No.	Description	Usage	Qty
1	12 623 400 Cover A28NER, A28NET • Complete	Cover	A28NER, A28NET Complete	1
2	12 608 750 Sealing ring A28NER, A28NET • FRONT \| Crankshaft	Sealing ring	A28NER, A28NET FRONT \| Crankshaft	1
3	Camshaft position sensorIntake and exhaust system A28NER, A28NET	Camshaft position sensorIntake and exhaust system A28NER, A28NET			1
4	BoltIntake and exhaust system A28NER, A28NET • Camshaft position sensor	BoltIntake and exhaust system A28NER, A28NET • Camshaft position sensor
5	12 593 717 O-ring A28NER, A28NET • Camshaft position sensor	O-ring	A28NER, A28NET Camshaft position sensor	4
6	11 588 728 Hexagon screw A28NER, A28NET • M8X50	Hexagon screw	A28NER, A28NET M8X50	22
7	11 588 327 Sleeve A28NER, A28NET	Sleeve	A28NER, A28NET	22
8	22 531 637 Pin A28NER, A28NET	Pin	A28NER, A28NET	2
9	12 575 509 Tension pulley A28NER, A28NET	Tension pulley	A28NER, A28NET	1
10	11 519 173 Hexagon screw A28NER, A28NET • M8x60	Hexagon screw	A28NER, A28NET M8x60	1
11	92 149 009 Water pump A28NER, A28NET	Water pump	A28NER, A28NET	1
12	11 588 713 Hexagon screw A28NER, A28NET • M6X25	Hexagon screw	A28NER, A28NET M6X25	6
13	12 576 326 Gasket A28NER, A28NET	Gasket	A28NER, A28NET	1
14	12 593 045 Seal A28NER, A28NET	Seal	A28NER, A28NET	1
15	12 611 587 Pulley A28NER, A28NET • Water pump	Pulley	A28NER, A28NET Water pump	1
16	11 588 940 Hexagon screw A28NER, A28NET • M6 x 12	Hexagon screw	A28NER, A28NET M6 x 12	4
17	12 626 355 Pulley A28NER, A28NET • Crankshaft	Pulley	A28NER, A28NET Crankshaft	1
18	11 569 873 Hexagon screw A28NER, A28NET • M14X48	Hexagon screw	A28NER, A28NET M14X48	1
19	12 601 937 Key A28NER, A28NET	Key	A28NER, A28NET	1
20	12 616 609 Timing chain A28NER, A28NET • Primary drive	Timing chain	A28NER, A28NET Primary drive	1
21	12 616 608 Timing chain A28NER, A28NET • Secondary drive	Timing chain	A28NER, A28NET Secondary drive	2
22	11 518 858 Hexagon screw A28NER, A28NET • M8X45	Hexagon screw	A28NER, A28NET M8X45	2
23	12 609 262 Chain tensioner A28NER, A28NET • Primary drive	Chain tensioner	A28NER, A28NET Primary drive	1
24	12 589 477 Gasket A28NER, A28NET	Gasket	A28NER, A28NET	1
25	11 588 255 Hexagon screw A28NER, A28NET • M8X45	Hexagon screw	A28NER, A28NET M8X45	1
26	12 609 258 Chain tensioner A28NER, A28NET • RH	Chain tensioner	A28NER, A28NET RH	1
27	12 589 479 Gasket A28NER, A28NET • RH	Gasket	A28NER, A28NET RH	1
28	11 588 255 Hexagon screw A28NER, A28NET • M8X45	Hexagon screw	A28NER, A28NET M8X45	1
29	12 609 260 Chain tensioner A28NER, A28NET • LH \| Secondary drive	Chain tensioner	A28NER, A28NET LH \| Secondary drive	1
30	12 589 478 Gasket A28NER, A28NET • LH	Gasket	A28NER, A28NET LH	1
31	11 588 255 Hexagon screw A28NER, A28NET • M8X45	Hexagon screw	A28NER, A28NET M8X45	1
32	12 597 417 Guide A28NER, A28NET • UPPER \| Primary drive	Guide	A28NER, A28NET UPPER \| Primary drive	1
33	11 588 255 Hexagon screw A28NER, A28NET • M8X45	Hexagon screw	A28NER, A28NET M8X45	1
34	12 600 462 Guide A28NER, A28NET • RH \| Secondary drive	Guide	A28NER, A28NET RH \| Secondary drive	1
35	11 588 255 Hexagon screw A28NER, A28NET • M8X45	Hexagon screw	A28NER, A28NET M8X45	1
36	12 600 461 Guide A28NER, A28NET • LH \| Secondary drive	Guide	A28NER, A28NET LH \| Secondary drive	1
37	11 588 255 Hexagon screw A28NER, A28NET • M8X45	Hexagon screw	A28NER, A28NET M8X45	1
38	11 588 725 Hexagon screw A28NER, A28NET • M8X35	Hexagon screw	A28NER, A28NET M8X35	2
39	12 586 961 Guide A28NER, A28NET • RH \| Secondary drive	Guide	A28NER, A28NET RH \| Secondary drive	1
40	12 586 960 Guide A28NER, A28NET • LH \| Secondary drive	Guide	A28NER, A28NET LH \| Secondary drive	1
41	12 599 721 Chain gear A28NER, A28NET • Crankshaft	Chain gear	A28NER, A28NET Crankshaft	1
42	12 599 725 Spring A28NER, A28NET • Crankshaft	Spring	A28NER, A28NET Crankshaft	1
43	12 612 838 Idler gear A28NER, A28NET • RH \| Camshaft	Idler gear	A28NER, A28NET RH \| Camshaft	1
44	11 588 252 Special screw A28NER, A28NET • M10X 67	Special screw	A28NER, A28NET M10X 67	1
45	12 600 459 Idler gear A28NER, A28NET • LH \| Camshaft	Idler gear	A28NER, A28NET LH \| Camshaft	1
