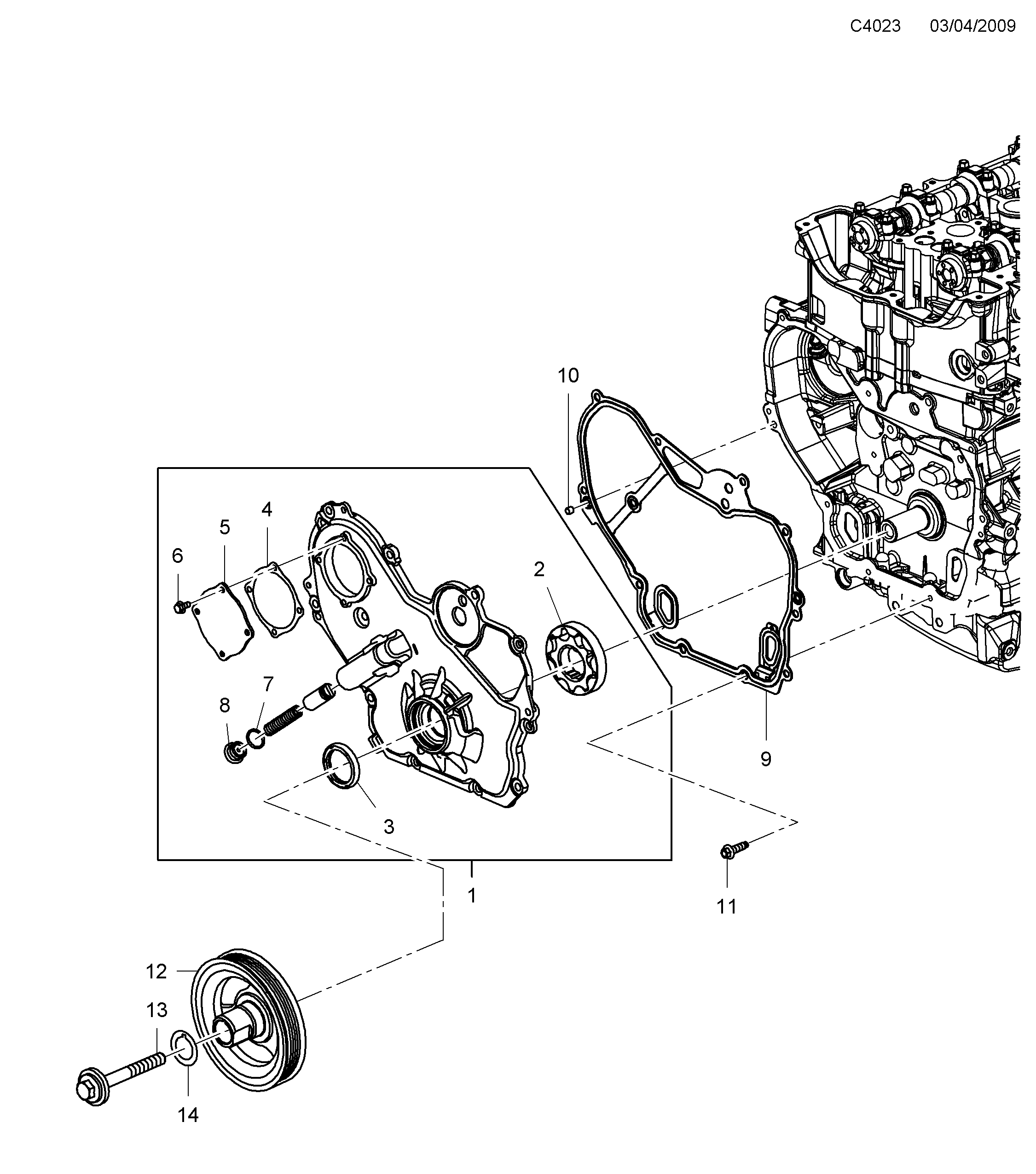

800: Engine - Lubricating system - Oil pump
(2010 - 2012 | A20NHT) | For 9-5 (650) (2010)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 637 040 Cover A20NHT | 1 | |
| 2 | 24 434 093 Pump kit A20NHT | 1 | |
| 3 | 90 571 925 Seal A20NHT | 1 | |
| 4 | 90 537 915 Gasket A20NHT | 1 | |
| 5 | 90 537 266 Cover A20NHT | 1 | |
| 6 | 11 518 061 Screw A20NHT • M6X13 | 4 | |
| 7 | 11 093 042 Seal A20NHT | 1 | |
| 8 | 12 582 068 Screw plug A20NHT | 1 | |
| 9 | 24 435 052 Gasket A20NHT | 1 | |
| 10 | 22 531 637 Pin A20NHT | 2 | |
| 11 | 11 588 724 Screw A20NHT • M8X30 | 10 | |
| 12 | 12 583 151 Pulley A20NHT | 1 | |
| 13 | 11 589 123 Hexagon screw A20NHT • M14X116 | 1 | |
| 14 | 12 611 099 Washer A20NHT | 1 |
