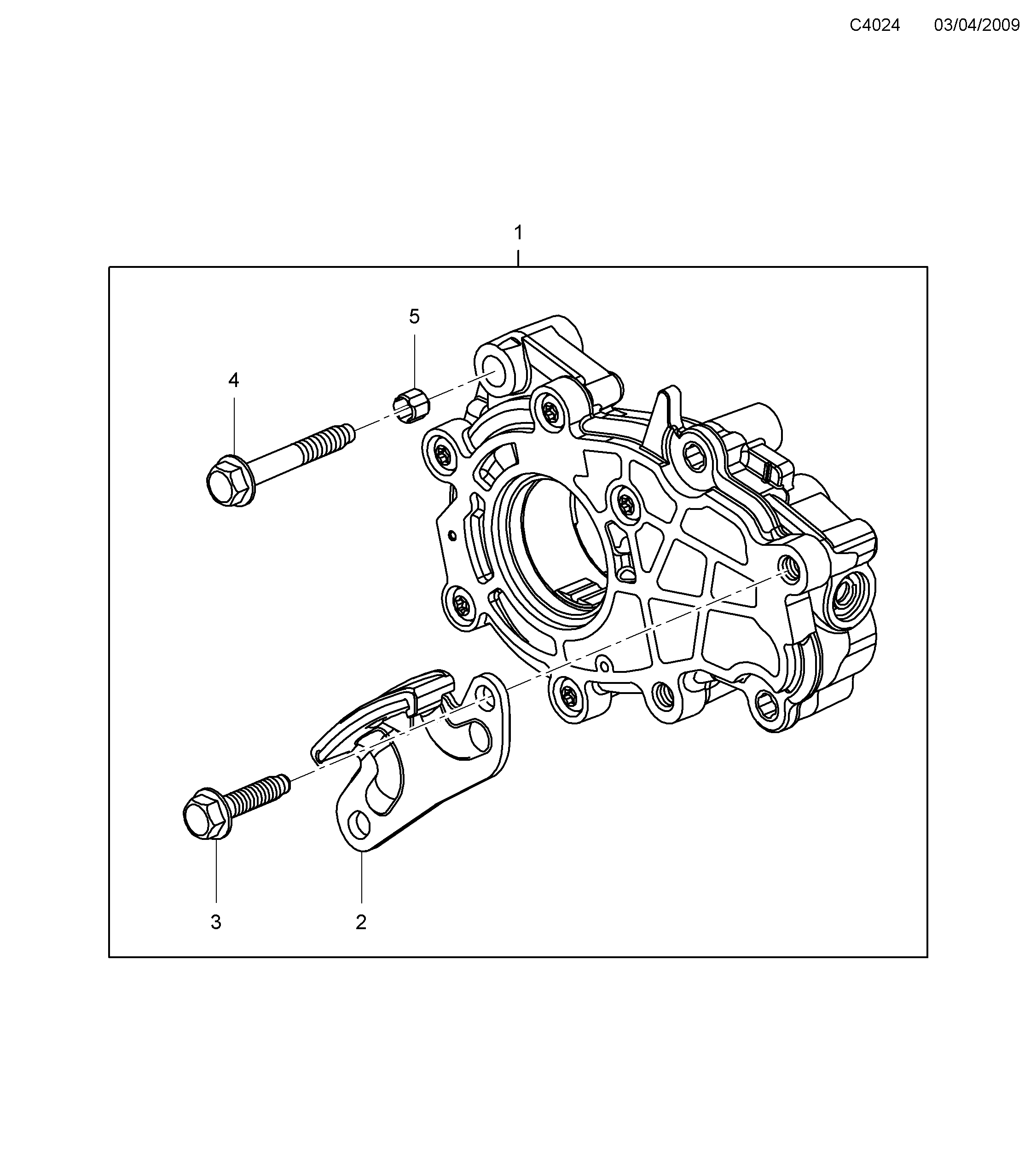

Pos.	Part No.	Description	Usage	Qty
1	12 590 152 Oil pump A28NER, A28NET	Oil pump	A28NER, A28NET	1
2	12 586 959 Guide A28NER, A28NET • Not as separate spare...	Guide	A28NER, A28NET Not as separate spare...	1
3	11 588 725 Hexagon screw A28NER, A28NET • M8X35	Hexagon screw	A28NER, A28NET M8X35	2
4	11 588 729 Hexagon screw A28NER, A28NET • M8X55	Hexagon screw	A28NER, A28NET M8X55	3
5	11 588 327 Sleeve A28NER, A28NET	Sleeve	A28NER, A28NET	3

Pos.	Part No.	Description	Usage	Qty
1	12 590 152 Oil pump A28NER, A28NET	Oil pump	A28NER, A28NET	1
2	12 586 959 Guide A28NER, A28NET • Not as separate spare...	Guide	A28NER, A28NET Not as separate spare...	1
3	11 588 725 Hexagon screw A28NER, A28NET • M8X35	Hexagon screw	A28NER, A28NET M8X35	2
4	11 588 729 Hexagon screw A28NER, A28NET • M8X55	Hexagon screw	A28NER, A28NET M8X55	3
5	11 588 327 Sleeve A28NER, A28NET	Sleeve	A28NER, A28NET	3

810: Engine - Lubricating system - Oil pump
