Pos.	Part No.	Description	Usage	Qty
1	55 566 000 Oil pump A20DTH, A20DTR	Oil pump	A20DTH, A20DTR	1
2	93 180 736 Gasket A20DTH, A20DTR	Gasket	A20DTH, A20DTR	1
3	93 180 737 Seal A20DTH, A20DTR	Seal	A20DTH, A20DTR	1
4	93 177 743 Screw A20DTH, A20DTR • M6X35	Screw	A20DTH, A20DTR M6X35	3
5	93 177 832 Screw A20DTH, A20DTR • M6X22	Screw	A20DTH, A20DTR M6X22	5

Pos.	Part No.	Description	Usage	Qty
1	55 566 000 Oil pump A20DTH, A20DTR	Oil pump	A20DTH, A20DTR	1
2	93 180 736 Gasket A20DTH, A20DTR	Gasket	A20DTH, A20DTR	1
3	93 180 737 Seal A20DTH, A20DTR	Seal	A20DTH, A20DTR	1
4	93 177 743 Screw A20DTH, A20DTR • M6X35	Screw	A20DTH, A20DTR M6X35	3
5	93 177 832 Screw A20DTH, A20DTR • M6X22	Screw	A20DTH, A20DTR M6X22	5

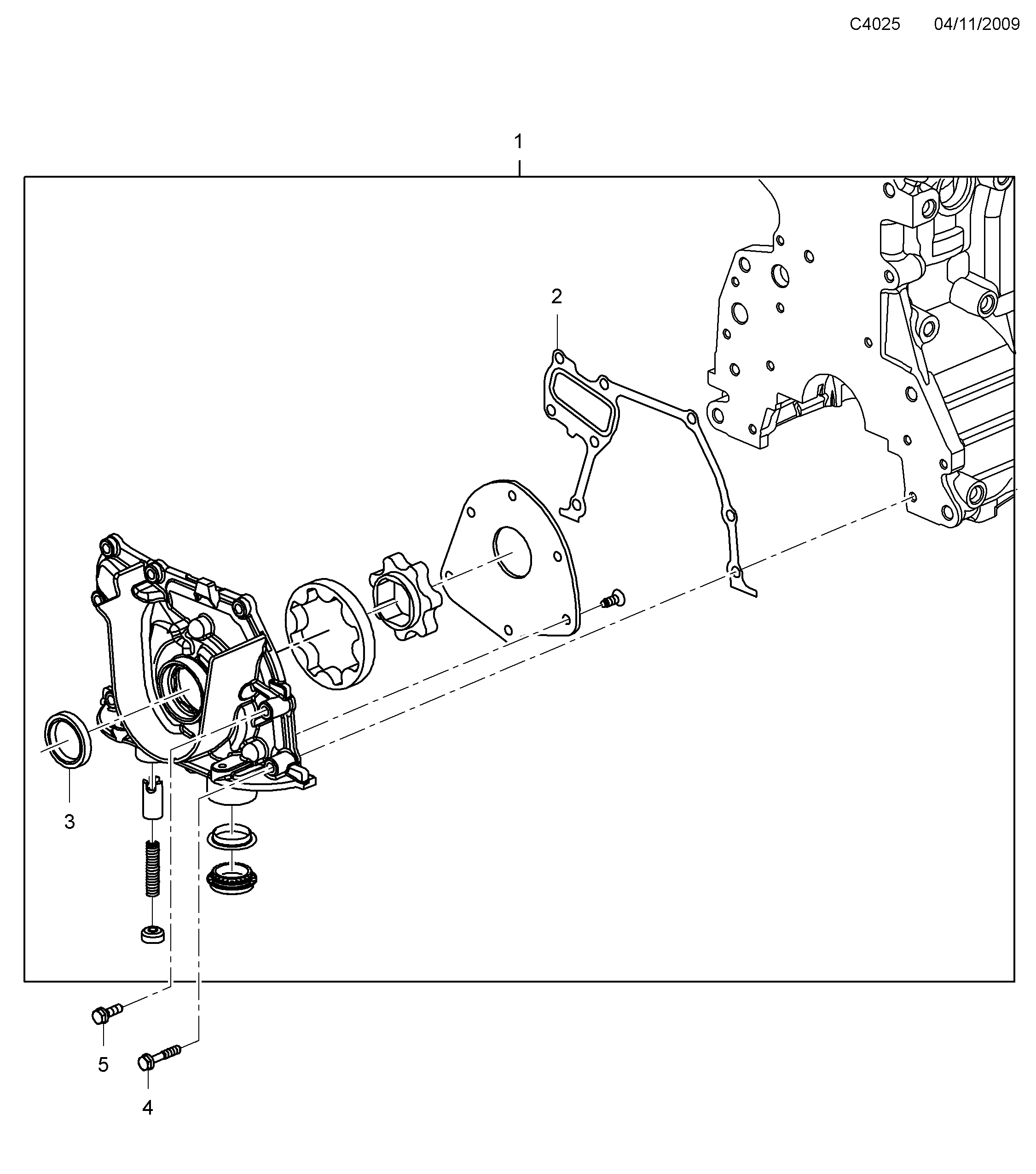

825: Engine - Lubricating system - Oil pump
