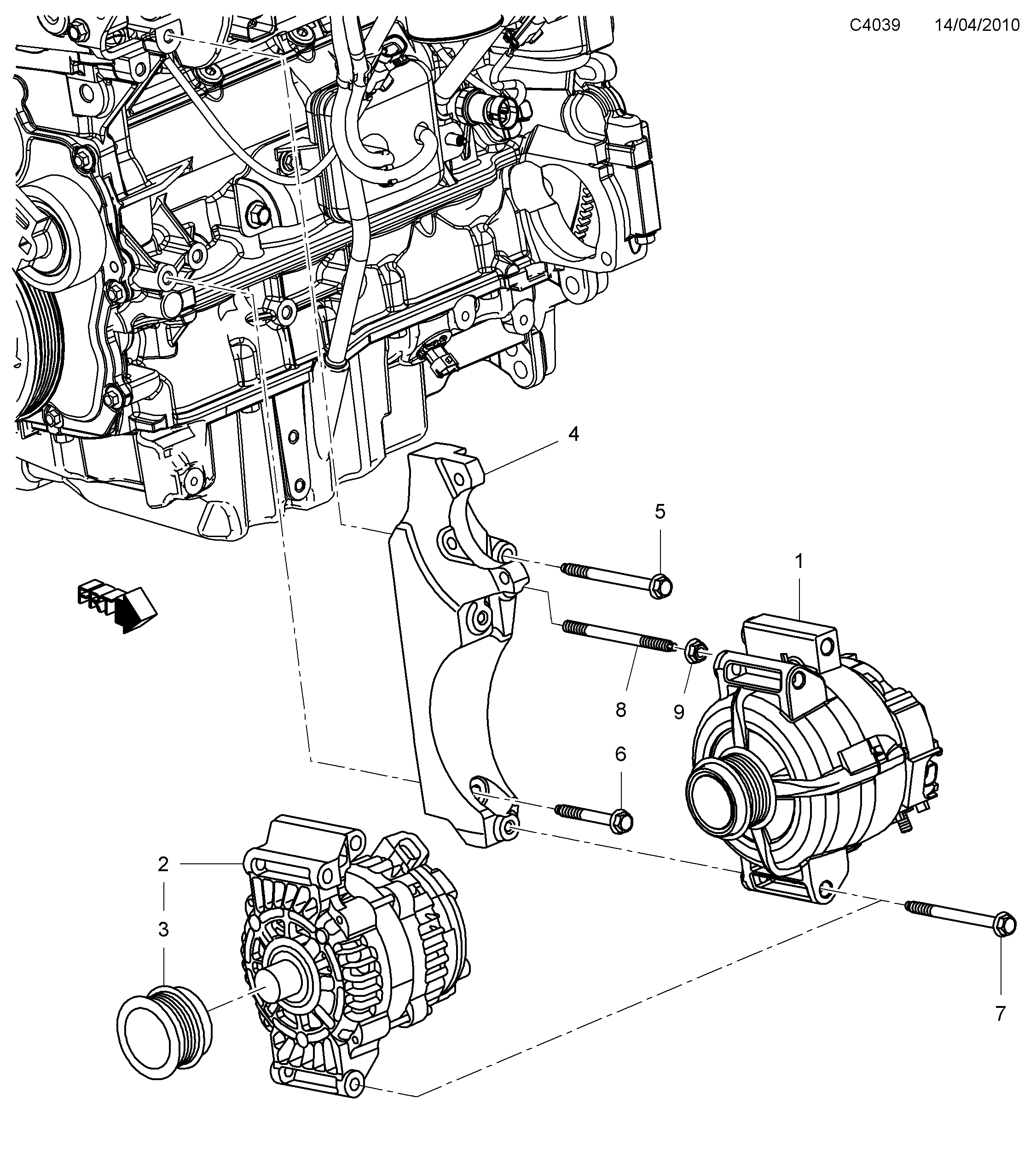

200: Electrical, general - Generator
(2010 - 2012 | A20NHT) | For 9-5 (650) (2010)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 500 331 Generator A20NHT • 120 A | 1 | |
| 1 | 13 502 591 Generator A20NHT • 120 A | 1 | |
| 1 | 13 500 332 Generator A20NHT • 140 A | 1 | |
| 1 | 13 502 590 Generator A20NHT • 140 A | 1 | |
| 2 | 13 502 592 Generator A20NHT • 100 A | 1 | |
| 3 | 55 568 445 Pulley A20NHT • Used with 100 A... | 1 | |
| 4 | 12 628 024 Bracket A20NHT | 1 | |
| 5 | 11 588 735 Screw A20NHT • M8x100 | 2 | |
| 6 | 11 588 731 Screw A20NHT • M8X65 | 1 | |
| 7 | 11 588 735 Screw A20NHT | 2 | |
| 8 | 11 561 936 Stud A20NHT | 1 | |
| 9 | 11 514 596 Hexagon nut A20NHT | 1 |
