Question 1

Where to find the exploded diagram for Engine bay cover on my Saab 9-5 (650) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Engine bay cover on Saab 9-5 (650) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Engine bay cover?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Engine bay cover?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Engine bay cover, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Engine bay cover suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

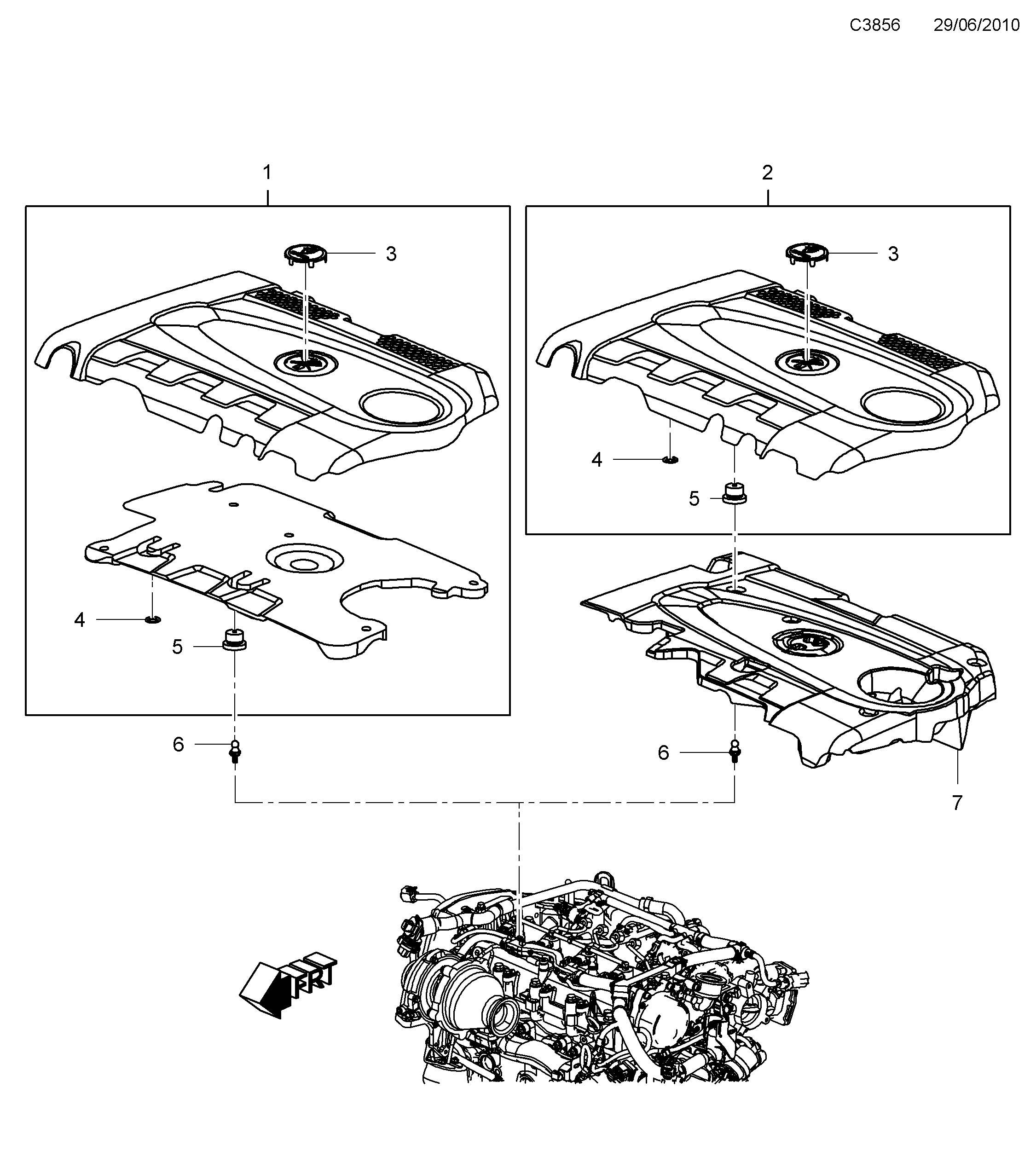

Pos.	Part No.	Description	Usage	Qty
2	55 576 413 Cover 2011-2011 • A20DTH, A20DTR	Cover	2011-2011 A20DTH, A20DTR	1
3	55 565 033 Emblem A20DTH, A20DTR	Emblem	A20DTH, A20DTR	1
4	55 568 742 Washer A20DTH, A20DTR	Washer	A20DTH, A20DTR	5
5	24 453 627 Retainer A20DTH, A20DTR	Retainer	A20DTH, A20DTR	4
6	55 560 110 Ball stud A20DTH, A20DTR	Ball stud	A20DTH, A20DTR	4
7	55 577 133 Damper mat 2011-2011 • A20DTH, A20DTR	Damper mat	2011-2011 A20DTH, A20DTR	1

Pos.	Part No.	Description	Usage	Qty
2	55 576 413 Cover 2011-2011 • A20DTH, A20DTR	Cover	2011-2011 A20DTH, A20DTR	1
3	55 565 033 Emblem A20DTH, A20DTR	Emblem	A20DTH, A20DTR	1
4	55 568 742 Washer A20DTH, A20DTR	Washer	A20DTH, A20DTR	5
5	24 453 627 Retainer A20DTH, A20DTR	Retainer	A20DTH, A20DTR	4
6	55 560 110 Ball stud A20DTH, A20DTR	Ball stud	A20DTH, A20DTR	4
7	55 577 133 Damper mat 2011-2011 • A20DTH, A20DTR	Damper mat	2011-2011 A20DTH, A20DTR	1

1025: Engine - Engine bay cover
