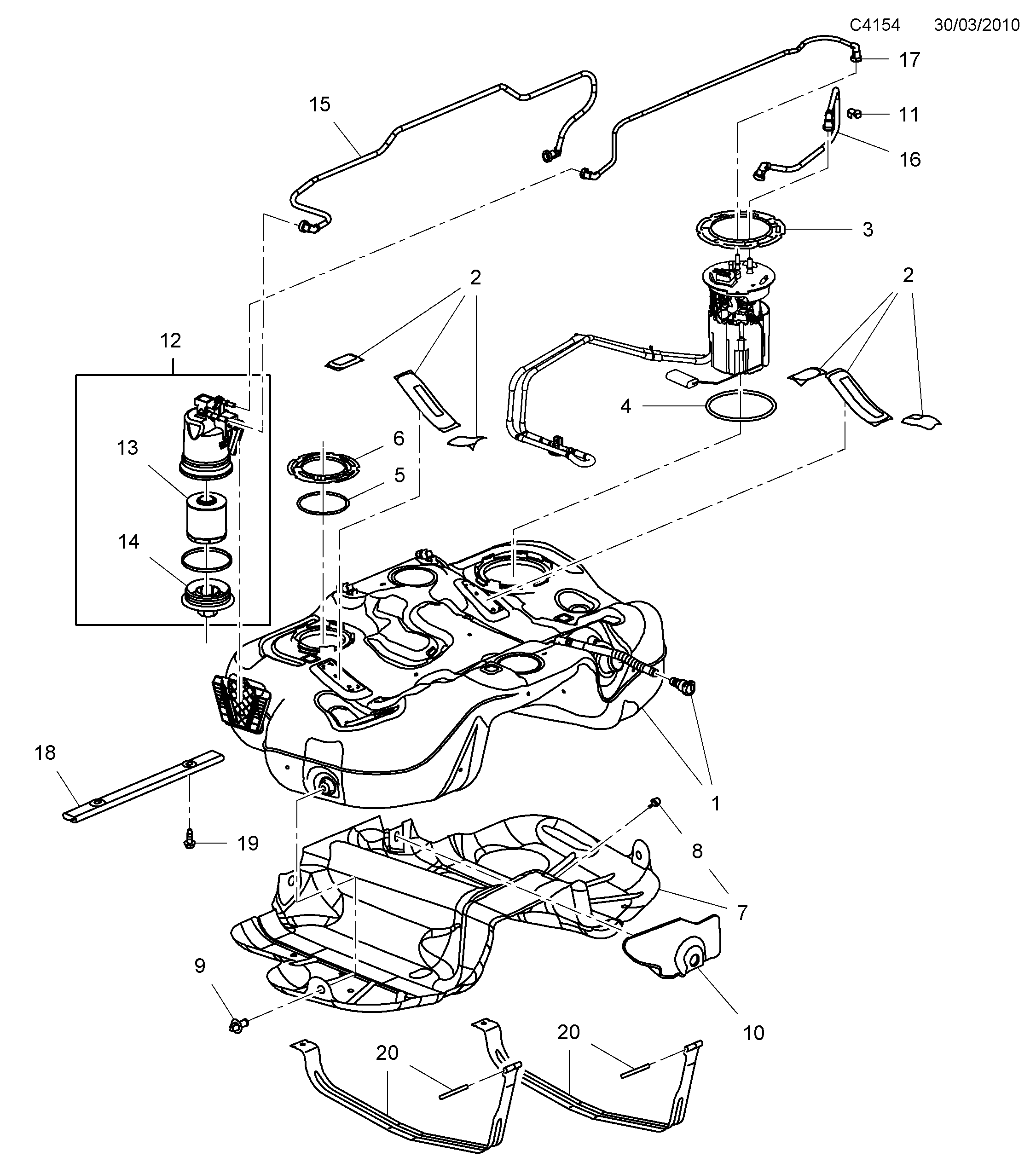

2150: Engine - Fuel system - Fuel tank
(2010 - 2012 | A20DTH, A20DTR) | For 9-5 (650) (2011)
With All Wheel Drive (XWD)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 251 871 Fuel reservoir A20DTH, A20DTR | 1 | |
| 2 | 13 263 372 Insulation A20DTH, A20DTR • Fuel tank | 4 | |
| 3 | 10 325 852 Cam A20DTH, A20DTR • Fuel pump | 1 | |
| 4 | 22 682 111 O-ring A20DTH, A20DTR • Fuel pump | 1 | |
| 5 | 15 776 433 Sealing ring A20DTH, A20DTR • Fuel pump | 1 | |
| 6 | 15 776 431 Retainer A20DTH, A20DTR • Fuel pump | 1 | |
| 7 | 13 273 477 Heat shield A20DTH, A20DTR | 1 | |
| 8 | 13 273 528 Spacer piece A20DTH, A20DTR • Heat shield | 2 | |
| 9 | 22 718 369 Plastic rivet A20DTH, A20DTR • Heat shield | 3 | |
| 10 | 13 182 612 Insulator A20DTH, A20DTR • Heat shield Lower | 1 | |
| 11 | 24 413 499 Clamp A20DTH, A20DTR • Vent pipe | 1 | |
| 12 | 13 244 294 Filter A20DTH, A20DTR | 1 | |
| 13 | 13 263 262 Fuel filter A20DTH, A20DTR | 1 | |
| 14 | 13 263 263 Retainer A20DTH, A20DTR | 1 | |
| 15 | 13 251 874 Fuel pipe A20DTH, A20DTR • REAR | Fuel filter... | 1 | |
| 16 | 13 251 877 Return line A20DTH, A20DTR • REAR | Fuel sender... | 1 | |
| 17 | 13 251 873 Fuel pipe A20DTH, A20DTR • REAR | Pump fuel... | 1 | |
| 18 | 13 238 468 Protection A20DTH, A20DTR | 1 | |
| 19 | 11 588 738 Hexagon screw A20DTH, A20DTR • M10X30 | X | |
| 20 | 13 238 465 Tensioning band A20DTH, A20DTR | 2 |
