Question 1

Where to find the exploded diagram for Fuel system on my Saab 9-5 (650) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-5 (650) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	13 294 607 Pipe, fuel filler A20NHT, A28NER, A28NET • H-Arm rear suspension EMISSION...	Pipe, fuel filler	A20NHT, A28NER, A28NET H-Arm rear suspension EMISSION...	1
1	13 314 013 Pipe, fuel filler A20DTH, A20DTR • H-Arm rear suspension EMISSION...	Pipe, fuel filler	A20DTH, A20DTR H-Arm rear suspension EMISSION...	1
2	11 519 375 Screw M6X19 \| Filler pipe...	Screw	M6X19 \| Filler pipe...	4
3	13 322 576 Pipe, fuel filler A20NHT, A28NER, A28NET • EMISSION SYSTEM CALIFORNIA, LEV2...	Pipe, fuel filler	A20NHT, A28NER, A28NET EMISSION SYSTEM CALIFORNIA, LEV2...	1
4	13 314 014 Pipe, fuel filler A20DTH, A20DTR • 4-Link rear suspension EMISSION...	Pipe, fuel filler	A20DTH, A20DTR 4-Link rear suspension EMISSION...	1
5	12 783 571 Pipe, fuel filler A20NFT • EMISSION SYSTEM EEC 09...	Pipe, fuel filler	A20NFT EMISSION SYSTEM EEC 09...	1
6	13 294 626 Filler cap A20NHT, A28NER, A28NET • EMISSION SYSTEM EEC 09	Filler cap	A20NHT, A28NER, A28NET EMISSION SYSTEM EEC 09	1
6	13 294 625 Filler cap A20DTH, A20DTR	Filler cap	A20DTH, A20DTR	1
6	12 842 119 Filler cap A20NHT, A28NER, A28NET • EMISSION SYSTEM CALIFORNIA, LEV2...	Filler cap	A20NHT, A28NER, A28NET EMISSION SYSTEM CALIFORNIA, LEV2...	1
7	11 609 585 Screw M6X20	Screw	M6X20	1

Pos.	Part No.	Description	Usage	Qty
1	13 294 607 Pipe, fuel filler A20NHT, A28NER, A28NET • H-Arm rear suspension EMISSION...	Pipe, fuel filler	A20NHT, A28NER, A28NET H-Arm rear suspension EMISSION...	1
1	13 314 013 Pipe, fuel filler A20DTH, A20DTR • H-Arm rear suspension EMISSION...	Pipe, fuel filler	A20DTH, A20DTR H-Arm rear suspension EMISSION...	1
2	11 519 375 Screw M6X19 \| Filler pipe...	Screw	M6X19 \| Filler pipe...	4
3	13 322 576 Pipe, fuel filler A20NHT, A28NER, A28NET • EMISSION SYSTEM CALIFORNIA, LEV2...	Pipe, fuel filler	A20NHT, A28NER, A28NET EMISSION SYSTEM CALIFORNIA, LEV2...	1
4	13 314 014 Pipe, fuel filler A20DTH, A20DTR • 4-Link rear suspension EMISSION...	Pipe, fuel filler	A20DTH, A20DTR 4-Link rear suspension EMISSION...	1
5	12 783 571 Pipe, fuel filler A20NFT • EMISSION SYSTEM EEC 09...	Pipe, fuel filler	A20NFT EMISSION SYSTEM EEC 09...	1
6	13 294 626 Filler cap A20NHT, A28NER, A28NET • EMISSION SYSTEM EEC 09	Filler cap	A20NHT, A28NER, A28NET EMISSION SYSTEM EEC 09	1
6	13 294 625 Filler cap A20DTH, A20DTR	Filler cap	A20DTH, A20DTR	1
6	12 842 119 Filler cap A20NHT, A28NER, A28NET • EMISSION SYSTEM CALIFORNIA, LEV2...	Filler cap	A20NHT, A28NER, A28NET EMISSION SYSTEM CALIFORNIA, LEV2...	1
7	11 609 585 Screw M6X20	Screw	M6X20	1

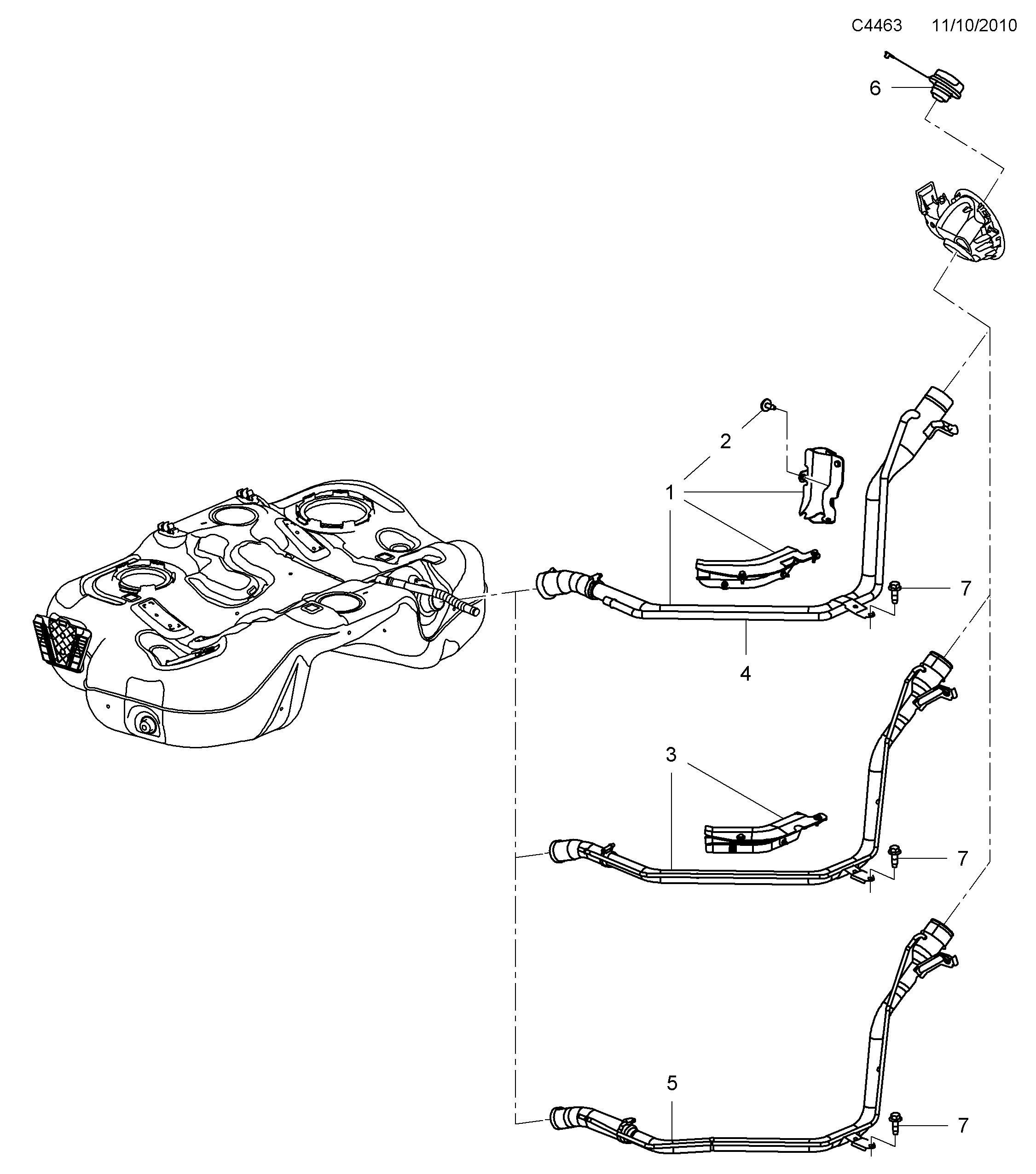

3200: Engine - Fuel system - Filler pipe
