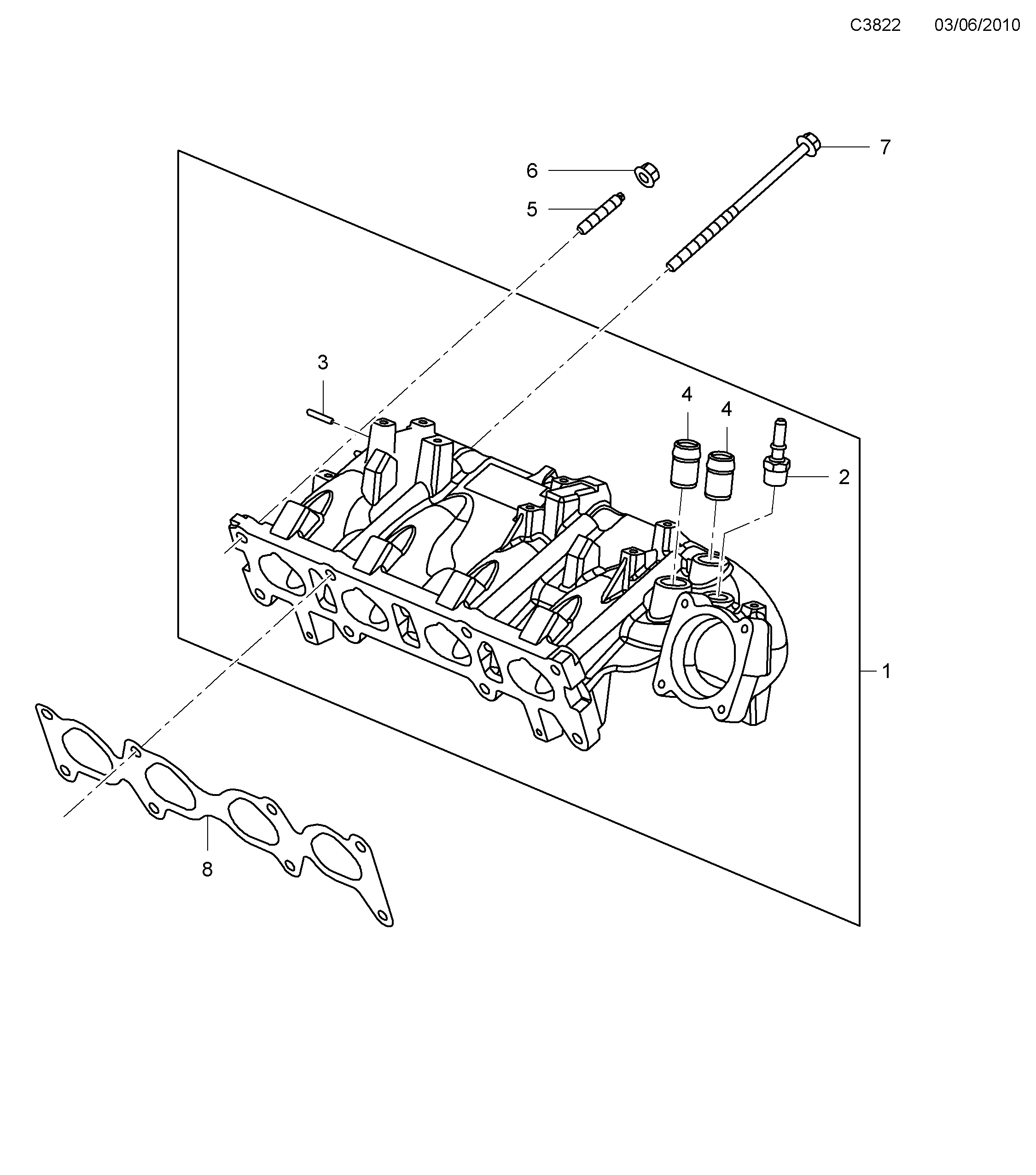

3795: Engine - Intake and exhaust system - Inlet pipe
(2011 - 2012 | A20NFT, A16LET) | For 9-5 (650) (2011)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 55 355 607 Intake manifold A20NFT, A16LET | 1 | |
| 2 | 90 498 943 Nipple A20NFT, A16LET | 1 | |
| 3 | 55 563 540 Vacuum pipe A20NFT, A16LET | 2 | |
| 4 | 55 556 015 Connector A20NFT, A16LET | 2 | |
| 5 | 24 454 371 Bolt A20NFT, A16LET • M8x40 | 3 | |
| 6 | 11 900 440 Hexagon nut A20NFT, A16LET • M8 | 3 | |
| 7 | 11 098 171 Hexagon screw A20NFT, A16LET • M8X150 | 5 | |
| 8 | 55 355 614 Gasket A20NFT, A16LET | 1 |
