Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-5 (650) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-5 (650) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
2	12 622 668 Gasket A20NFT, A16LET	Gasket	A20NFT, A16LET	1
3	12 605 167 Heat shield A20NFT, A16LET	Heat shield	A20NFT, A16LET	1
4	24 418 771 Stud A20NFT, A16LET	Stud	A20NFT, A16LET	12
5	90 424 073 Nut A20NFT, A16LET • M8	Nut	A20NFT, A16LET M8	1
6	11 588 723 Screw A20NFT, A16LET • M8 X 25	Screw	A20NFT, A16LET M8 X 25	3
7	11 516 076 Nut A20NFT, A16LET • M8	Nut	A20NFT, A16LET M8	9
8	11 609 953 Bolt A20NFT, A16LET	Bolt	A20NFT, A16LET	4

Pos.	Part No.	Description	Usage	Qty
2	12 622 668 Gasket A20NFT, A16LET	Gasket	A20NFT, A16LET	1
3	12 605 167 Heat shield A20NFT, A16LET	Heat shield	A20NFT, A16LET	1
4	24 418 771 Stud A20NFT, A16LET	Stud	A20NFT, A16LET	12
5	90 424 073 Nut A20NFT, A16LET • M8	Nut	A20NFT, A16LET M8	1
6	11 588 723 Screw A20NFT, A16LET • M8 X 25	Screw	A20NFT, A16LET M8 X 25	3
7	11 516 076 Nut A20NFT, A16LET • M8	Nut	A20NFT, A16LET M8	9
8	11 609 953 Bolt A20NFT, A16LET	Bolt	A20NFT, A16LET	4

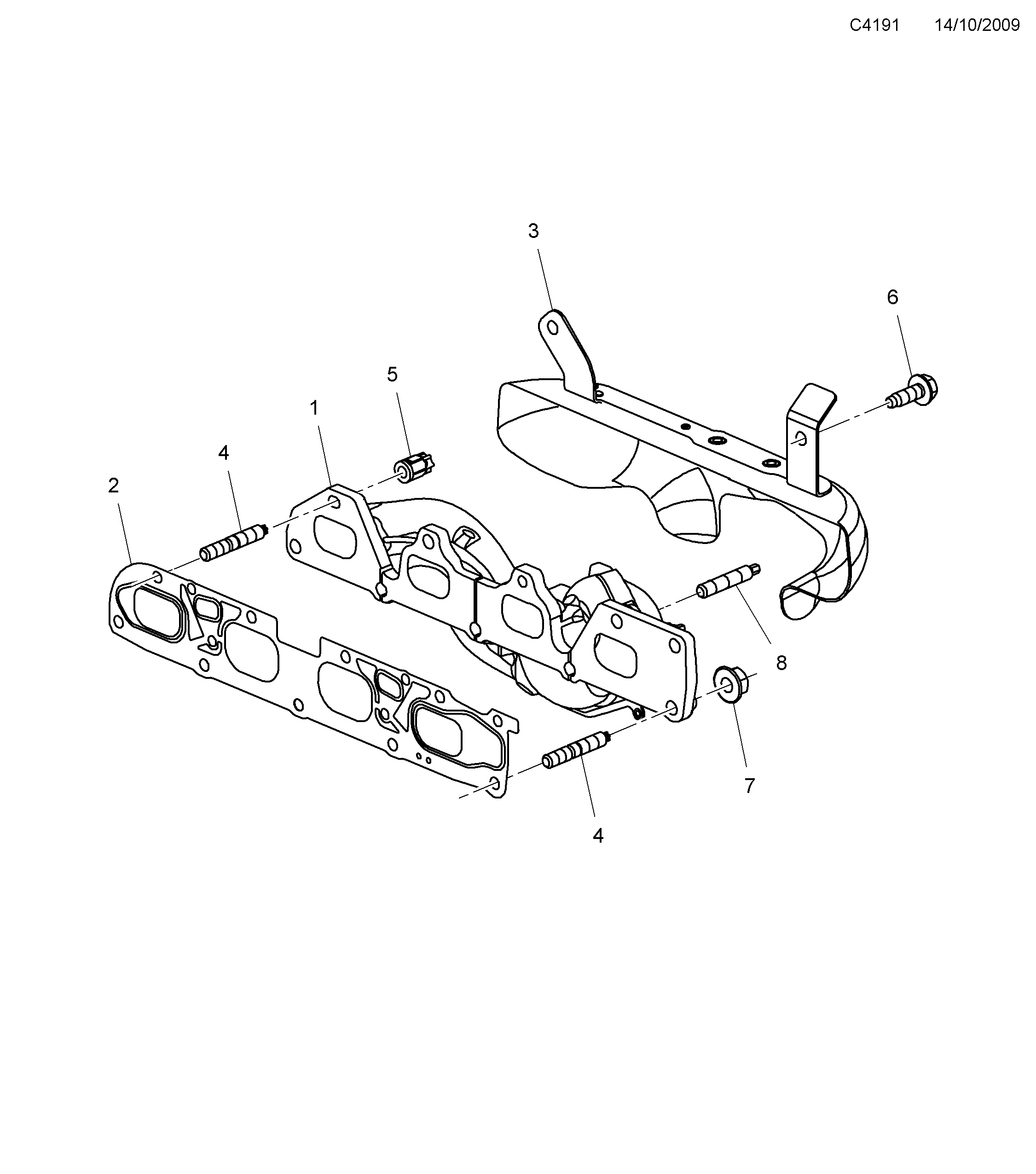

4200: Engine - Intake and exhaust system - Exhaust manifold
