Where to find the exploded diagram for Cooling system on my Saab 9-5 (650) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Cooling system on Saab 9-5 (650) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Cooling system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty

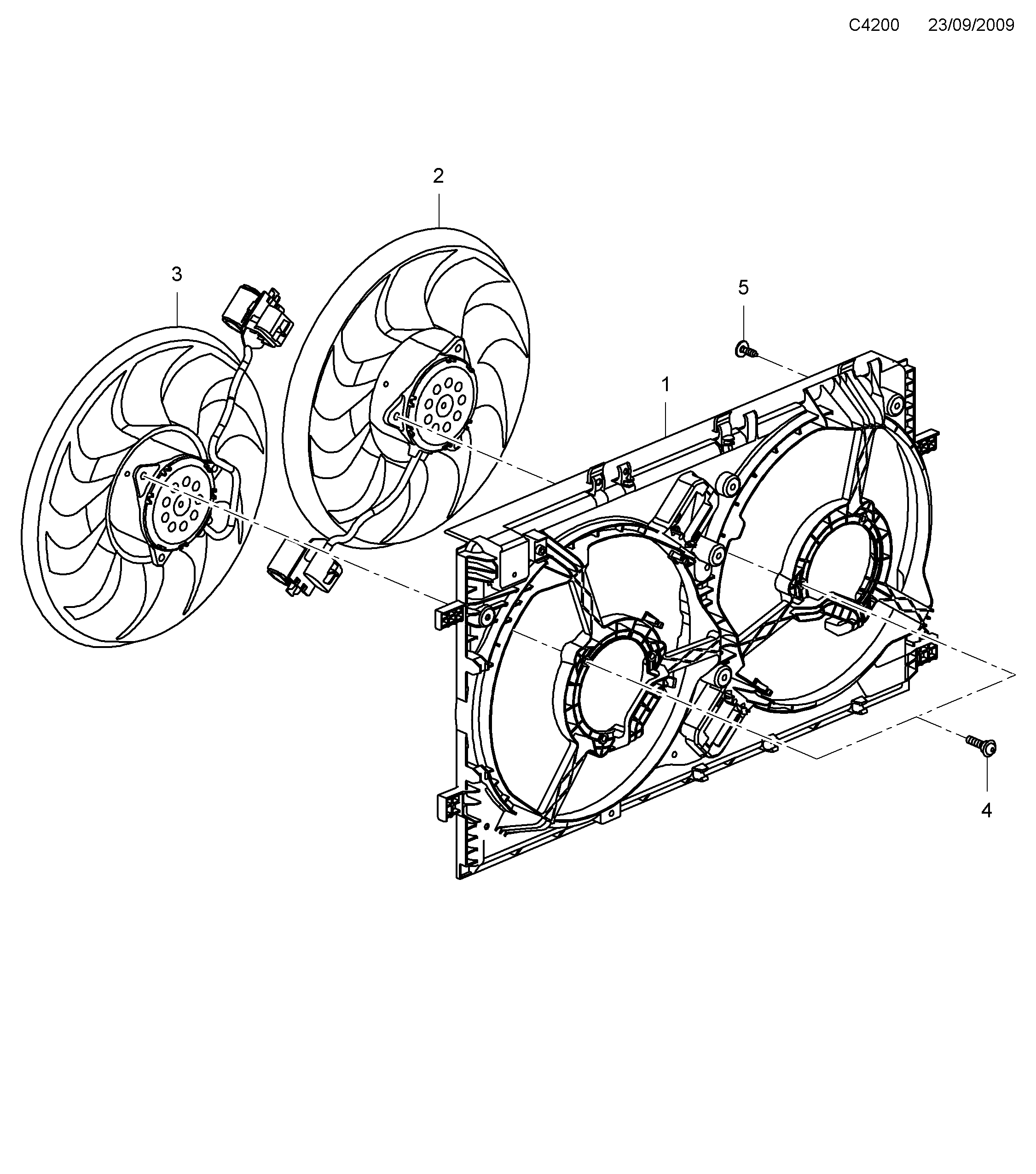

1	13 241 739 Fan shroud A20DTH, A20DTR	Fan shroud	A20DTH, A20DTR	1
2	13 241 735 Fan 2011-2011 • A20DTH, A20DTR • LH	Fan	2011-2011 A20DTH, A20DTR LH	1
2	13 300 194 Fan A20DTH • LH	Fan	A20DTH LH	1
3	13 300 195 Fan A20DTH, A20DTR • RH	Fan	A20DTH, A20DTR RH	1
4	13 278 312 Screw A20DTH, A20DTR	Screw	A20DTH, A20DTR	6
5	90 561 306 Screw A20DTH, A20DTR • cooling fan	Screw	A20DTH, A20DTR cooling fan	1

Pos.	Part No.	Description	Usage	Qty
1	13 241 739 Fan shroud A20DTH, A20DTR	Fan shroud	A20DTH, A20DTR	1
2	13 241 735 Fan 2011-2011 • A20DTH, A20DTR • LH	Fan	2011-2011 A20DTH, A20DTR LH	1
2	13 300 194 Fan A20DTH • LH	Fan	A20DTH LH	1
3	13 300 195 Fan A20DTH, A20DTR • RH	Fan	A20DTH, A20DTR RH	1
4	13 278 312 Screw A20DTH, A20DTR	Screw	A20DTH, A20DTR	6
5	90 561 306 Screw A20DTH, A20DTR • cooling fan	Screw	A20DTH, A20DTR cooling fan	1
