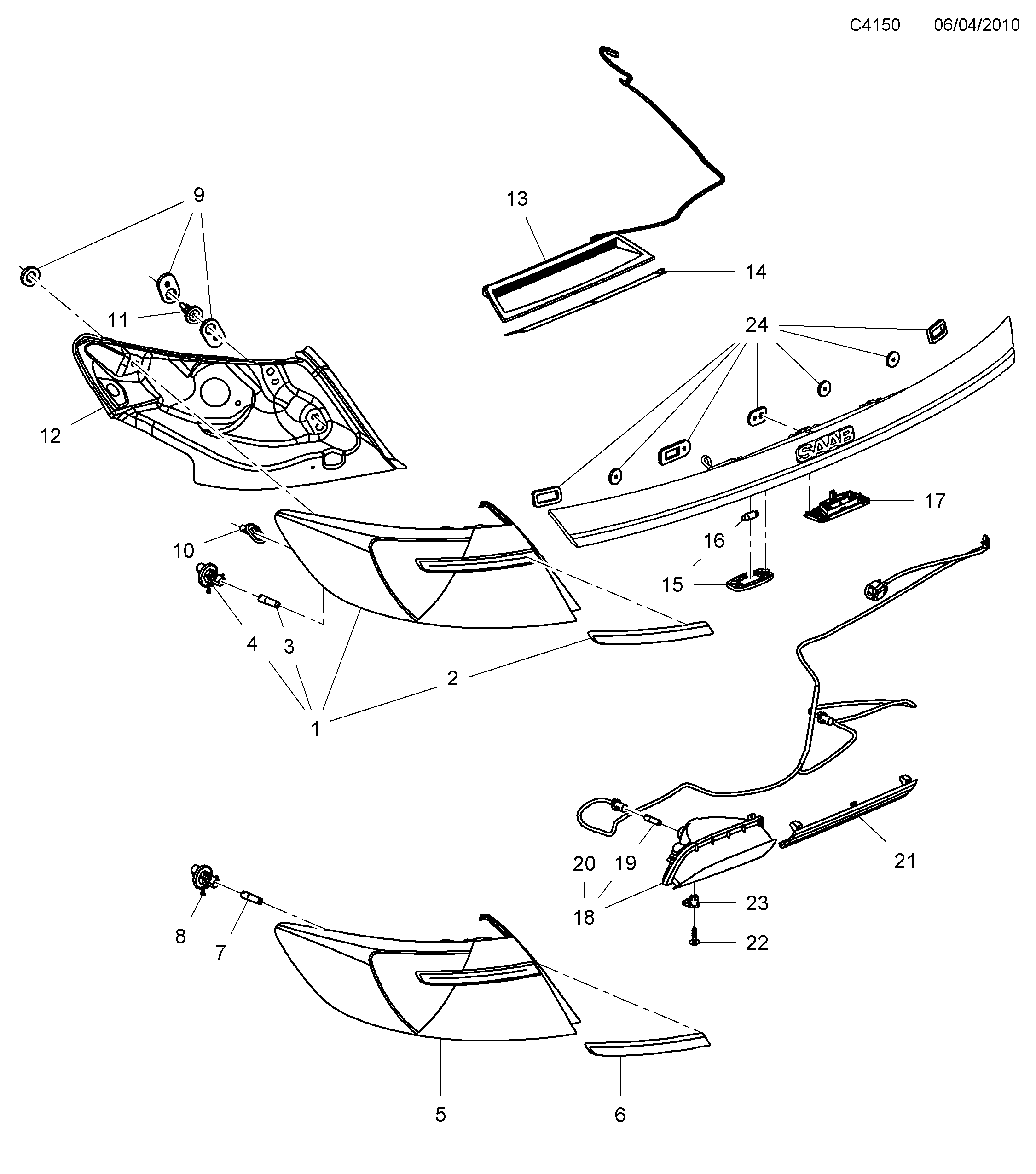

2000: Electrical, general - Lighting - Tail lamp
(2010 - 2012) | For 9-5 (650) (2011)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 776 357 Tail lamp LHD • LH | 1 | |
| 1 | 12 776 358 Tail lamp LHD • RH | 1 | |
| 2 | 13 320 954 Plate LH, CHROME | 1 | |
| 2 | 13 320 955 Plate RH, CHROME | 1 | |
| 3 | 13 283 265 Bulb H21W | X | |
| 4 | 13 320 956 Socket, bulb | X | |
| 5 | 13 320 949 Housing LHD • LH | 1 | |
| 5 | 13 320 950 Housing LHD • RH | 1 | |
| 5 | 13 320 951 Housing RHD • LH | 1 | |
| 5 | 13 320 952 Housing RHD • RH | 1 | |
| 6 | 13 320 954 Plate LH, CHROME | 1 | |
| 6 | 13 320 955 Plate RH, CHROME | 1 | |
| 7 | 13 283 265 Bulb H21W | X | |
| 8 | 13 320 956 Socket, bulb | X | |
| 9 | 13 320 957 Gasket kit | 1 | |
| 10 | 12 846 131 Plug, locking M5 | 2 | |
| 11 | 11 609 872 Nut M5 | 6 | |
| 12 | 13 339 514 13 354 974 Insert LH | 1 | |
| 12 | 13 339 515 13 354 975 Insert RH | 1 | |
| 13 | 13 299 395 Auxiliary brake lamp Jet Black For standard... | 1 | |
| 13 | 13 299 397 Auxiliary brake lamp Jet Black For dark... | 1 | |
| 14 | 12 824 059 Insulation Auxiliary brake lamp | 1 | |
| 15 | 13 321 836 Licence plate lamp | 1 | |
| 16 | 93 190 473 Bulb | 1 | |
| 17 | 13 321 834 Switch Boot lid | 1 | |
| 18 | 12 783 332 Fog light LHD • LH | 1 | |
| 18 | 12 783 333 Fog light LHD • RH | 1 | |
| 18 | 12 842 880 Fog light RHD • LH | 1 | |
| 18 | 12 842 881 Fog light RHD • RH | 1 | |
12 824 080 Bezel LHD • LH | 1 | ||
12 824 081 Bezel LHD • RH | 1 | ||
12 824 083 Bezel RHD • LH | 1 | ||
12 824 082 Bezel RHD • RH | 1 | ||
| 19 | 13 283 265 Bulb H21W | 1 | |
| 20 | 13 320 996 Cable harness | 1 | |
| 21 | 12 842 883 Cover | 1 | |
| 22 | 90 561 305 Screw 5X20 | 2 | |
| 23 | 24 449 408 Nut | 2 | |
| 24 | 13 321 835 Gasket kit Tail lamp Number plate... | 1 |
