Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9-5 (650) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9-5 (650) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	13 299 355 Spindle frame LHD	Spindle frame	LHD	1
1	13 299 356 Spindle frame RHD	Spindle frame	RHD	1
2	13 282 464 Screw M6 X 1.0 X...	Screw	M6 X 1.0 X...	1
3	13 282 465 Screw M6 X 1.0 X...	Screw	M6 X 1.0 X...	1
4	11 570 279 Hexagon screw LHD • M6x30	Hexagon screw	LHD M6x30	1
5	13 299 357 Electric motor LHD	Electric motor	LHD	1
5	13 299 358 Electric motor RHD	Electric motor	RHD	1
6	13 277 079 Screw M6X14 \| Wiper motor	Screw	M6X14 \| Wiper motor	3
7	13 299 359 Wiper arm LHD • LH	Wiper arm	LHD LH	1
8	13 299 360 Wiper arm LHD • RH	Wiper arm	LHD RH	1
7	13 299 361 Wiper arm RHD • RH	Wiper arm	RHD RH	1
8	13 299 362 Wiper arm RHD • LH	Wiper arm	RHD LH	1
9	11 609 634 Nut Wiper arm	Nut	Wiper arm	2
10	10 341 324 Cap blanking LHD • Wiper arm	Cap blanking	LHD Wiper arm	X
11	13 342 283 Wiper blade LHD • L=525/600 MM \| Kit	Wiper blade	LHD L=525/600 MM \| Kit	1
11	13 342 284 Wiper blade RHD • L=525/600 MM \| Kit	Wiper blade	RHD L=525/600 MM \| Kit	1

Pos.	Part No.	Description	Usage	Qty
1	13 299 355 Spindle frame LHD	Spindle frame	LHD	1
1	13 299 356 Spindle frame RHD	Spindle frame	RHD	1
2	13 282 464 Screw M6 X 1.0 X...	Screw	M6 X 1.0 X...	1
3	13 282 465 Screw M6 X 1.0 X...	Screw	M6 X 1.0 X...	1
4	11 570 279 Hexagon screw LHD • M6x30	Hexagon screw	LHD M6x30	1
5	13 299 357 Electric motor LHD	Electric motor	LHD	1
5	13 299 358 Electric motor RHD	Electric motor	RHD	1
6	13 277 079 Screw M6X14 \| Wiper motor	Screw	M6X14 \| Wiper motor	3
7	13 299 359 Wiper arm LHD • LH	Wiper arm	LHD LH	1
8	13 299 360 Wiper arm LHD • RH	Wiper arm	LHD RH	1
7	13 299 361 Wiper arm RHD • RH	Wiper arm	RHD RH	1
8	13 299 362 Wiper arm RHD • LH	Wiper arm	RHD LH	1
9	11 609 634 Nut Wiper arm	Nut	Wiper arm	2
10	10 341 324 Cap blanking LHD • Wiper arm	Cap blanking	LHD Wiper arm	X
11	13 342 283 Wiper blade LHD • L=525/600 MM \| Kit	Wiper blade	LHD L=525/600 MM \| Kit	1
11	13 342 284 Wiper blade RHD • L=525/600 MM \| Kit	Wiper blade	RHD L=525/600 MM \| Kit	1

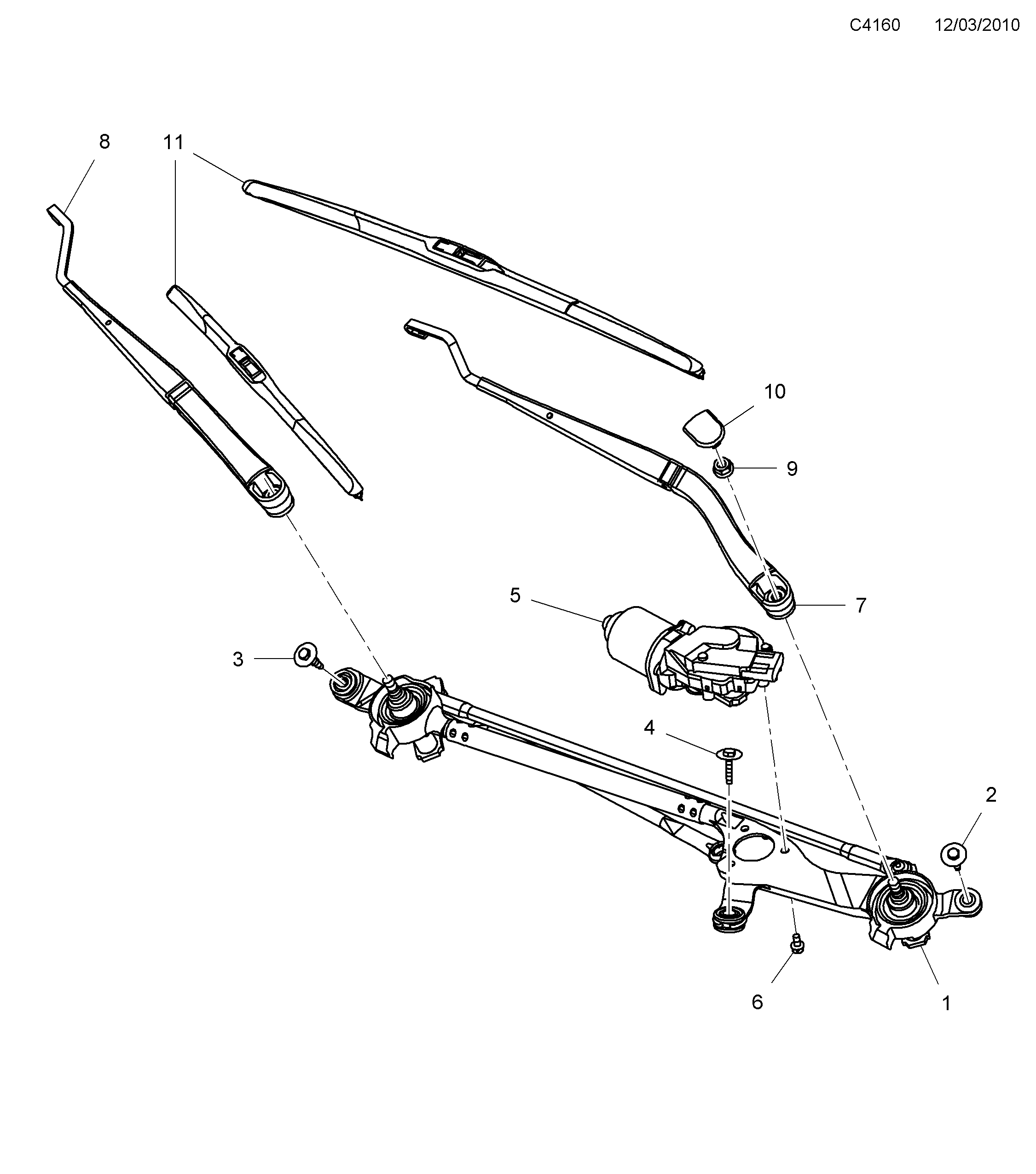

2500: Electrical, general - Electric equipment, other - Windscreen wiper
