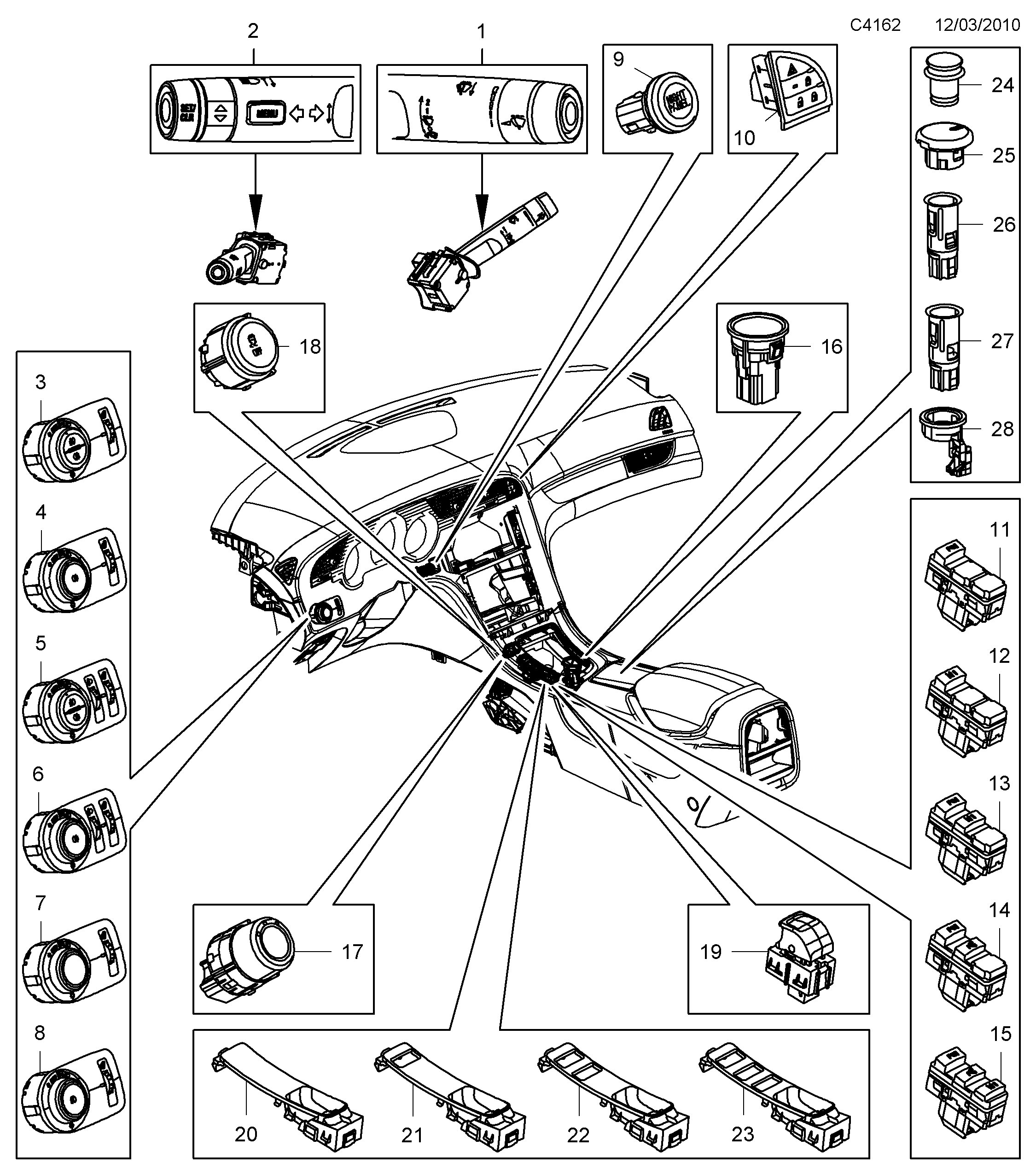

2700: Electrical, general - Electric equipment, other - Switch - Instrument panel

(2010 - 2012) | For 9-5 (650) (2011)

100%

(N°2600)

Section 2700

(N°2800)

Pos.	Part No.	Description	Usage	Qty
1	95 994 799 Switch 2011-2011 • Windscreen wiper Jet Black	Switch	2011-2011 Windscreen wiper Jet Black	1
1	20 964 884 Switch 2011-2011 • Windscreen wiper Cocoa	Switch	2011-2011 Windscreen wiper Cocoa	1
2	20 941 129 Switch 2011-2011 • direction indicators Jet Black	Switch	2011-2011 direction indicators Jet Black	1
2	20 964 880 Switch 2011-2011 • direction indicators Cocoa	Switch	2011-2011 direction indicators Cocoa	1
3	12 772 186 Switch LHD • lighting Jet Black front...	Switch	LHD lighting Jet Black front...	1
3	12 848 389 Light switch headlamp LHD • lighting Cocoa/Light Neutral front...	Light switch headlamp	LHD lighting Cocoa/Light Neutral front...	1
4	12 772 192 Switch LHD • lighting Jet Black rear...	Switch	LHD lighting Jet Black rear...	1
4	12 848 388 Light switch headlamp LHD • lighting Cocoa/Light Neutral rear...	Light switch headlamp	LHD lighting Cocoa/Light Neutral rear...	1
5	13 286 920 Switch LHD • lighting front fog-light rear...	Switch	LHD lighting front fog-light rear...	1
5	12 848 391 Light switch headlamp LHD • lighting Cocoa/Light Neutral front...	Light switch headlamp	LHD lighting Cocoa/Light Neutral front...	1
6	13 286 922 Switch LHD • lighting Jet Black rear...	Switch	LHD lighting Jet Black rear...	1
6	12 848 390 Light switch headlamp LHD • lighting Cocoa/Light Neutral rear...	Light switch headlamp	LHD lighting Cocoa/Light Neutral rear...	1
7	13 296 091 Switch LHD • lighting Without front fog-light...	Switch	LHD lighting Without front fog-light...	1
7	12 848 393 Light switch headlamp LHD • lighting Cocoa/Light Neutral Without...	Light switch headlamp	LHD lighting Cocoa/Light Neutral Without...	1
8	13 296 092 Switch LHD • lighting front fog-light Without...	Switch	LHD lighting front fog-light Without...	1
8	12 848 392 Light switch headlamp LHD • lighting Cocoa/Light Neutral front...	Light switch headlamp	LHD lighting Cocoa/Light Neutral front...	1
3	12 777 330 Switch RHD • lighting front fog-light rear...	Switch	RHD lighting front fog-light rear...	1
4	12 777 328 Switch RHD • lighting rear fog-light Without...	Switch	RHD lighting rear fog-light Without...	1
5	13 286 915 Switch RHD • lighting front fog-light rear...	Switch	RHD lighting front fog-light rear...	1
6	13 286 913 Switch RHD • lighting rear fog light...	Switch	RHD lighting rear fog light...	1
9	25 783 440 Switch Instrument panel	Switch	Instrument panel	1
10	13 329 350 Switch LHD • hazard flashing light Jet...	Switch	LHD hazard flashing light Jet...	1
10	13 332 760 Switch LHD • hazard flashing light Cocoa/Light...	Switch	LHD hazard flashing light Cocoa/Light...	1
10	13 329 351 Switch RHD • hazard flashing light Jet...	Switch	RHD hazard flashing light Jet...	1
11	13 312 919 Switch With front, rear parking...	Switch	With front, rear parking...	1
12	13 312 922 Switch Without parking assistance With...	Switch	Without parking assistance With...	1
13	13 312 918 Switch With front, rear parking...	Switch	With front, rear parking...	1
14	13 312 921 Switch With front, rear and...	Switch	With front, rear and...	1
15	13 312 920 Switch With front, rear and...	Switch	With front, rear and...	1
16	12 768 560 Switch	Switch		1
17	13 295 002 Switch Transmission Sport mode	Switch	Transmission Sport mode	1
18	25 992 776 Switch Traction control	Switch	Traction control	1
19	12 768 548 Switch Electric park brake	Switch	Electric park brake	1
20	13 305 239 Cover Jet Black Without switch	Cover	Jet Black Without switch	1
21	13 305 245 Cover Jet Black With 1...	Cover	Jet Black With 1...	1
22	13 305 241 Cover Jet Black With 2...	Cover	Jet Black With 2...	1
23	13 305 243 Cover Jet Black With 3...	Cover	Jet Black With 3...	1
24	12 785 425 Cover Cigarette lighter	Cover	Cigarette lighter	1
25	13 504 000 Retaining ring Power outlet	Retaining ring	Power outlet	1
25	13 504 492 Retaining ring Power outlet	Retaining ring	Power outlet	1
26	13 502 522 Cigarette lighter socket Cigarette lighter	Cigarette lighter socket	Cigarette lighter	1
27	13 502 523 Cigarette lighter socket Cigarette lighter	Cigarette lighter socket	Cigarette lighter	1
27	12 823 803 Receptacle housing 2011-2011 • Power outlet luggage compartment	Receptacle housing	2011-2011 Power outlet luggage compartment	1
28	13 502 520 Retainer Cigarette lighter	Retainer	Cigarette lighter	1
