Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9-5 (650) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9-5 (650) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	13 257 497 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	1
2	13 240 954 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	1
3	11 589 015 Plate screw M4X20	Plate screw	M4X20	2
4	11 561 629 Press nut M4	Press nut	M4	2
5	13 240 950 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	2
6	13 264 618 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
7	13 240 949 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	2
8	25 854 027 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
9	11 589 012 Screw M4X25 \| Front door	Screw	M4X25 \| Front door	2
10	11 570 654 Press nut	Press nut		2
11	13 240 948 20 967 782 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	2
12	15 911 768 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
13	11 589 012 Screw M4X25 \| Rear door	Screw	M4X25 \| Rear door	2
14	13 264 617 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
15	13 265 079 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
16	13 283 217 Cover moulding Rear loudspeaker	Cover moulding	Rear loudspeaker	2
17	11 589 012 Screw M4X25	Screw	M4X25	6
18	12 821 870 Amplifier For cars with 11...	Amplifier	For cars with 11...	1
19	13 283 216 Bracket For cars with 11...	Bracket	For cars with 11...	1
20	11 519 377 Hexagon screw M6X25 \| For cars...	Hexagon screw	M6X25 \| For cars...	2
21	11 900 451 Nut M6X25 \| For cars...	Nut	M6X25 \| For cars...	3
M6				M6 Click to open

Pos.	Part No.	Description	Usage	Qty
1	13 257 497 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	1
2	13 240 954 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	1
3	11 589 015 Plate screw M4X20	Plate screw	M4X20	2
4	11 561 629 Press nut M4	Press nut	M4	2
5	13 240 950 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	2
6	13 264 618 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
7	13 240 949 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	2
8	25 854 027 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
9	11 589 012 Screw M4X25 \| Front door	Screw	M4X25 \| Front door	2
10	11 570 654 Press nut	Press nut		2
11	13 240 948 20 967 782 Loudspeaker For cars with 9...	Loudspeaker	For cars with 9...	2
12	15 911 768 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
13	11 589 012 Screw M4X25 \| Rear door	Screw	M4X25 \| Rear door	2
14	13 264 617 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
15	13 265 079 Loudspeaker For cars with 11...	Loudspeaker	For cars with 11...	2
16	13 283 217 Cover moulding Rear loudspeaker	Cover moulding	Rear loudspeaker	2
17	11 589 012 Screw M4X25	Screw	M4X25	6
18	12 821 870 Amplifier For cars with 11...	Amplifier	For cars with 11...	1
19	13 283 216 Bracket For cars with 11...	Bracket	For cars with 11...	1
20	11 519 377 Hexagon screw M6X25 \| For cars...	Hexagon screw	M6X25 \| For cars...	2
21	11 900 451 Nut M6X25 \| For cars...	Nut	M6X25 \| For cars...	3
M6				M6 Click to open

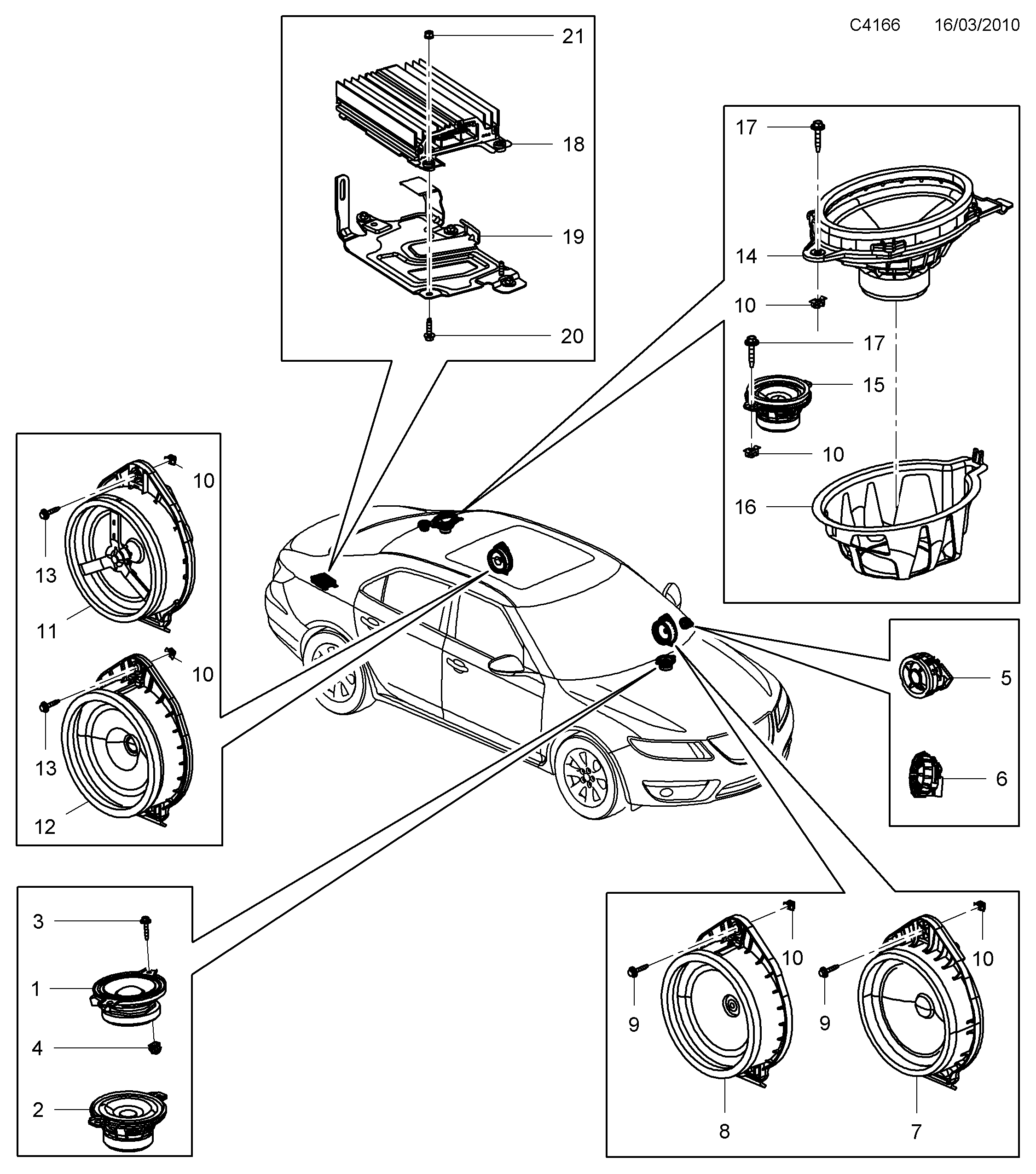

3100: Electrical, general - Electric equipment, other - Loudspeaker - Amplifier
