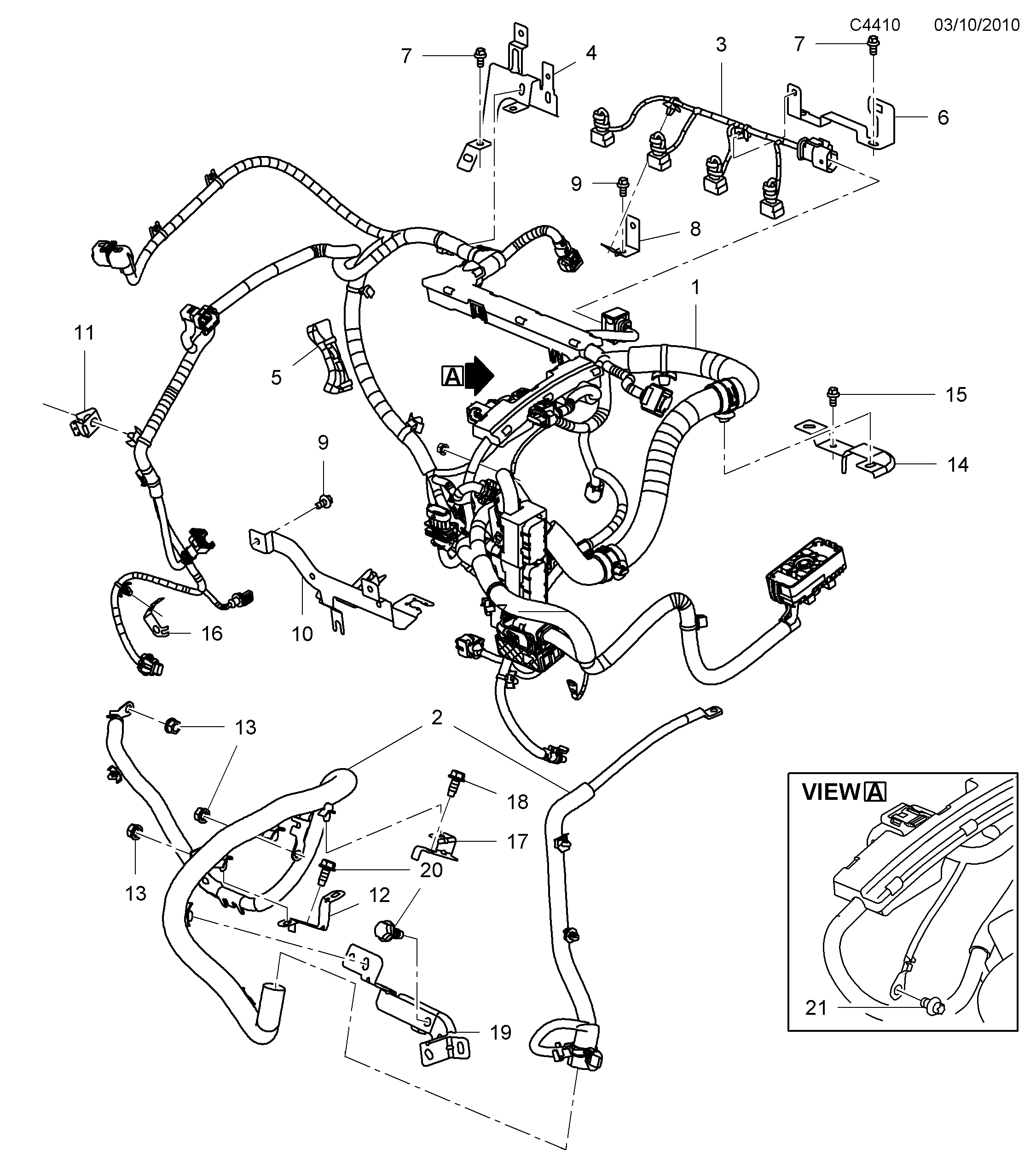

3990: Electrical, general - Wiring and fuses - Engine - fuel injection system
(2011 - 2012 | A20NFT, A16LET) | For 9-5 (650) (2011)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 295 293 Cable harness A20NFT, A16LET | 1 | |
| 2 | 13 295 299 Cable harness A20NFT, A16LET • starter motor-alternator | 1 | |
| 3 | 55 567 242 Cable harness A20NFT, A16LET • fuel injection system | 1 | |
| 4 | 55 566 419 Bracket A20NFT, A16LET | 1 | |
| 5 | 13 101 556 Bracket A20NFT, A16LET | 1 | |
| 6 | 13 276 975 Bracket A20NFT, A16LET | 1 | |
| 7 | 11 093 971 Screw A20NFT, A16LET | 1 | |
| 8 | 13 276 976 Bracket A20NFT, A16LET | 1 | |
| 9 | 11 093 971 Screw A20NFT, A16LET | 1 | |
| 10 | 55 354 422 Bracket A20NFT, A16LET | 1 | |
| 11 | 55 557 751 Retainer A20NFT, A16LET | 1 | |
| 12 | 55 353 590 Bracket A20NFT, A16LET | 1 | |
| 13 | 51 25 984 Hexagon nut A20NFT, A16LET | X | |
| 14 | 13 276 977 Bracket A20NFT, A16LET | ||
| 15 | 11 093 971 Screw A20NFT, A16LET | 1 | |
| 16 | 91 53 137 Bracket A20NFT, A16LET | 1 | |
| 17 | 55 353 515 Bracket A20NFT, A16LET | 1 | |
| 18 | 11 588 722 Hexagon screw A20NFT, A16LET | 1 | |
| 19 | 55 353 509 Bracket A20NFT, A16LET | ||
| 20 | 11 588 722 Hexagon screw A20NFT, A16LET | 1 | |
| 21 | 11 097 791 Screw A20NFT, A16LET | 1 |
