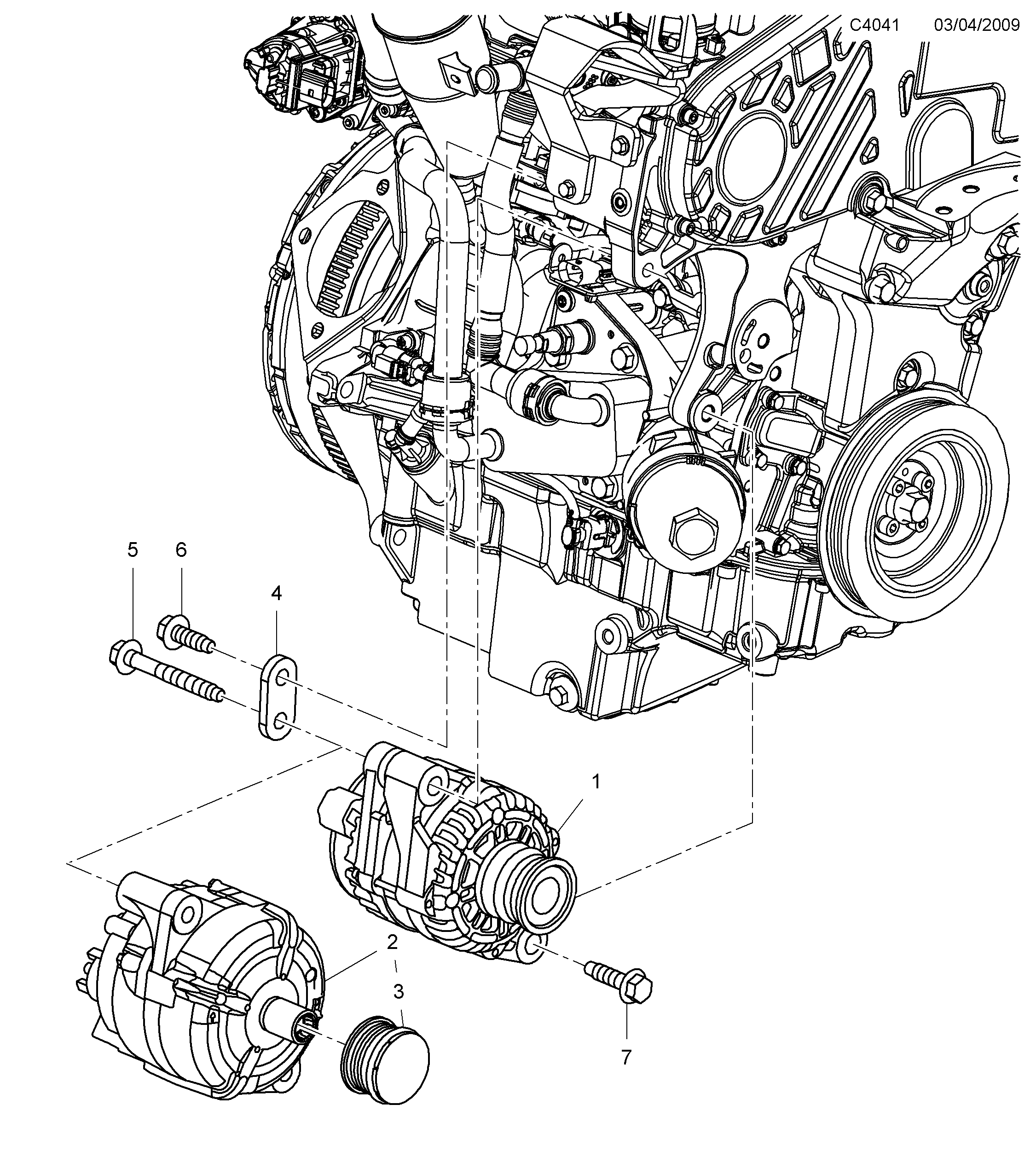

400: Electrical, general - Generator
(2010 - 2012 | A20DTH, A20DTR) | For 9-5 (650) (2011)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 502 583 Generator A20DTH, A20DTR • 100 A | 1 | |
| 3 | 13 258 483 Pulley A20DTH, A20DTR | 1 | |
| 2 | 13 502 581 Generator A20DTH, A20DTR • 140 A | 1 | |
| 4 | 55 181 226 Bracket A20DTH, A20DTR | 1 | |
| 5 | 11 589 280 Screw A20DTH, A20DTR • M12x90 | 1 | |
| 6 | 11 589 272 Screw A20DTH, A20DTR • M12x30 | 1 | |
| 7 | 11 589 274 Screw A20DTH, A20DTR • M12X40 | 1 |
