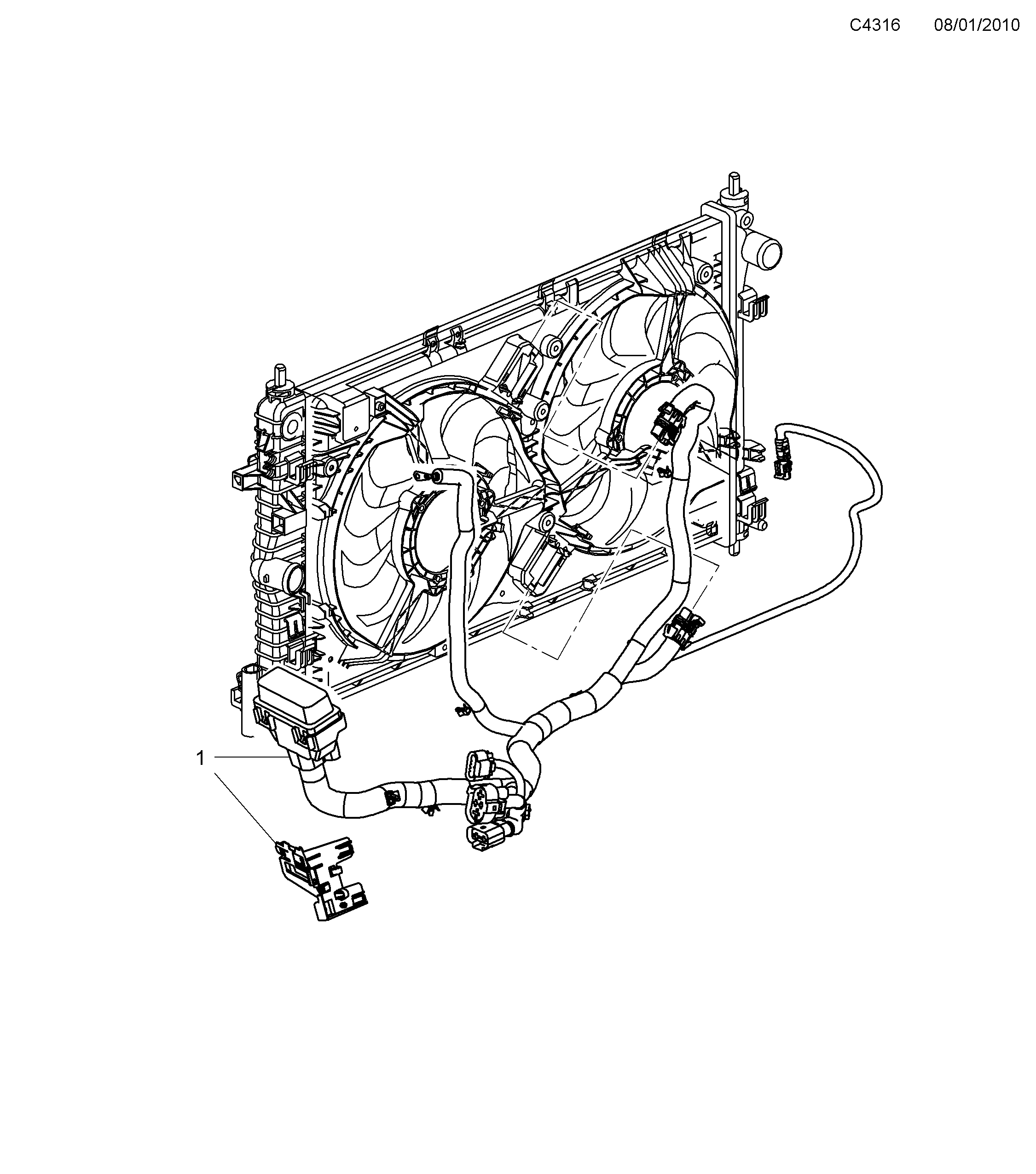

Pos.	Part No.	Description	Usage	Qty
1	13 327 229 Cable harness 2011-2011 • A16LET • Cooling fan	Cable harness	2011-2011 A16LET Cooling fan	1
1	13 327 226 Cable harness 2011-2011 • A20NFT, A28NER, A20DTH • Cooling fan	Cable harness	2011-2011 A20NFT, A28NER, A20DTH Cooling fan	1
1	13 327 225 Cable harness 2011-2011 • A20DTH, A20DTR • Cooling fan	Cable harness	2011-2011 A20DTH, A20DTR Cooling fan	1

Pos.	Part No.	Description	Usage	Qty
1	13 327 229 Cable harness 2011-2011 • A16LET • Cooling fan	Cable harness	2011-2011 A16LET Cooling fan	1
1	13 327 226 Cable harness 2011-2011 • A20NFT, A28NER, A20DTH • Cooling fan	Cable harness	2011-2011 A20NFT, A28NER, A20DTH Cooling fan	1
1	13 327 225 Cable harness 2011-2011 • A20DTH, A20DTR • Cooling fan	Cable harness	2011-2011 A20DTH, A20DTR Cooling fan	1

4250: Electrical, general - Wiring and fuses - Engine - Cooling fan
