Question 1

Where to find the exploded diagram for Upper trim on my Saab 9-5 (650) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Upper trim on Saab 9-5 (650) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Upper trim?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Upper trim?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Upper trim, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Upper trim suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	13 341 021 Head lining Light neutral Without Sunroof	Head lining	Light neutral Without Sunroof	1
1	13 341 022 Head lining Light titanium Without Sunroof	Head lining	Light titanium Without Sunroof	1
1	13 341 019 Head lining Not for USA and...	Head lining	Not for USA and...	1
1	13 341 020 Head lining Not for USA and...	Head lining	Not for USA and...	1
2	13 334 015 Head lining Light neutral Sunroof	Head lining	Light neutral Sunroof	1
2	13 334 016 Head lining Light titanium Sunroof	Head lining	Light titanium Sunroof	1
2	13 360 869 Head lining Not for USA and...	Head lining	Not for USA and...	1
2	13 360 870 Head lining Not for USA and...	Head lining	Not for USA and...	1
3	90 520 940 Clip	Clip		X
4	12 845 131 Locating pin	Locating pin		1

Pos.	Part No.	Description	Usage	Qty
1	13 341 021 Head lining Light neutral Without Sunroof	Head lining	Light neutral Without Sunroof	1
1	13 341 022 Head lining Light titanium Without Sunroof	Head lining	Light titanium Without Sunroof	1
1	13 341 019 Head lining Not for USA and...	Head lining	Not for USA and...	1
1	13 341 020 Head lining Not for USA and...	Head lining	Not for USA and...	1
2	13 334 015 Head lining Light neutral Sunroof	Head lining	Light neutral Sunroof	1
2	13 334 016 Head lining Light titanium Sunroof	Head lining	Light titanium Sunroof	1
2	13 360 869 Head lining Not for USA and...	Head lining	Not for USA and...	1
2	13 360 870 Head lining Not for USA and...	Head lining	Not for USA and...	1
3	90 520 940 Clip	Clip		X
4	12 845 131 Locating pin	Locating pin		1

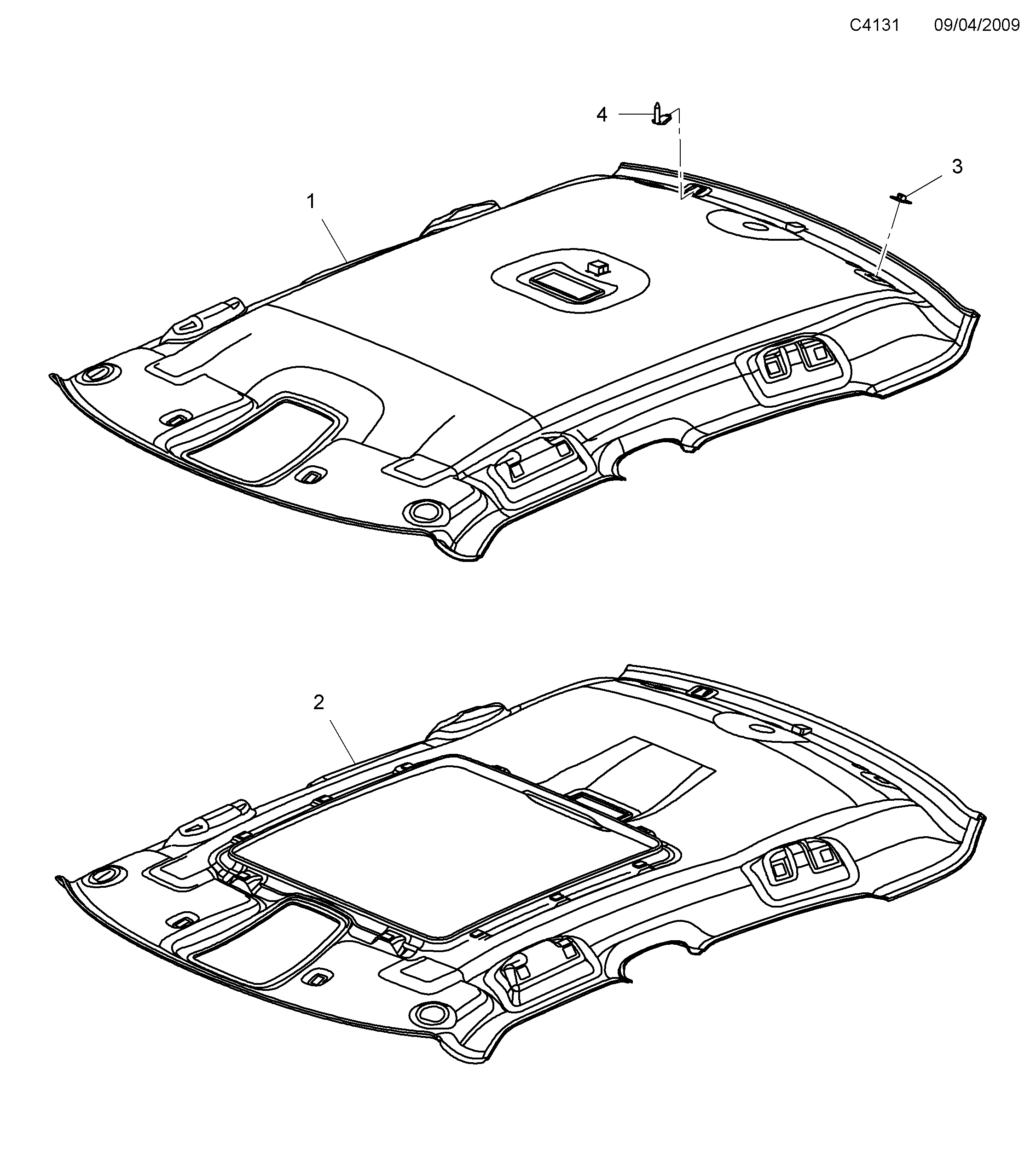

2000: Car body, internal - Upper trim - Headlining
