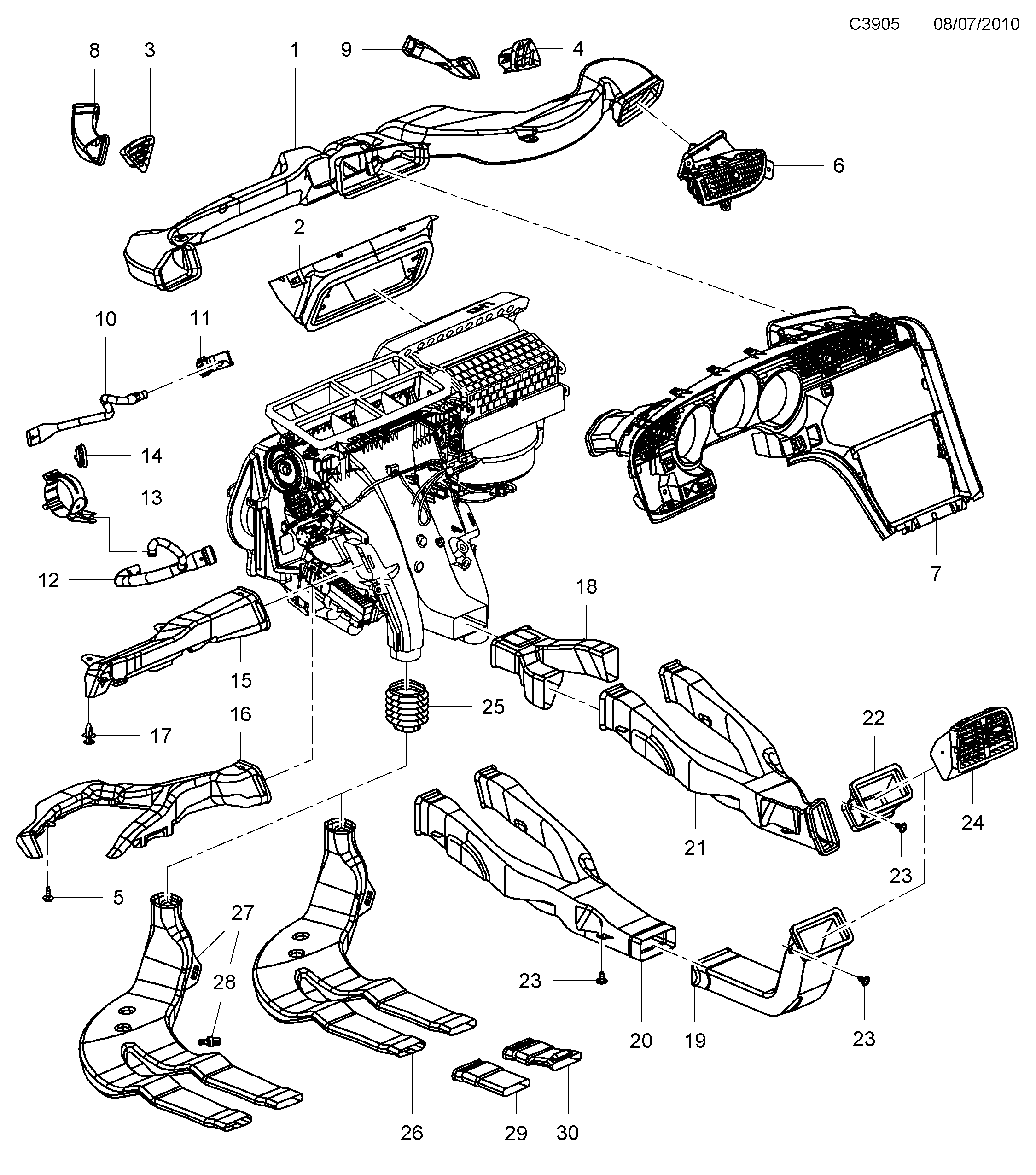

220: Heating and ventilation - Distribution channels

(2010 - 2012) | For 9-5 (650) (2011)

100%

(N°200)

Section 220

(N°230)

Pos.	Part No.	Description	Usage	Qty
1	13 249 841 Air duct LHD • Instrument panel	Air duct	LHD Instrument panel	1
1	13 249 840 Air duct RHD • Instrument panel	Air duct	RHD Instrument panel	1
2	13 251 321 Cover Air intake housing Instrument...	Cover	Air intake housing Instrument...	1
3	GrilleUpholstery	GrilleUpholstery
4	GrilleUpholstery	GrilleUpholstery
5	11 609 461 Hexagon screw M4.2X 16	Hexagon screw	M4.2X 16	X
6	Air ventUpholstery	Air ventUpholstery
7	Facia centre air ventsUpholstery	Facia centre air ventsUpholstery
8	13 249 837 Air duct LHD • LH \| Instrument panel...	Air duct	LHD LH \| Instrument panel...	1
9	13 264 732 Air duct RHD • RH \| Instrument panel...	Air duct	RHD RH \| Instrument panel...	1
10	13 315 897 Air duct LHD • Instrument panel	Air duct	LHD Instrument panel	1
11	13 315 900 Bracket LHD • Air duct Instrument panel	Bracket	LHD Air duct Instrument panel	1
12	13 315 896 Air duct RHD • Instrument panel	Air duct	RHD Instrument panel	1
13	13 315 899 Bracket RHD • Air duct Instrument panel	Bracket	RHD Air duct Instrument panel	1
14	13 242 038 Cap blanking Air duct	Cap blanking	Air duct	1
15	13 302 770 Air duct LHD • LH \| Front footwell	Air duct	LHD LH \| Front footwell	1
15	13 302 771 Air duct RHD • RH \| Front footwell	Air duct	RHD RH \| Front footwell	1
16	13 242 024 Air duct RHD • LH \| Front footwell	Air duct	RHD LH \| Front footwell	1
16	13 242 025 Air duct LHD • RH \| Front footwell	Air duct	LHD RH \| Front footwell	1
17	92 152 036 Rivet Air duct	Rivet	Air duct	1
18	12 823 236 Air duct Centre console Front and...	Air duct	Centre console Front and...	1
19	13 249 858 Air duct Centre console Rear Front...	Air duct	Centre console Rear Front...	1
20	13 249 859 Air duct Centre console Rear Front...	Air duct	Centre console Rear Front...	1
21	13 264 722 Air duct Centre console Rear Front...	Air duct	Centre console Rear Front...	1
22	13 264 724 Air duct Centre console Rear Front...	Air duct	Centre console Rear Front...	1
23	13 307 262 Screw Centre console Rear Air...	Screw	Centre console Rear Air...	3
24	Console rear air ventUpholstery	Console rear air ventUpholstery
25	13 305 443 Adapter Air duct Rear footwell	Adapter	Air duct Rear footwell	1
26	13 242 031 Air duct LH \| Rear footwell...	Air duct	LH \| Rear footwell...	1
26	13 242 032 Air duct RH \| Rear footwell	Air duct	RH \| Rear footwell	1
27	13 293 443 Air duct LH \| Rear footwell...	Air duct	LH \| Rear footwell...	1
28	25 917 885 Sensor LH \| Air duct...	Sensor	LH \| Air duct...	1
29	12 825 396 Air duct Rear footwell Extension Without...	Air duct	Rear footwell Extension Without...	1
30	12 825 397 Air duct Rear footwell Extension	Air duct	Rear footwell Extension	1
30	12 825 398 Air duct Rear footwell Extension	Air duct	Rear footwell Extension	1
