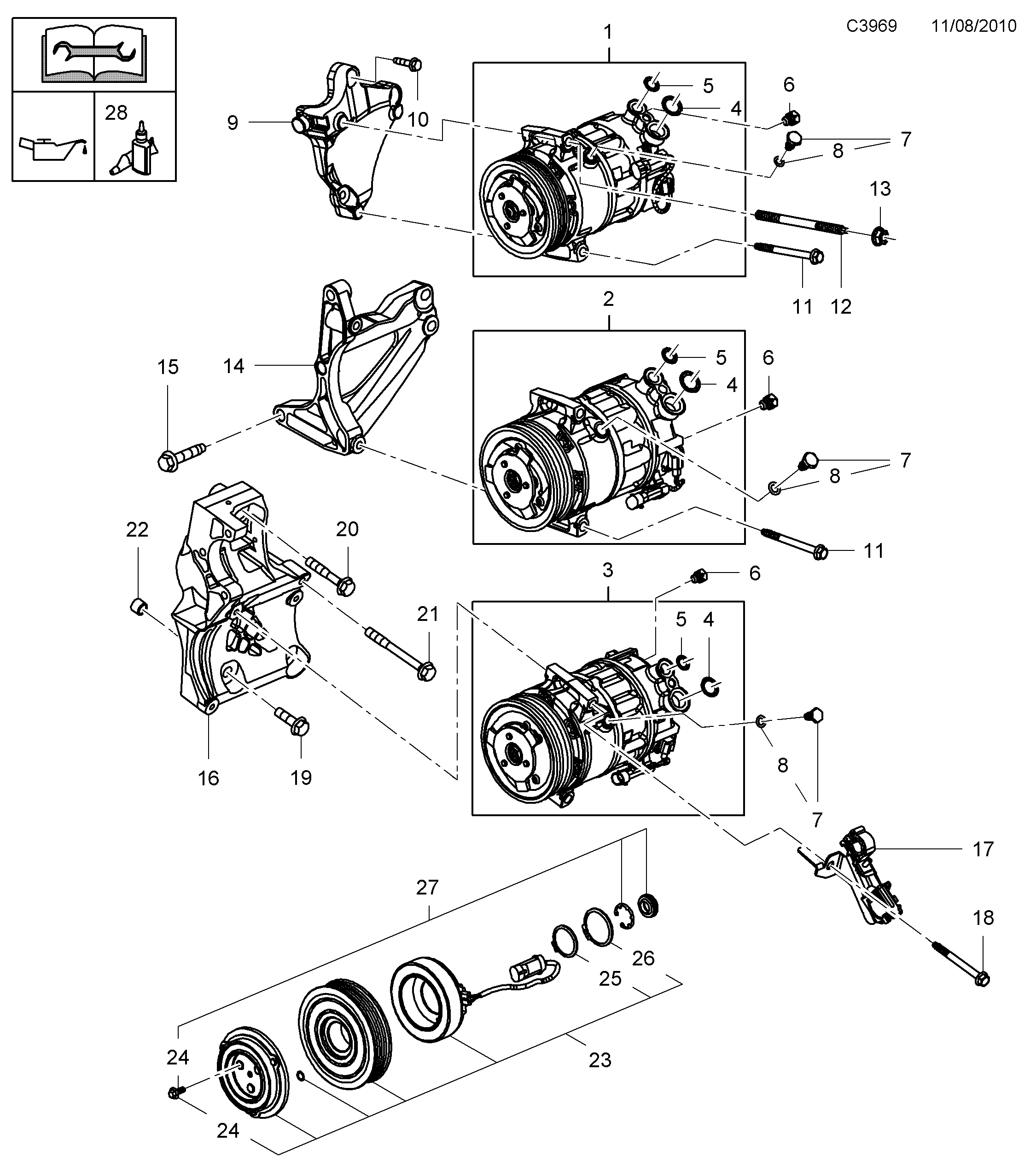

250: Heating and ventilation - AC compressor

(2010 - 2012) | For 9-5 (650) (2011)

100%

(N°230)

Section 250

(N°290)

Pos.	Part No.	Description	Usage	Qty
1	13 339 088 Compressor 2011-2011 • A16LET • Air conditioning	Compressor	2011-2011 A16LET Air conditioning	1
1	13 262 836 Compressor A20NHT, A20NFT • Air conditioning	Compressor	A20NHT, A20NFT Air conditioning	1
2	13 262 838 Compressor A28NET, A28NER • Air conditioning	Compressor	A28NET, A28NER Air conditioning	1
3	13 262 839 Compressor A20DTH • Air conditioning	Compressor	A20DTH Air conditioning	1
3	13 262 841 Compressor A20DTR • Air conditioning	Compressor	A20DTR Air conditioning	1
4	24 436 645 O-ring 25.2 MM OD \|...	O-ring	25.2 MM OD \|...	1
5	24 436 646 O-ring 19.1 MM OD \|...	O-ring	19.1 MM OD \|...	1
6	91 94 582 Valve Pressure relief AC compressor	Valve	Pressure relief AC compressor	1
7	93 182 417 Screw AC compressor Oil drain	Screw	AC compressor Oil drain	1
8	90 543 274 O-ring AC compressor Oil drain	O-ring	AC compressor Oil drain	1
9	12 605 471 Support A20NHT, A20NFT • Bracket AC compressor	Support	A20NHT, A20NFT Bracket AC compressor	1
10	11 588 725 Hexagon screw A20NHT, A20NFT • M8 x 35 \|...	Hexagon screw	A20NHT, A20NFT M8 x 35 \|...	3
11	11 588 734 Screw 2011-2011 • PETROL • Bracket AC compressor	Screw	2011-2011 PETROL Bracket AC compressor	1
12	11 561 936 Stud A20NHT, A20NFT • M8 \| Bracket AC...	Stud	A20NHT, A20NFT M8 \| Bracket AC...	1
13	11 514 596 Hexagon nut A20NHT, A20NFT • M8 \| Bracket AC...	Hexagon nut	A20NHT, A20NFT M8 \| Bracket AC...	1
14	55 354 827 Support A28NET, A28NER • Bracket AC compressor	Support	A28NET, A28NER Bracket AC compressor	1
15	11 588 742 Screw A28NET, A28NER • M10X50 \| Bracket AC...	Screw	A28NET, A28NER M10X50 \| Bracket AC...	4
16	55 562 863 Support bracket A20DTH, A20DTR • AC compressor Power steering...	Support bracket	A20DTH, A20DTR AC compressor Power steering...	1
17	13 285 668 Bracket A20DTH, A20DTR • AC compressor Hose	Bracket	A20DTH, A20DTR AC compressor Hose	1
18	11 588 734 Screw A20DTH, A20DTR • Bracket AC compressor	Screw	A20DTH, A20DTR Bracket AC compressor	3
19	55 570 610 Screw A20DTH, A20DTR • M10X35 \| Bracket AC...	Screw	A20DTH, A20DTR M10X35 \| Bracket AC...	2
20	55 570 611 Screw A20DTH, A20DTR • M10X60 \| Bracket AC...	Screw	A20DTH, A20DTR M10X60 \| Bracket AC...	1
21	55 570 612 Screw A20DTH, A20DTR • M10 X 95 \|...	Screw	A20DTH, A20DTR M10 X 95 \|...	1
22	93 178 469 Screw plug A20DTH, A20DTR • Bracket AC compressor	Screw plug	A20DTH, A20DTR Bracket AC compressor	2
23	13 282 499 Clutch 2011-2011 • A16LET	Clutch	2011-2011 A16LET	1
24	13 262 995 Hexagon screw 2011-2011 • A16LET	Hexagon screw	2011-2011 A16LET	1
25	91 18 286 Retaining ring 2011-2011 • A16LET	Retaining ring	2011-2011 A16LET	1
26	13 262 997 Retaining ring 2011-2011 • A16LET	Retaining ring	2011-2011 A16LET	1
27	13 281 449 Sealing ring kit 2011-2011 • A16LET	Sealing ring kit	2011-2011 A16LET	1
28	90 509 933 Compressor oil 250 ml \| AC...	Compressor oil	250 ml \| AC...	X
