Question 1

Where to find the exploded diagram for Short block on my Saab 9-5 (650) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Short block on Saab 9-5 (650) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Short block?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	13 227 762 Bushing A20NFT, A16LET • FRONT	Bushing	A20NFT, A16LET FRONT	1
2	11 589 281 Hexagon screw A20NFT, A16LET • M12X100	Hexagon screw	A20NFT, A16LET M12X100	1
3	13 274 850 Hexagon screw A20NFT, A16LET • M12X48	Hexagon screw	A20NFT, A16LET M12X48	2
4	13 227 712 Vibration damper A20NFT, A16LET • RH	Vibration damper	A20NFT, A16LET RH	1
5	11 588 738 Hexagon screw A20NFT, A16LET • M10X30	Hexagon screw	A20NFT, A16LET M10X30	1
6	11 570 514 Screw A20NFT, A16LET • M10X61	Screw	A20NFT, A16LET M10X61	3
7	11 588 741 Hexagon screw A20NFT, A16LET • M10 X 45	Hexagon screw	A20NFT, A16LET M10 X 45	2
8	13 227 753 Bracket A20NFT, A16LET • RH	Bracket	A20NFT, A16LET RH	1
9	11 588 750 Screw A20NFT, A16LET • M10X90	Screw	A20NFT, A16LET M10X90	3
10	13 312 093 Hydro bushing A20NFT, A16LET • LH	Hydro bushing	A20NFT, A16LET LH	1
11	92 152 134 Hexagon screw A20NFT, A16LET	Hexagon screw	A20NFT, A16LET	4
12	11 570 514 Screw A20NFT, A16LET • M10X61	Screw	A20NFT, A16LET M10X61	3
13	11 101 131 Screw A20NFT, A16LET • M12x40	Screw	A20NFT, A16LET M12x40	3
14	11 514 596 Hexagon nut A20NFT, A16LET • M8	Hexagon nut	A20NFT, A16LET M8	1
15	13 228 254 Bracket A20NFT, A16LET • LH	Bracket	A20NFT, A16LET LH	1
16	13 228 303 Vibration damper A20NFT, A16LET • REAR	Vibration damper	A20NFT, A16LET REAR	1
17	11 589 284 Screw A20NFT, A16LET • M12X130	Screw	A20NFT, A16LET M12X130	2
18	11 514 598 Nut A20NFT, A16LET • M12	Nut	A20NFT, A16LET M12	2
19	13 228 285 Bracket A20NFT, A16LET • REAR	Bracket	A20NFT, A16LET REAR	1
20	11 589 283 Screw A20NFT, A16LET • M12X120	Screw	A20NFT, A16LET M12X120	1
21	11 589 276 Screw A20NFT, A16LET • M12X50	Screw	A20NFT, A16LET M12X50	3
22	91 56 952 Heat shield A20NFT, A16LET	Heat shield	A20NFT, A16LET	1

Pos.	Part No.	Description	Usage	Qty
1	13 227 762 Bushing A20NFT, A16LET • FRONT	Bushing	A20NFT, A16LET FRONT	1
2	11 589 281 Hexagon screw A20NFT, A16LET • M12X100	Hexagon screw	A20NFT, A16LET M12X100	1
3	13 274 850 Hexagon screw A20NFT, A16LET • M12X48	Hexagon screw	A20NFT, A16LET M12X48	2
4	13 227 712 Vibration damper A20NFT, A16LET • RH	Vibration damper	A20NFT, A16LET RH	1
5	11 588 738 Hexagon screw A20NFT, A16LET • M10X30	Hexagon screw	A20NFT, A16LET M10X30	1
6	11 570 514 Screw A20NFT, A16LET • M10X61	Screw	A20NFT, A16LET M10X61	3
7	11 588 741 Hexagon screw A20NFT, A16LET • M10 X 45	Hexagon screw	A20NFT, A16LET M10 X 45	2
8	13 227 753 Bracket A20NFT, A16LET • RH	Bracket	A20NFT, A16LET RH	1
9	11 588 750 Screw A20NFT, A16LET • M10X90	Screw	A20NFT, A16LET M10X90	3
10	13 312 093 Hydro bushing A20NFT, A16LET • LH	Hydro bushing	A20NFT, A16LET LH	1
11	92 152 134 Hexagon screw A20NFT, A16LET	Hexagon screw	A20NFT, A16LET	4
12	11 570 514 Screw A20NFT, A16LET • M10X61	Screw	A20NFT, A16LET M10X61	3
13	11 101 131 Screw A20NFT, A16LET • M12x40	Screw	A20NFT, A16LET M12x40	3
14	11 514 596 Hexagon nut A20NFT, A16LET • M8	Hexagon nut	A20NFT, A16LET M8	1
15	13 228 254 Bracket A20NFT, A16LET • LH	Bracket	A20NFT, A16LET LH	1
16	13 228 303 Vibration damper A20NFT, A16LET • REAR	Vibration damper	A20NFT, A16LET REAR	1
17	11 589 284 Screw A20NFT, A16LET • M12X130	Screw	A20NFT, A16LET M12X130	2
18	11 514 598 Nut A20NFT, A16LET • M12	Nut	A20NFT, A16LET M12	2
19	13 228 285 Bracket A20NFT, A16LET • REAR	Bracket	A20NFT, A16LET REAR	1
20	11 589 283 Screw A20NFT, A16LET • M12X120	Screw	A20NFT, A16LET M12X120	1
21	11 589 276 Screw A20NFT, A16LET • M12X50	Screw	A20NFT, A16LET M12X50	3
22	91 56 952 Heat shield A20NFT, A16LET	Heat shield	A20NFT, A16LET	1

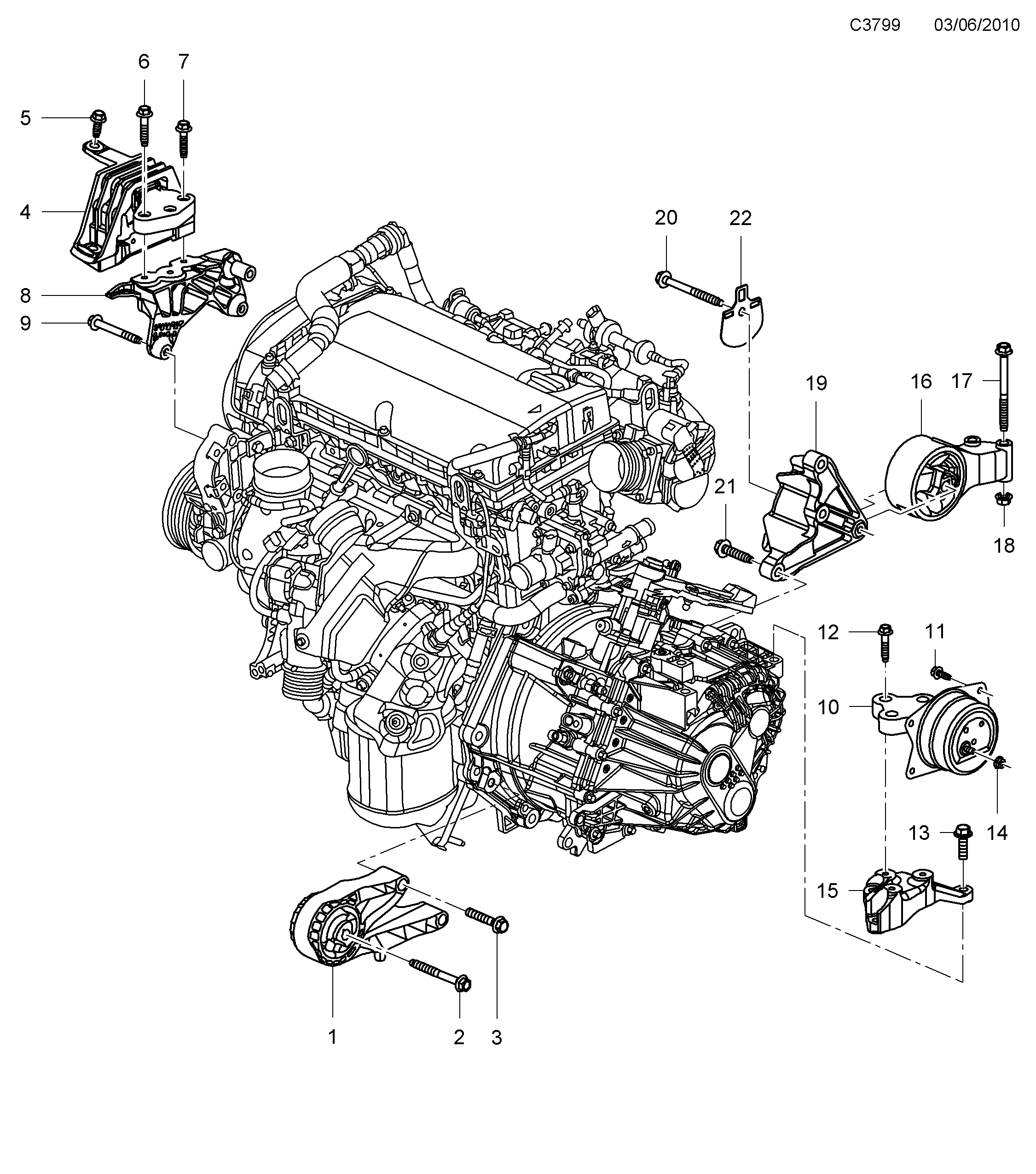

110: Engine - Short block - Engine suspension
