Question 1

Where to find the exploded diagram for Fuel system on my Saab 9-5 (650) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-5 (650) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

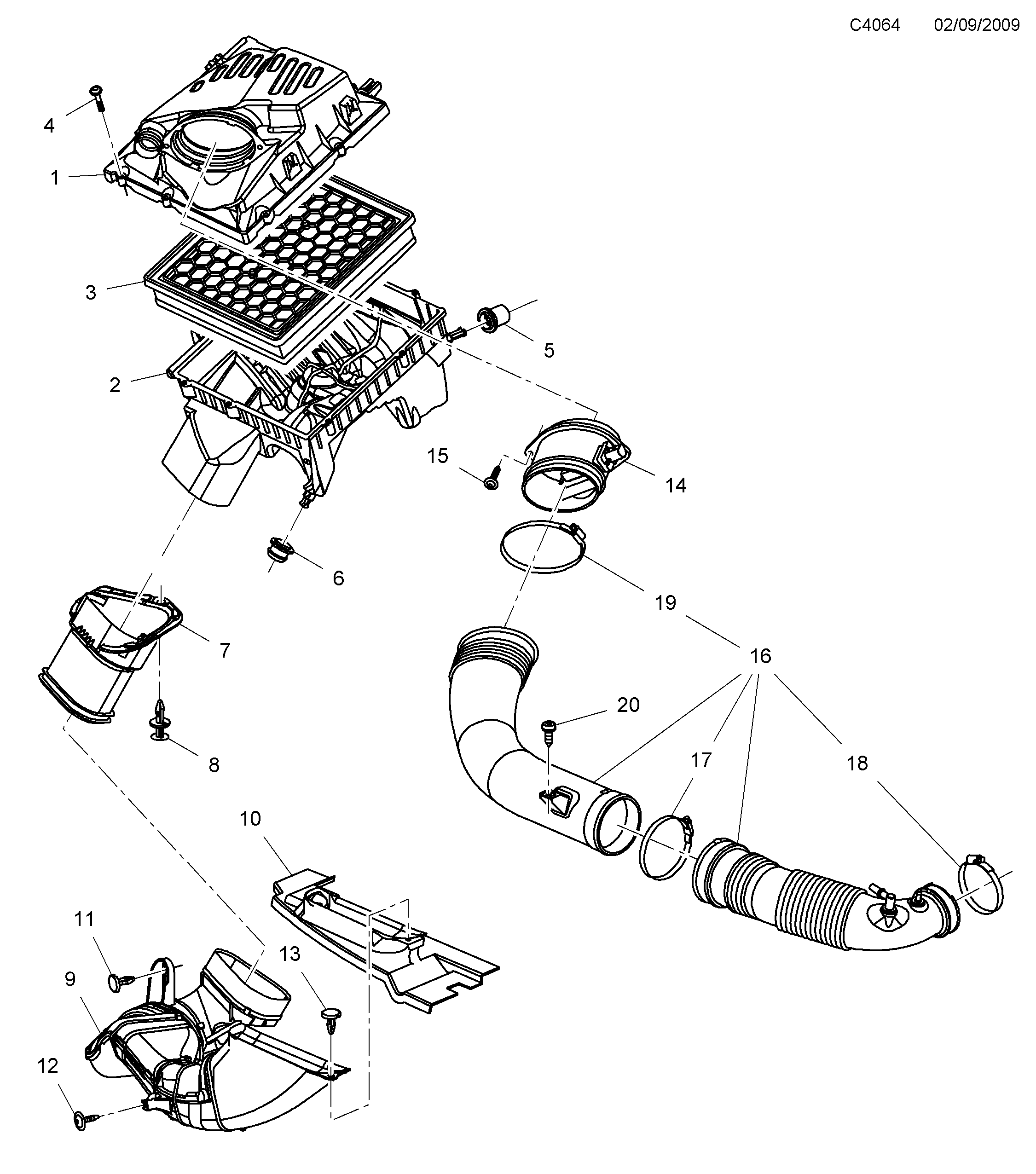

Pos.	Part No.	Description	Usage	Qty
1	13 296 369 Cover A28NER	Cover	A28NER	1
2	13 335 598 Housing A28NER	Housing	A28NER	1
3	13 319 421 Filter insert A28NER	Filter insert	A28NER	1
4	12 800 518 Screw A28NER	Screw	A28NER	6
5	92 02 941 Rubber spacer A28NER	Rubber spacer	A28NER	1
6	91 29 705 Rubber spacer A28NER	Rubber spacer	A28NER	1
7	13 325 924 Guide A28NER	Guide	A28NER	1
8	11 589 291 Clip A28NER	Clip	A28NER	1
9	13 328 136 Air duct A28NER • INLET	Air duct	A28NER INLET	1
10	13 321 545 Water drainage A28NER	Water drainage	A28NER	1
11	11 589 291 Clip A28NER	Clip	A28NER	1
12	13 278 397 Screw A28NER	Screw	A28NER	1
13	11 589 290 Expanding rivet A28NER	Expanding rivet	A28NER	1
14	13 261 544 Mass air flow sensor A28NER	Mass air flow sensor	A28NER	1
15	11 589 012 Screw A28NER • M4X25	Screw	A28NER M4X25	2
16	13 307 192 Air duct A28NER • OUTLET	Air duct	A28NER OUTLET	1
17	24 415 474 Hose clamp A28NER • 89-96MM	Hose clamp	A28NER 89-96MM	1
18	24 442 228 Hose clamp A28NER • 65-75MM	Hose clamp	A28NER 65-75MM	1
19	13 262 349 Clamp A28NER • 82-92mm	Clamp	A28NER 82-92mm	1
20	11 099 882 Torx screw A28NER • 4.8x16	Torx screw	A28NER 4.8x16	1

Pos.	Part No.	Description	Usage	Qty
1	13 296 369 Cover A28NER	Cover	A28NER	1
2	13 335 598 Housing A28NER	Housing	A28NER	1
3	13 319 421 Filter insert A28NER	Filter insert	A28NER	1
4	12 800 518 Screw A28NER	Screw	A28NER	6
5	92 02 941 Rubber spacer A28NER	Rubber spacer	A28NER	1
6	91 29 705 Rubber spacer A28NER	Rubber spacer	A28NER	1
7	13 325 924 Guide A28NER	Guide	A28NER	1
8	11 589 291 Clip A28NER	Clip	A28NER	1
9	13 328 136 Air duct A28NER • INLET	Air duct	A28NER INLET	1
10	13 321 545 Water drainage A28NER	Water drainage	A28NER	1
11	11 589 291 Clip A28NER	Clip	A28NER	1
12	13 278 397 Screw A28NER	Screw	A28NER	1
13	11 589 290 Expanding rivet A28NER	Expanding rivet	A28NER	1
14	13 261 544 Mass air flow sensor A28NER	Mass air flow sensor	A28NER	1
15	11 589 012 Screw A28NER • M4X25	Screw	A28NER M4X25	2
16	13 307 192 Air duct A28NER • OUTLET	Air duct	A28NER OUTLET	1
17	24 415 474 Hose clamp A28NER • 89-96MM	Hose clamp	A28NER 89-96MM	1
18	24 442 228 Hose clamp A28NER • 65-75MM	Hose clamp	A28NER 65-75MM	1
19	13 262 349 Clamp A28NER • 82-92mm	Clamp	A28NER 82-92mm	1
20	11 099 882 Torx screw A28NER • 4.8x16	Torx screw	A28NER 4.8x16	1

1110: Engine - Fuel system - Air cleaner
