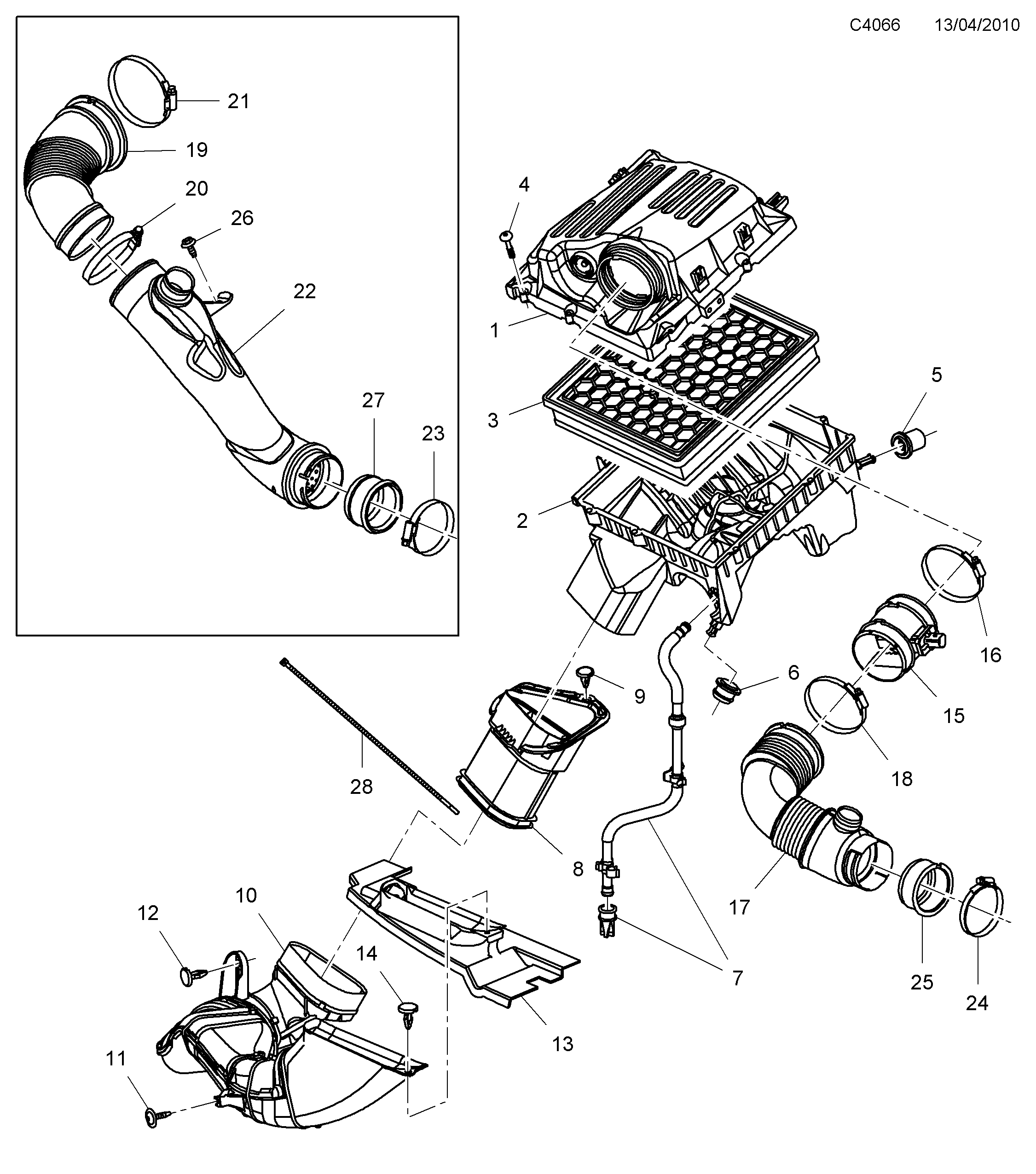

1125: Engine - Fuel system - Air cleaner

(2010 - 2012 | A20DTH, A20DTR) | For 9-5 (650) (2012)

100%

(N°1110)

Section 1125

(N°2100)

Pos.	Part No.	Description	Usage	Qty
1	13 296 367 Cover A20DTH, A20DTR	Cover	A20DTH, A20DTR	1
2	13 335 598 Housing A20DTH, A20DTR	Housing	A20DTH, A20DTR	1
3	13 319 421 Filter insert A20DTH, A20DTR	Filter insert	A20DTH, A20DTR	1
4	12 800 518 Screw A20DTH, A20DTR	Screw	A20DTH, A20DTR	6
5	92 02 941 Rubber spacer A20DTH, A20DTR	Rubber spacer	A20DTH, A20DTR	1
6	91 29 705 Rubber spacer A20DTH, A20DTR	Rubber spacer	A20DTH, A20DTR	1
7	13 324 887 Hose A20DTH, A20DTR • Drain	Hose	A20DTH, A20DTR Drain	1
8	12 825 705 Guide A20DTH, A20DTR	Guide	A20DTH, A20DTR	1
9	11 589 292 Rivet A20DTH, A20DTR	Rivet	A20DTH, A20DTR	1
10	13 328 136 Air duct A20DTH, A20DTR • INLET	Air duct	A20DTH, A20DTR INLET	1
11	13 278 397 Screw A20DTH, A20DTR	Screw	A20DTH, A20DTR	1
12	11 589 291 Clip A20DTH, A20DTR	Clip	A20DTH, A20DTR	1
13	13 321 545 Water drainage A20DTH, A20DTR	Water drainage	A20DTH, A20DTR	1
14	11 589 290 Expanding rivet A20DTH, A20DTR	Expanding rivet	A20DTH, A20DTR	1
15	55 562 426 Mass air flow sensor A20DTH, A20DTR	Mass air flow sensor	A20DTH, A20DTR	1
16	24 415 473 Hose clamp A20DTH, A20DTR • 82-92mm	Hose clamp	A20DTH, A20DTR 82-92mm	1
17	55 561 787 Air duct A20DTH • OUTLET	Air duct	A20DTH OUTLET	1
18	24 415 473 Hose clamp A20DTH • 82-92mm \| Air outlet...	Hose clamp	A20DTH 82-92mm \| Air outlet...	1
19	55 562 490 Air duct A20DTR • OUTLET \| Front	Air duct	A20DTR OUTLET \| Front	1
20	24 415 470 Hose clamp A20DTR • 66-75MM \| Air outlet...	Hose clamp	A20DTR 66-75MM \| Air outlet...	1
21	24 415 472 Hose clamp A20DTR • 77-87MM \| Air outlet...	Hose clamp	A20DTR 77-87MM \| Air outlet...	1
22	55 562 491 Air duct A20DTR • OUTLET \| Rear	Air duct	A20DTR OUTLET \| Rear	1
23	24 415 467 Hose clamp A20DTR • 49-57MM \| Air outlet...	Hose clamp	A20DTR 49-57MM \| Air outlet...	1
24	24 415 469 Hose clamp A20DTH • 59-70 MM \| Air...	Hose clamp	A20DTH 59-70 MM \| Air...	1
25	13 309 145 Gasket A20DTH	Gasket	A20DTH	1
26	11 519 382 Screw A20DTR • M6X16 \| Air outlet...	Screw	A20DTR M6X16 \| Air outlet...	1
27	55 562 769 Gasket A20DTR • Air outlet Duct	Gasket	A20DTR Air outlet Duct	1
28	11 900 513 Tensioning band A20DTH, A20DTR	Tensioning band	A20DTH, A20DTR	1
