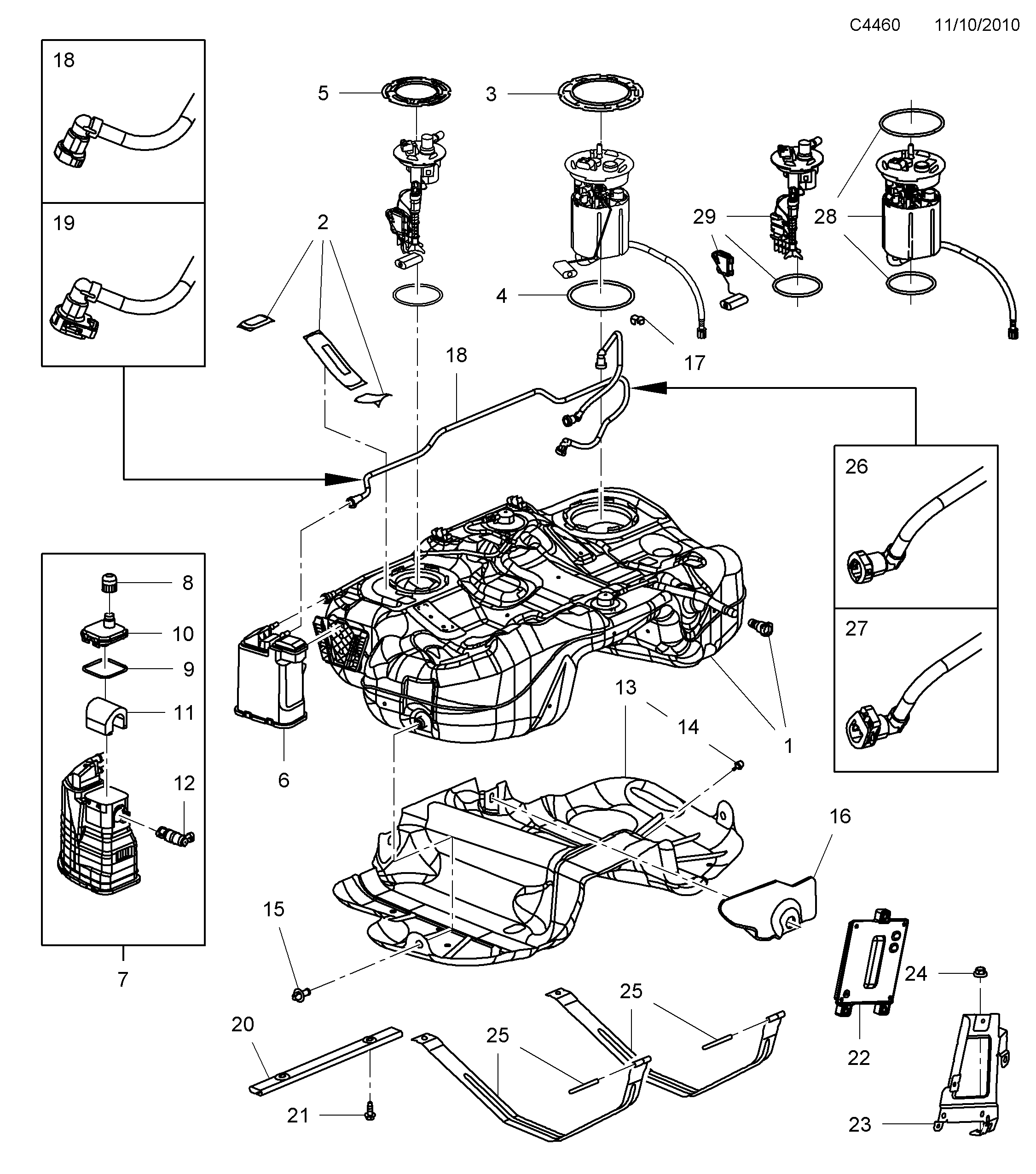

2110: Engine - Fuel system - Fuel tank
(2010 - 2012 | A20NFT, A16LET, A28NER) | For 9-5 (650) (2012)
With All Wheel Drive (XWD)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 250 374 Fuel reservoir A20NFT, A16LET, A28NER • EMISSION SYSTEM EEC 09 | 1 | |
| 1 | 13 245 051 Fuel reservoir A20NFT, A16LET, A28NER • EMISSION SYSTEM KOREAN, ULEV... | 1 | |
| 2 | 13 263 372 Insulation A20NFT, A16LET, A28NER • Fuel tank | 4 | |
| 3 | 10 325 852 Cam A20NFT, A16LET, A28NER • Fuel pump | 1 | |
| 4 | 22 682 111 O-ring A20NFT, A16LET, A28NER | 1 | |
| 5 | 15 776 431 Retainer A20NFT, A16LET, A28NER | 1 | |
| 6 | 13 230 479 Carbon filter A20NHT, A28NER, A28NET • EMISSION SYSTEM EEC 09 | 1 | |
| 8 | 13 267 929 Cap blanking A20NFT, A16LET, A28NER | 1 | |
| 9 | 25 827 633 Seal A20NFT, A16LET, A28NER | 1 | |
| 10 | 13 267 930 Cover A20NFT, A16LET, A28NER | 1 | |
| 11 | 22 682 316 Filter insert A20NFT, A16LET, A28NER | 1 | |
| 12 | 25 932 573 Solenoid valve A20NFT, A16LET, A28NER | 1 | |
| 13 | 13 273 477 Heat shield A20NFT, A16LET, A28NER | 1 | |
| 14 | 13 273 528 Spacer piece A20NFT, A16LET, A28NER • Heat shield | 2 | |
| 15 | 22 718 369 Plastic rivet A20NFT, A16LET, A28NER • Heat shield | 4 | |
| 16 | 13 182 612 Insulator A20NFT, A16LET, A28NER • Heat shield Lower | 1 | |
| 17 | 24 413 499 Clamp A20NFT, A16LET, A28NER • Vent pipe | 1 | |
| 18 | 13 250 371 Fuel pipe A20NHT, A28NER, A28NET • Feed Rear EMISSION SYSTEM... | 1 | |
| 20 | 13 238 468 Protection A20NFT, A16LET, A28NER | 1 | |
| 21 | 11 588 738 Hexagon screw A20NFT, A16LET, A28NER • M10X30 | X | |
| 23 | 12 782 947 Bracket A20NFT, A16LET, A28NER | 1 | |
| 24 | 11 609 411 Nut A20NFT, A16LET, A28NER • M6 | Control module... | 3 | |
| 25 | 13 238 465 Tensioning band A20NFT, A16LET, A28NER | 2 | |
| 26 | 13 250 369 Pipe A20NHT, A28NER, A28NET • Fuel evaporation Rear EMISSION... | 1 |
