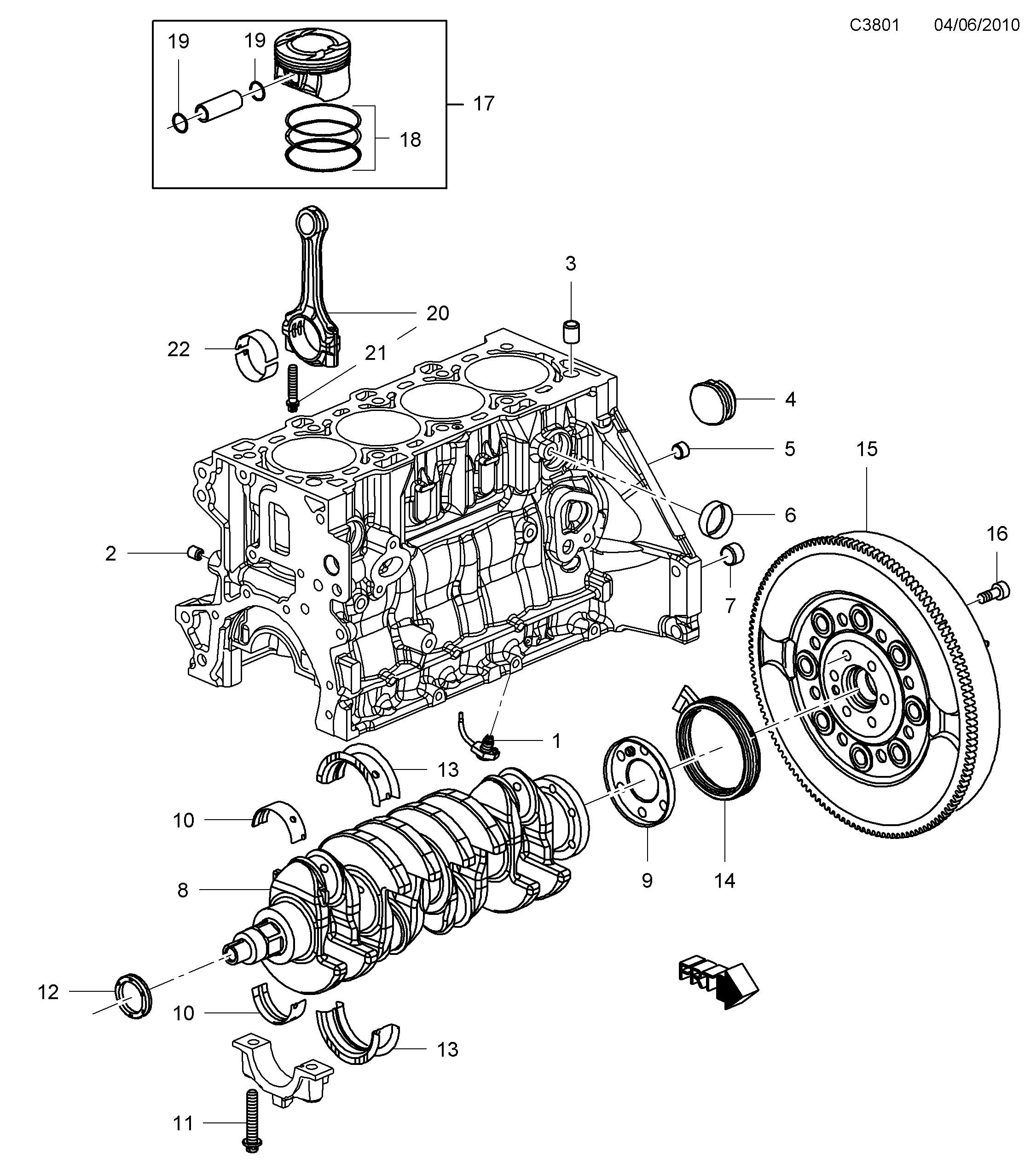

290: Engine - Short block - Cylinder block - Crankshaft and piston

(2011 - 2012 | A20NFT, A16LET) | For 9-5 (650) (2012)

100%

(N°225)

Section 290

(N°300)

Pos.	Part No.	Description	Usage	Qty
1	55 564 441 Nozzle A20NFT, A16LET	Nozzle	A20NFT, A16LET	4
2	93 180 107 Non-return valve A20NFT, A16LET	Non-return valve	A20NFT, A16LET	1
3	90 351 710 Sleeve A20NFT, A16LET	Sleeve	A20NFT, A16LET	2
4	55 566 841 Screw plug A20NFT, A16LET	Screw plug	A20NFT, A16LET	1
5	11 056 321 Screw plug A20NFT, A16LET • M14	Screw plug	A20NFT, A16LET M14	2
6	11 070 803 Plug, locking A20NFT, A16LET • Ø36MM	Plug, locking	A20NFT, A16LET Ø36MM	X
6	11 056 093 Plug, locking A20NFT, A16LET • Ø34MM	Plug, locking	A20NFT, A16LET Ø34MM	2
7	90 351 708 Sleeve A20NFT, A16LET	Sleeve	A20NFT, A16LET	2
8	55 569 766 Crankshaft A20NFT, A16LET	Crankshaft	A20NFT, A16LET	1
9	55 555 803 55 574 780 Disc A20NFT, A16LET	Disc	A20NFT, A16LET	1
10	93 184 596 Crankshaft bearing, kit A20NFT, A16LET • STD	Crankshaft bearing, kit	A20NFT, A16LET STD	4
10	93 184 597 Crankshaft bearing, kit A20NFT, A16LET • 0.25MM U/S	Crankshaft bearing, kit	A20NFT, A16LET 0.25MM U/S	4
10	93 184 598 Crankshaft bearing, kit A20NFT, A16LET • 0.50 MM U/S	Crankshaft bearing, kit	A20NFT, A16LET 0.50 MM U/S	4
11	24 418 414 Torx screw A20NFT, A16LET • M10X52	Torx screw	A20NFT, A16LET M10X52	10
12	24 465 791 Seal A20NFT, A16LET • crankshaft Front	Seal	A20NFT, A16LET crankshaft Front	1
13	93 184 599 Guide bearing, kit A20NFT, A16LET • STD	Guide bearing, kit	A20NFT, A16LET STD	1
13	93 184 600 Guide bearing, kit A20NFT, A16LET • 0.25MM U/S	Guide bearing, kit	A20NFT, A16LET 0.25MM U/S	1
13	93 184 601 Guide bearing, kit A20NFT, A16LET • 0.50 MM U/S	Guide bearing, kit	A20NFT, A16LET 0.50 MM U/S	1
14	55 555 805 Scalloped seal ring A20NFT, A16LET • crankshaft Rear	Scalloped seal ring	A20NFT, A16LET crankshaft Rear	1
15	55 564 555 Flywheel A20NFT, A16LET	Flywheel	A20NFT, A16LET	1
16	93 186 900 Torx screw A20NFT, A16LET	Torx screw	A20NFT, A16LET	6
17	55 561 413 Piston A20NFT, A16LET • CODE=0 \| 78.992-79.008 MM	Piston	A20NFT, A16LET CODE=0 \| 78.992-79.008 MM	4
17	55 571 126 Piston A20NFT, A16LET • CODE=01 \| 79.042-79.058 MM	Piston	A20NFT, A16LET CODE=01 \| 79.042-79.058 MM	4
18	93 186 225 Piston rings, set A20NFT, A16LET • CODE=0 \| 78.992-79.008 MM	Piston rings, set	A20NFT, A16LET CODE=0 \| 78.992-79.008 MM	4
19	12 992 353 Lock ring A20NFT, A16LET	Lock ring	A20NFT, A16LET	8
17	55 561 415 Piston A20NFT, A16LET • 0.5MM O/S	Piston	A20NFT, A16LET 0.5MM O/S	4
18	93 188 426 Piston rings, set A20NFT, A16LET • 0.5MM O/S	Piston rings, set	A20NFT, A16LET 0.5MM O/S	4
20	55 568 467 Connecting rod set A20NFT, A16LET	Connecting rod set	A20NFT, A16LET	1
21	12 992 338 Connecting rod bolt A20NFT, A16LET	Connecting rod bolt	A20NFT, A16LET	8
22	55 568 638 Big end bearing kit A20NFT, A16LET • STD	Big end bearing kit	A20NFT, A16LET STD	4
22	55 568 639 Big end bearing kit A20NFT, A16LET • 0.25MM U/S	Big end bearing kit	A20NFT, A16LET 0.25MM U/S	4
22	55 568 640 Big end bearing kit A20NFT, A16LET • 0.50 MM U/S	Big end bearing kit	A20NFT, A16LET 0.50 MM U/S	4
