Pos.	Part No.	Description	Usage	Qty
1	55 355 610 Distribution pipe A20NFT, A16LET	Distribution pipe	A20NFT, A16LET	1
2	11 093 971 Screw A20NFT, A16LET • M6X12	Screw	A20NFT, A16LET M6X12	2
3	55 557 799 Pressure regulator A20NFT, A16LET	Pressure regulator	A20NFT, A16LET	1
4	55 355 611 Attaching brace A20NFT, A16LET	Attaching brace	A20NFT, A16LET	1
5	55 556 021 Pipe A20NFT, A16LET	Pipe	A20NFT, A16LET	1
6	93 186 230 Injection valve A20NFT, A16LET	Injection valve	A20NFT, A16LET	4
7	93 186 313 O-ring kit A20NFT, A16LET	O-ring kit	A20NFT, A16LET	4
8	24 420 544 Spring clamp A20NFT, A16LET	Spring clamp	A20NFT, A16LET	4

Pos.	Part No.	Description	Usage	Qty
1	55 355 610 Distribution pipe A20NFT, A16LET	Distribution pipe	A20NFT, A16LET	1
2	11 093 971 Screw A20NFT, A16LET • M6X12	Screw	A20NFT, A16LET M6X12	2
3	55 557 799 Pressure regulator A20NFT, A16LET	Pressure regulator	A20NFT, A16LET	1
4	55 355 611 Attaching brace A20NFT, A16LET	Attaching brace	A20NFT, A16LET	1
5	55 556 021 Pipe A20NFT, A16LET	Pipe	A20NFT, A16LET	1
6	93 186 230 Injection valve A20NFT, A16LET	Injection valve	A20NFT, A16LET	4
7	93 186 313 O-ring kit A20NFT, A16LET	O-ring kit	A20NFT, A16LET	4
8	24 420 544 Spring clamp A20NFT, A16LET	Spring clamp	A20NFT, A16LET	4

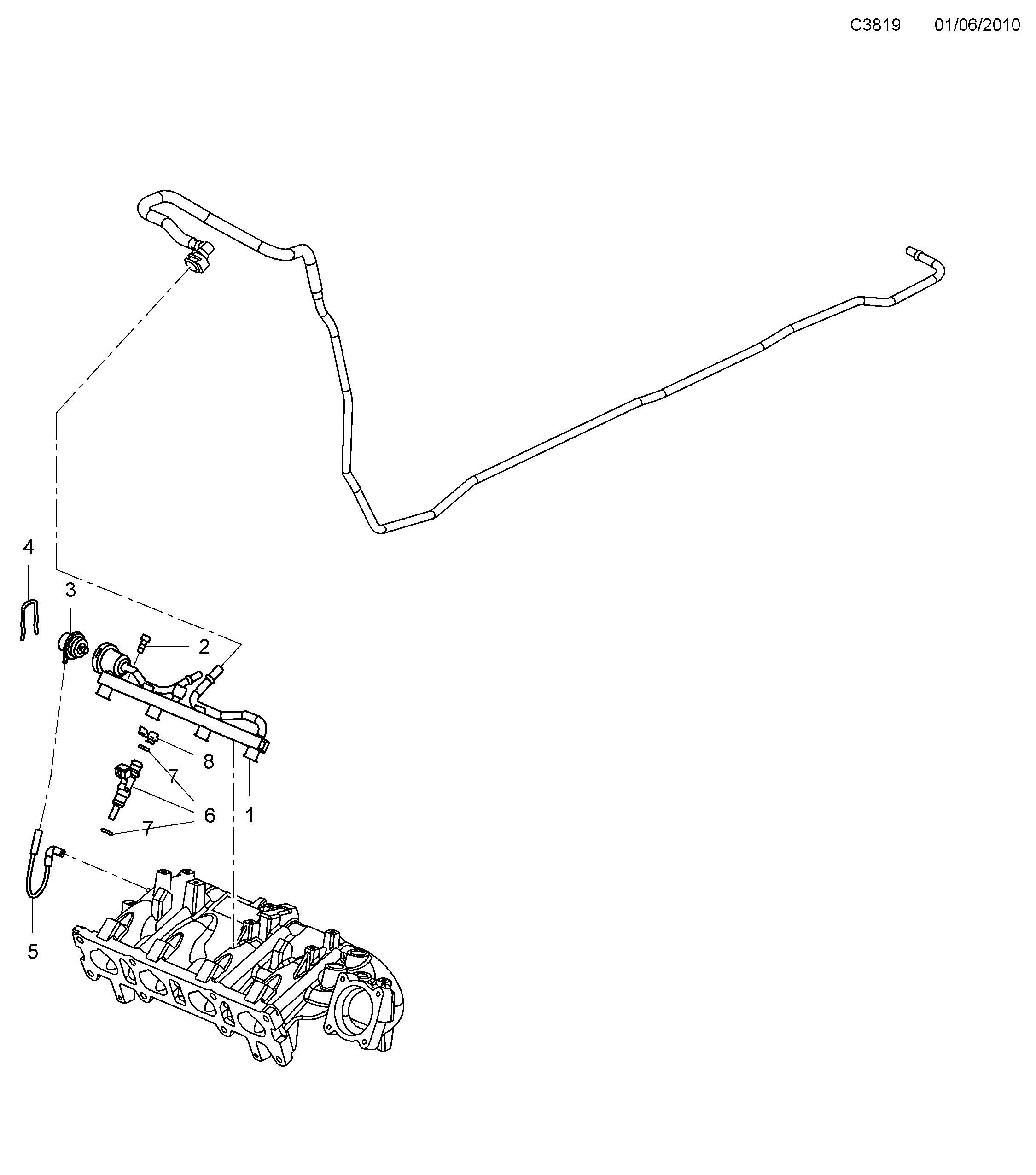

3395: Engine - Fuel system - Fuel rail
