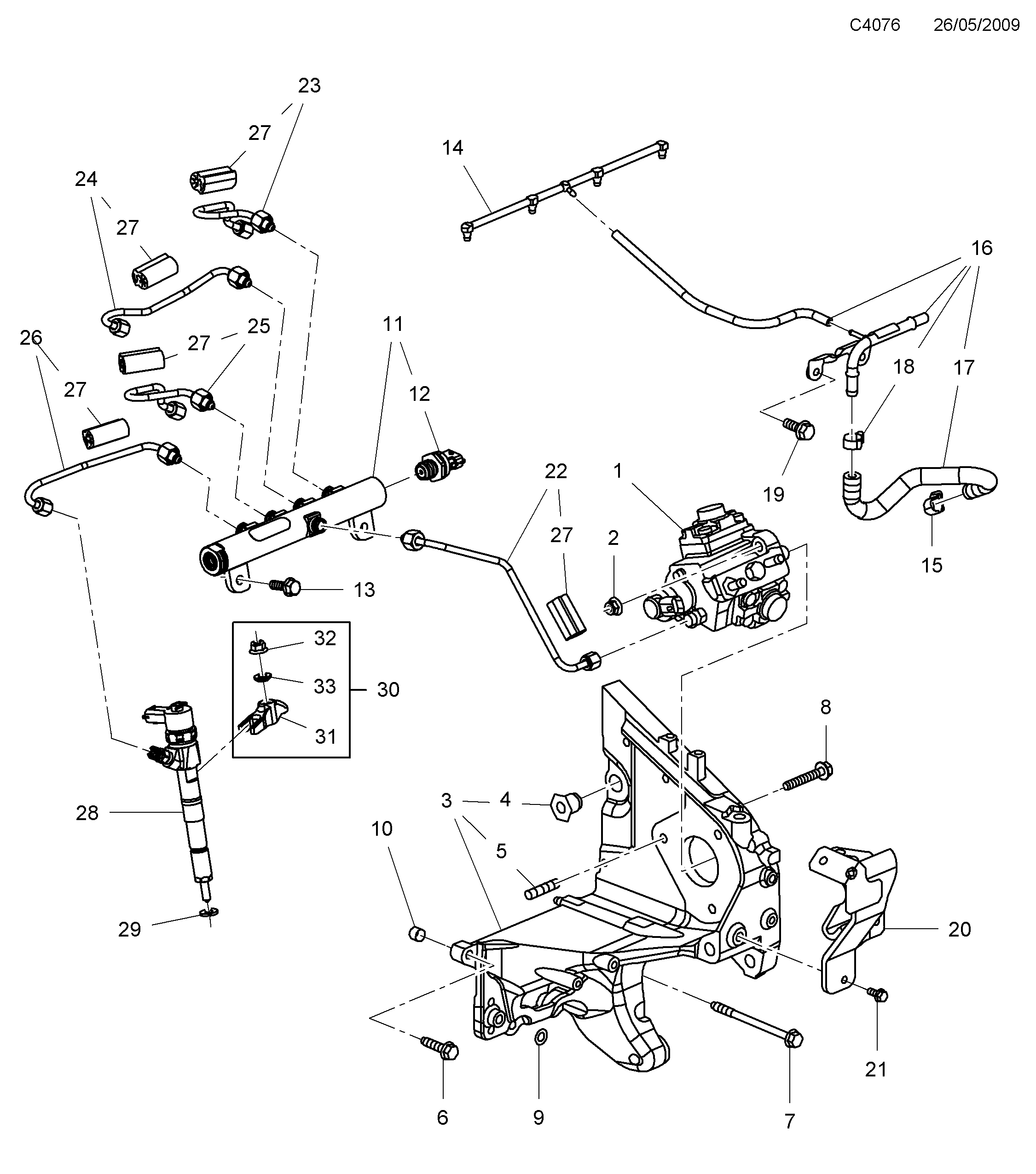

3425: Engine - Fuel system - Fuel rail - Injection pump

(2010 - 2012 | A20DTH, A20DTR) | For 9-5 (650) (2012)

100%

(N°3410)

Section 3425

(N°3450)

Pos.	Part No.	Description	Usage	Qty
1	55 571 005 Injection pump A20DTH, A20DTR	Injection pump	A20DTH, A20DTR	1
2	93 177 333 Nut A20DTH, A20DTR	Nut	A20DTH, A20DTR	3
3	55 574 720 Bracket A20DTH, A20DTR	Bracket	A20DTH, A20DTR	1
4	55 207 720 Spacer piece A20DTH, A20DTR	Spacer piece	A20DTH, A20DTR	1
5	12 855 241 Stud A20DTH, A20DTR • M8X12 \| Injection pump...	Stud	A20DTH, A20DTR M8X12 \| Injection pump...	3
6	93 178 847 Screw A20DTH, A20DTR • M8X35 \| Bracket to...	Screw	A20DTH, A20DTR M8X35 \| Bracket to...	3
7	55 207 946 Hexagon screw A20DTH, A20DTR • M8X111 \| Bracket to...	Hexagon screw	A20DTH, A20DTR M8X111 \| Bracket to...	2
8	12 855 322 Hexagon screw A20DTH, A20DTR • M8X50 \| Bracket to...	Hexagon screw	A20DTH, A20DTR M8X50 \| Bracket to...	1
9	93 179 080 Washer A20DTH, A20DTR • M8 \| Bracket to...	Washer	A20DTH, A20DTR M8 \| Bracket to...	1
10	93 178 469 Screw plug A20DTH, A20DTR • Bracket to block	Screw plug	A20DTH, A20DTR Bracket to block	2
11	55 566 047 Fuel rail A20DTH, A20DTR	Fuel rail	A20DTH, A20DTR	1
12	55 566 049 Pressure sensor A20DTH, A20DTR	Pressure sensor	A20DTH, A20DTR	1
13	93 178 829 Screw A20DTH, A20DTR • M8X25	Screw	A20DTH, A20DTR M8X25	2
14	55 566 677 Hose A20DTH, A20DTR	Hose	A20DTH, A20DTR	1
15	93 177 692 Hose clamp A20DTH, A20DTR • Fuel feed hose to...	Hose clamp	A20DTH, A20DTR Fuel feed hose to...	1
16	55 568 235 Pipe A20DTH, A20DTR	Pipe	A20DTH, A20DTR	1
17	55 568 238 Hose A20DTH, A20DTR	Hose	A20DTH, A20DTR	1
18	12 855 486 Hose clamp A20DTH, A20DTR	Hose clamp	A20DTH, A20DTR	1
19	93 178 832 Screw A20DTH, A20DTR • M6X18	Screw	A20DTH, A20DTR M6X18	1
20	55 572 050 Protecting sleeve A20DTH, A20DTR • Fuel hose	Protecting sleeve	A20DTH, A20DTR Fuel hose	1
21	93 178 832 Screw A20DTH, A20DTR • M6X18	Screw	A20DTH, A20DTR M6X18	2
22	55 573 468 Fuel pipe 2001- • A20DTH, A20DTR • Feed	Fuel pipe	2001- A20DTH, A20DTR Feed	1
27	Damper A20DTH, A20DTR • Not as separate spare...	Damper	A20DTH, A20DTR Not as separate spare...
23	55 573 470 Fuel pipe 2001- • A20DTH, A20DTR • cylinder 1	Fuel pipe	2001- A20DTH, A20DTR cylinder 1	1
27	Damper A20DTH, A20DTR • Not as separate spare...	Damper	A20DTH, A20DTR Not as separate spare...
24	55 573 469 Fuel pipe 2001- • A20DTH, A20DTR • cylinder 2	Fuel pipe	2001- A20DTH, A20DTR cylinder 2	1
27	Damper A20DTH, A20DTR • Not as separate spare...	Damper	A20DTH, A20DTR Not as separate spare...
25	55 573 471 Fuel pipe 2001- • A20DTH, A20DTR • cylinder 3	Fuel pipe	2001- A20DTH, A20DTR cylinder 3	1
27	Damper A20DTH, A20DTR • Not as separate spare...	Damper	A20DTH, A20DTR Not as separate spare...
26	55 573 472 Fuel pipe 2001- • A20DTH, A20DTR • cylinder 4	Fuel pipe	2001- A20DTH, A20DTR cylinder 4	1
27	Damper A20DTH, A20DTR • Not as separate spare...	Damper	A20DTH, A20DTR Not as separate spare...
28	55 566 050 Injector A20DTH, A20DTR	Injector	A20DTH, A20DTR	4
29	93 178 683 Gasket A20DTH, A20DTR	Gasket	A20DTH, A20DTR	4
30	12 855 249 Bracket A20DTH, A20DTR	Bracket	A20DTH, A20DTR	4
31	93 179 048 Bracket A20DTH, A20DTR	Bracket	A20DTH, A20DTR	4
32	93 177 333 Nut A20DTH, A20DTR • M8	Nut	A20DTH, A20DTR M8	4
33	93 179 049 Washer A20DTH, A20DTR	Washer	A20DTH, A20DTR	4
