Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-5 (650) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-5 (650) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (650) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

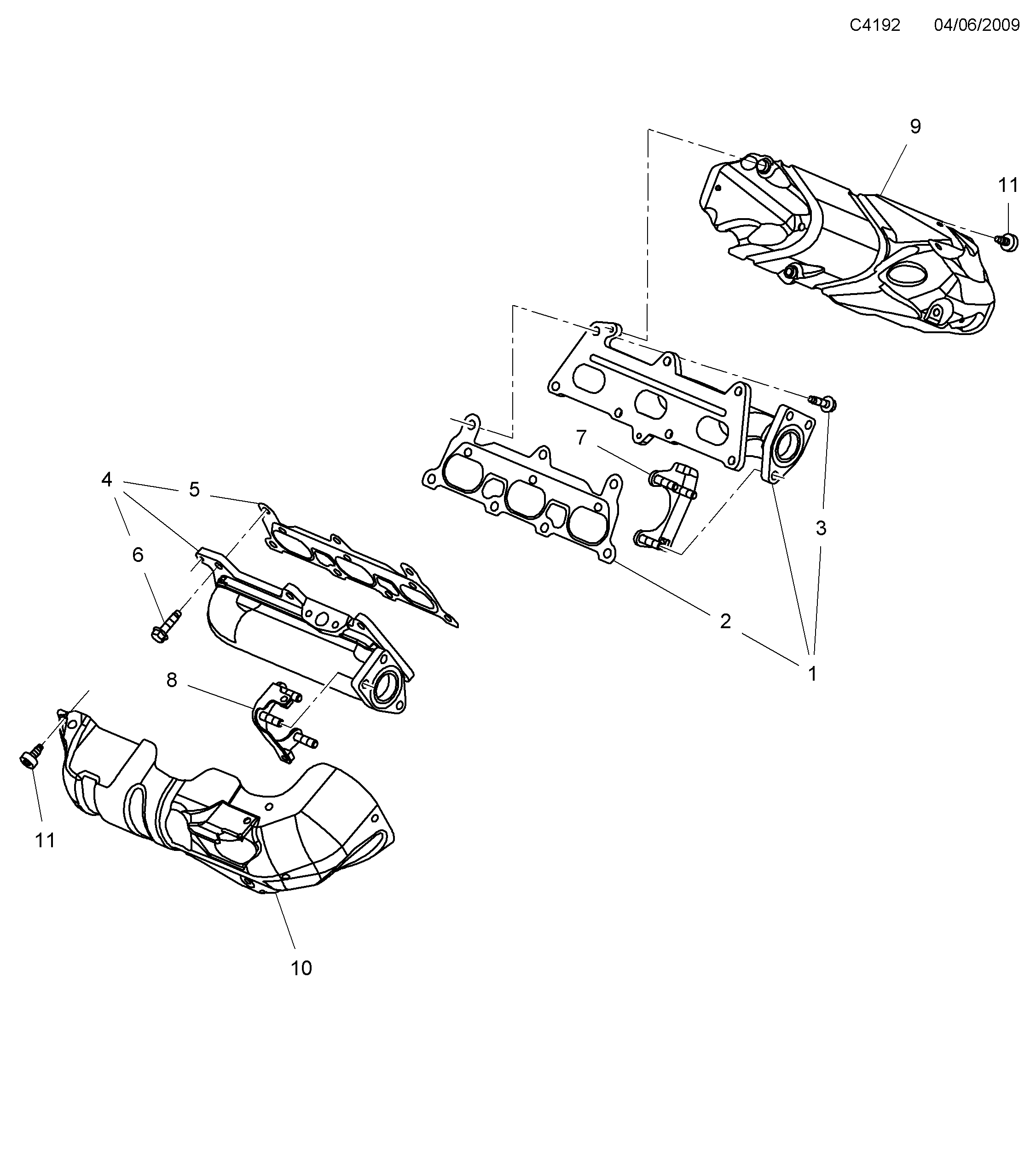

Pos.	Part No.	Description	Usage	Qty
1	55 566 820 Exhaust manifold A28NER • RH	Exhaust manifold	A28NER RH	1
2	12 565 956 Gasket A28NER	Gasket	A28NER	1
3	11 518 860 Hexagon screw A28NER • M8X30	Hexagon screw	A28NER M8X30	7
4	55 556 230 Exhaust manifold A28NER • LH	Exhaust manifold	A28NER LH	1
5	12 565 956 Gasket A28NER	Gasket	A28NER	1
6	11 518 860 Hexagon screw A28NER • M8X30	Hexagon screw	A28NER M8X30	7
7	12 755 242 Brace A28NER • RH	Brace	A28NER RH	1
8	12 755 244 Brace A28NER • LH	Brace	A28NER LH	1
9	55 564 474 Heat shield A28NER • RH	Heat shield	A28NER RH	1
10	12 791 725 Heat shield A28NER • LH	Heat shield	A28NER LH	1
11	92 138 940 Hexagon screw A28NER • M6X14	Hexagon screw	A28NER M6X14	9
	11 588 711 Hexagon screw A28NER • M6X16 \| Heat shield	Hexagon screw	A28NER M6X16 \| Heat shield	1

Pos.	Part No.	Description	Usage	Qty
1	55 566 820 Exhaust manifold A28NER • RH	Exhaust manifold	A28NER RH	1
2	12 565 956 Gasket A28NER	Gasket	A28NER	1
3	11 518 860 Hexagon screw A28NER • M8X30	Hexagon screw	A28NER M8X30	7
4	55 556 230 Exhaust manifold A28NER • LH	Exhaust manifold	A28NER LH	1
5	12 565 956 Gasket A28NER	Gasket	A28NER	1
6	11 518 860 Hexagon screw A28NER • M8X30	Hexagon screw	A28NER M8X30	7
7	12 755 242 Brace A28NER • RH	Brace	A28NER RH	1
8	12 755 244 Brace A28NER • LH	Brace	A28NER LH	1
9	55 564 474 Heat shield A28NER • RH	Heat shield	A28NER RH	1
10	12 791 725 Heat shield A28NER • LH	Heat shield	A28NER LH	1
11	92 138 940 Hexagon screw A28NER • M6X14	Hexagon screw	A28NER M6X14	9
	11 588 711 Hexagon screw A28NER • M6X16 \| Heat shield	Hexagon screw	A28NER M6X16 \| Heat shield	1

4225: Engine - Intake and exhaust system - Exhaust manifold
