    Back to Models
    Back to Groups

    4250: Engine - Intake and exhaust system - Exhaust manifold

    (2010 - 2012 | A20DTH, A20DTR) | For 9-5 (650) (2012)

    100%

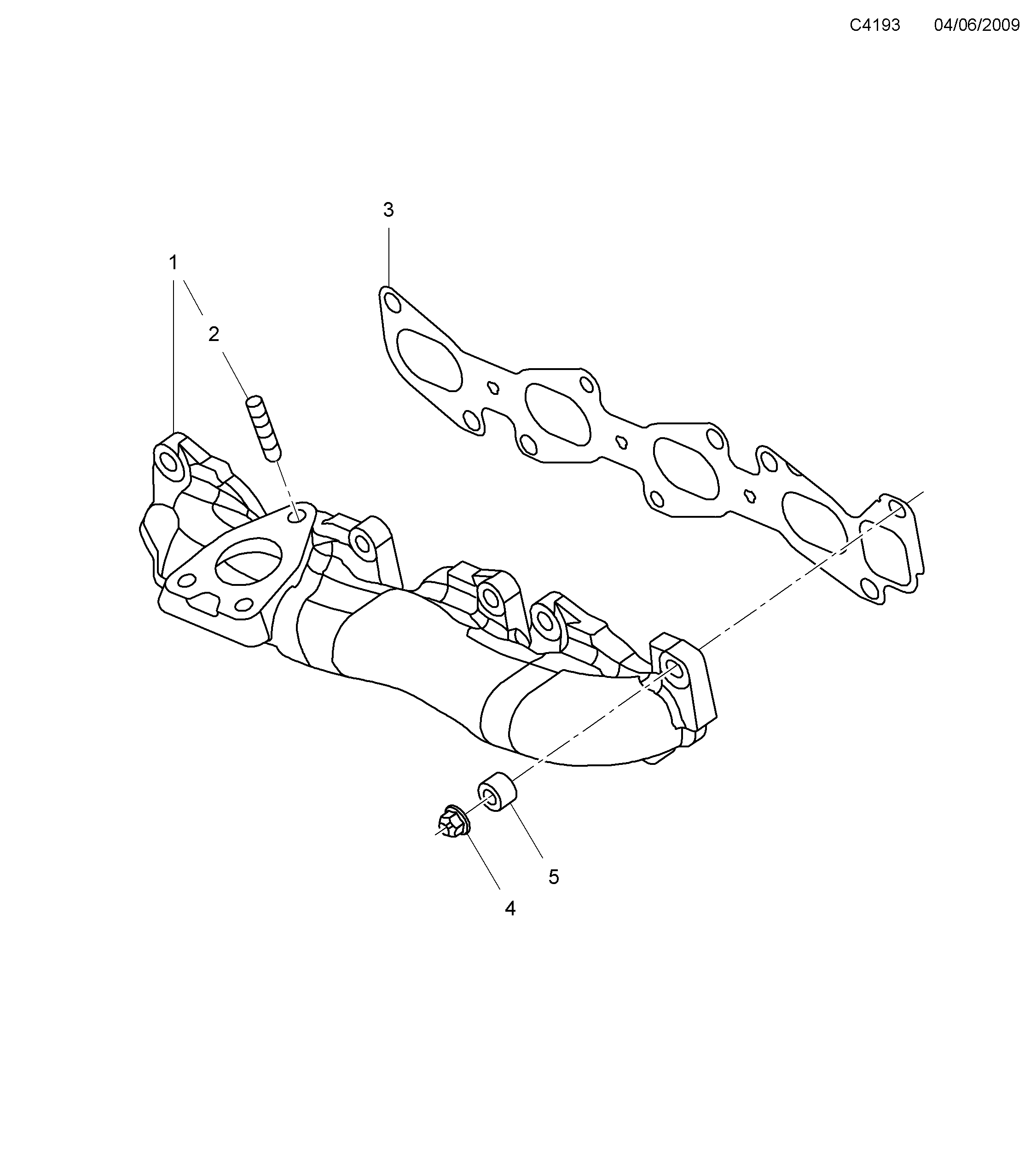

    Schéma technique Saab 9-5 (650) 2012 - Section 4250 : Intake and exhaust system
    Previous (N°4225)
    Section 4250
    Next (N°4255)
    Pos.Part No.DescriptionUsageQty
    1
    55 565 984
    Exhaust manifold

    A20DTH, A20DTR

    Exhaust manifold
    A20DTH, A20DTR
    1
    2
    55 565 986
    Stud

    A20DTH, A20DTR

    Stud
    A20DTH, A20DTR
    1
    3
    55 566 281
    Gasket

    A20DTH, A20DTR

    Gasket
    A20DTH, A20DTR
    1
    4
    55 566 282
    Flange nut

    A20DTH, A20DTR

    Flange nut
    A20DTH, A20DTR
    9
    5
    55 566 280
    Spacer piece

    A20DTH, A20DTR

    Spacer piece
    A20DTH, A20DTR
    9
