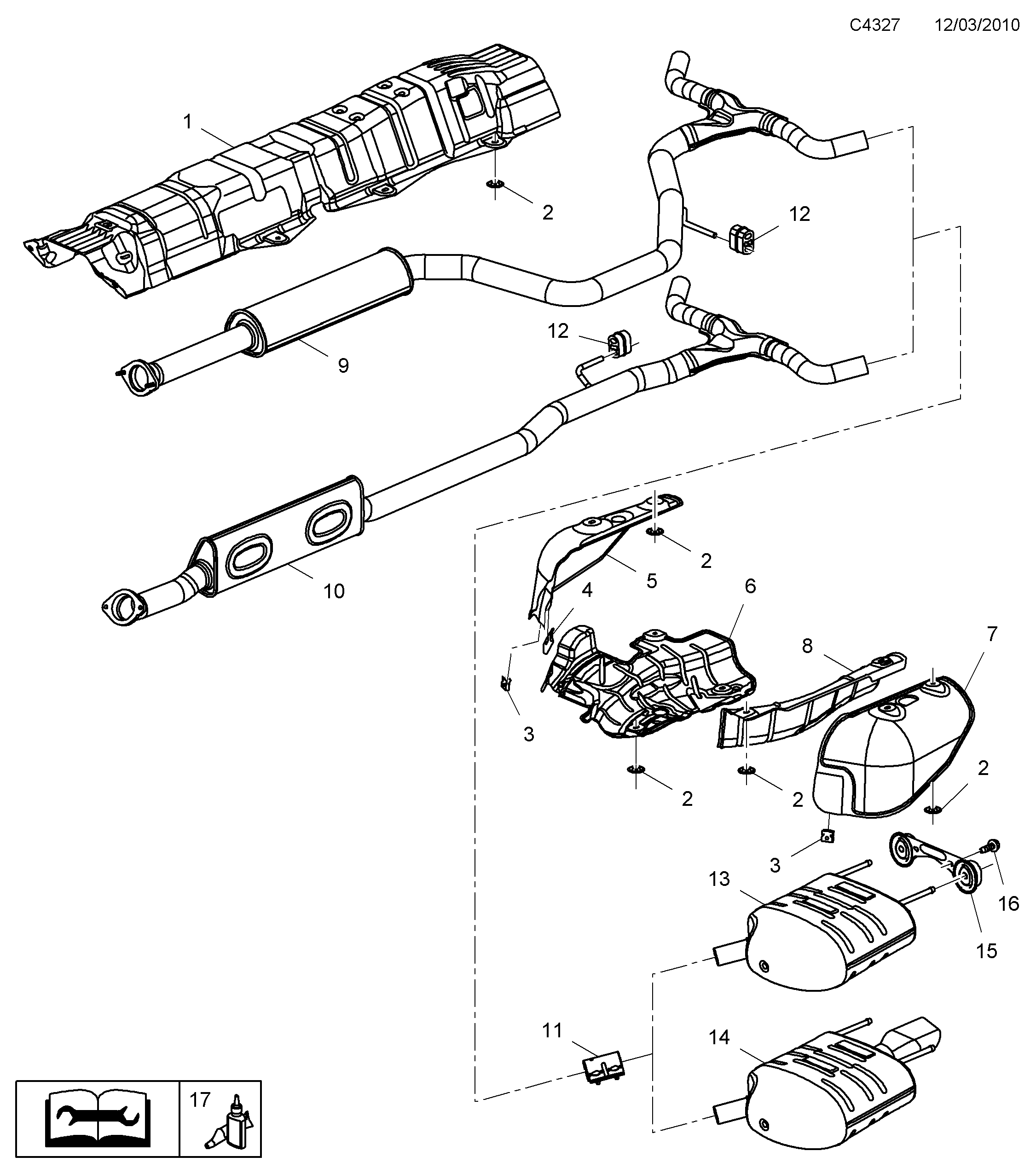

4605: Engine - Intake and exhaust system - Exhaust system - Rear

(2010 - 2012 | A20NFT, A16LET) | For 9-5 (650) (2012)

100%

(N°4600)

Section 4605

(N°4610)

Pos.	Part No.	Description	Usage	Qty
1	13 238 805 Heat shield A20NFT, A16LET • Centre	Heat shield	A20NFT, A16LET Centre	1
2	13 245 749 Clamping spring A20NFT, A16LET • Heat shield	Clamping spring	A20NFT, A16LET Heat shield	X
3	24 465 252 Fastener A20NFT, A16LET • Heat shield Rear	Fastener	A20NFT, A16LET Heat shield Rear	4
4	13 327 440 Fastener A20NFT, A16LET • Heat shield Rear	Fastener	A20NFT, A16LET Heat shield Rear	1
5	13 312 202 Heat shield A20NFT, A16LET • RH \| Rear Outer	Heat shield	A20NFT, A16LET RH \| Rear Outer	1
6	13 238 807 Heat shield A20NFT, A16LET • RH \| Rear Inner	Heat shield	A20NFT, A16LET RH \| Rear Inner	1
7	13 247 824 Heat shield A20NFT, A16LET • LH \| Rear Outer	Heat shield	A20NFT, A16LET LH \| Rear Outer	1
8	13 238 806 Heat shield A20NFT, A16LET • LH \| Rear Inner	Heat shield	A20NFT, A16LET LH \| Rear Inner	1
9	13 332 297 Silencer A20NFT, A16LET • Centre Less All Wheel...	Silencer	A20NFT, A16LET Centre Less All Wheel...	1
10	13 332 308 Silencer A20NFT, A16LET • Centre With All Wheel...	Silencer	A20NFT, A16LET Centre With All Wheel...	1
11	13 278 367 Clamp A20NFT, A16LET • 45MM	Clamp	A20NFT, A16LET 45MM	2
12	90 466 668 Rubber mounting A20NFT, A16LET	Rubber mounting	A20NFT, A16LET	X
13	13 332 319 Silencer A20NFT, A16LET • RH \| Except chrome...	Silencer	A20NFT, A16LET RH \| Except chrome...	1
13	13 332 313 Silencer A20NFT, A16LET • RH \| Except chrome...	Silencer	A20NFT, A16LET RH \| Except chrome...	1
13	13 332 318 Silencer A20NFT, A16LET • LH \| Except chrome...	Silencer	A20NFT, A16LET LH \| Except chrome...	1
13	13 332 312 Silencer A20NFT, A16LET • LH \| Except chrome...	Silencer	A20NFT, A16LET LH \| Except chrome...	1
14	13 332 307 Silencer A20NFT, A16LET • RH \| With chrome...	Silencer	A20NFT, A16LET RH \| With chrome...	1
14	13 332 310 Silencer A20NFT, A16LET • RH \| With chrome...	Silencer	A20NFT, A16LET RH \| With chrome...	1
14	13 332 306 Silencer A20NFT, A16LET • LH \| With chrome...	Silencer	A20NFT, A16LET LH \| With chrome...	1
14	13 332 309 Silencer A20NFT, A16LET • LH \| With chrome...	Silencer	A20NFT, A16LET LH \| With chrome...	1
15	13 229 794 Suspension A20NFT, A16LET • Rear Exhaust pipe mounting	Suspension	A20NFT, A16LET Rear Exhaust pipe mounting	2
16	11 588 723 Screw A20NFT, A16LET • M8X25 \| Suspension Exhaust...	Screw	A20NFT, A16LET M8X25 \| Suspension Exhaust...	2
17	90 513 210 Mounting paste A20NFT, A16LET • 120G	Mounting paste	A20NFT, A16LET 120G	1
