Pos.	Part No.	Description	Usage	Qty
2	13 300 195 Fan A28NER • RH	Fan	A28NER RH	1
3	13 300 194 Fan A28NER, A28NET • LH	Fan	A28NER, A28NET LH	1
4	13 278 312 Screw A28NER	Screw	A28NER	6
5	90 561 306 Screw A28NER • cooling fan	Screw	A28NER cooling fan	1

Pos.	Part No.	Description	Usage	Qty
2	13 300 195 Fan A28NER • RH	Fan	A28NER RH	1
3	13 300 194 Fan A28NER, A28NET • LH	Fan	A28NER, A28NET LH	1
4	13 278 312 Screw A28NER	Screw	A28NER	6
5	90 561 306 Screw A28NER • cooling fan	Screw	A28NER cooling fan	1

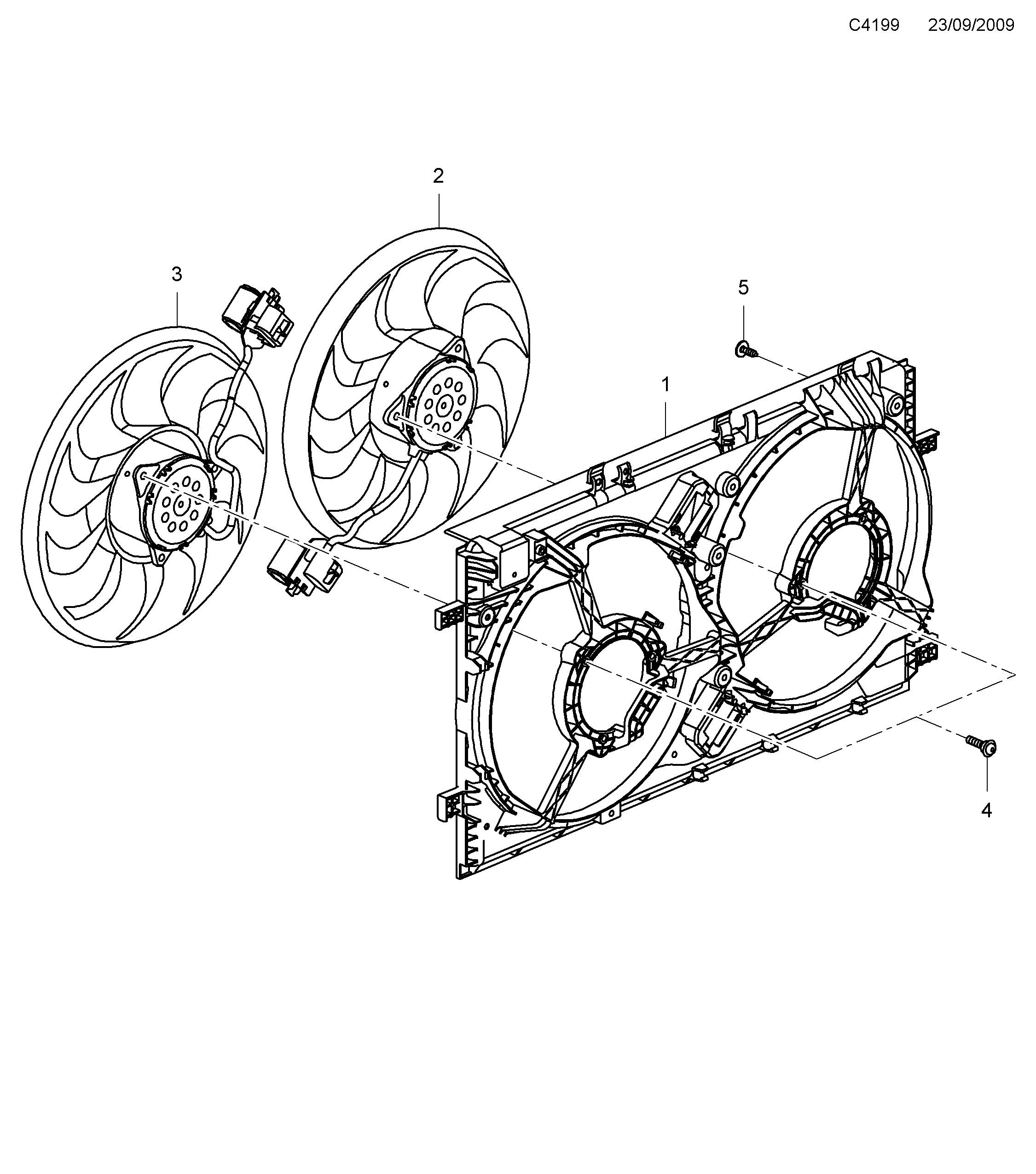

5410: Engine - Cooling system - Fan motor
