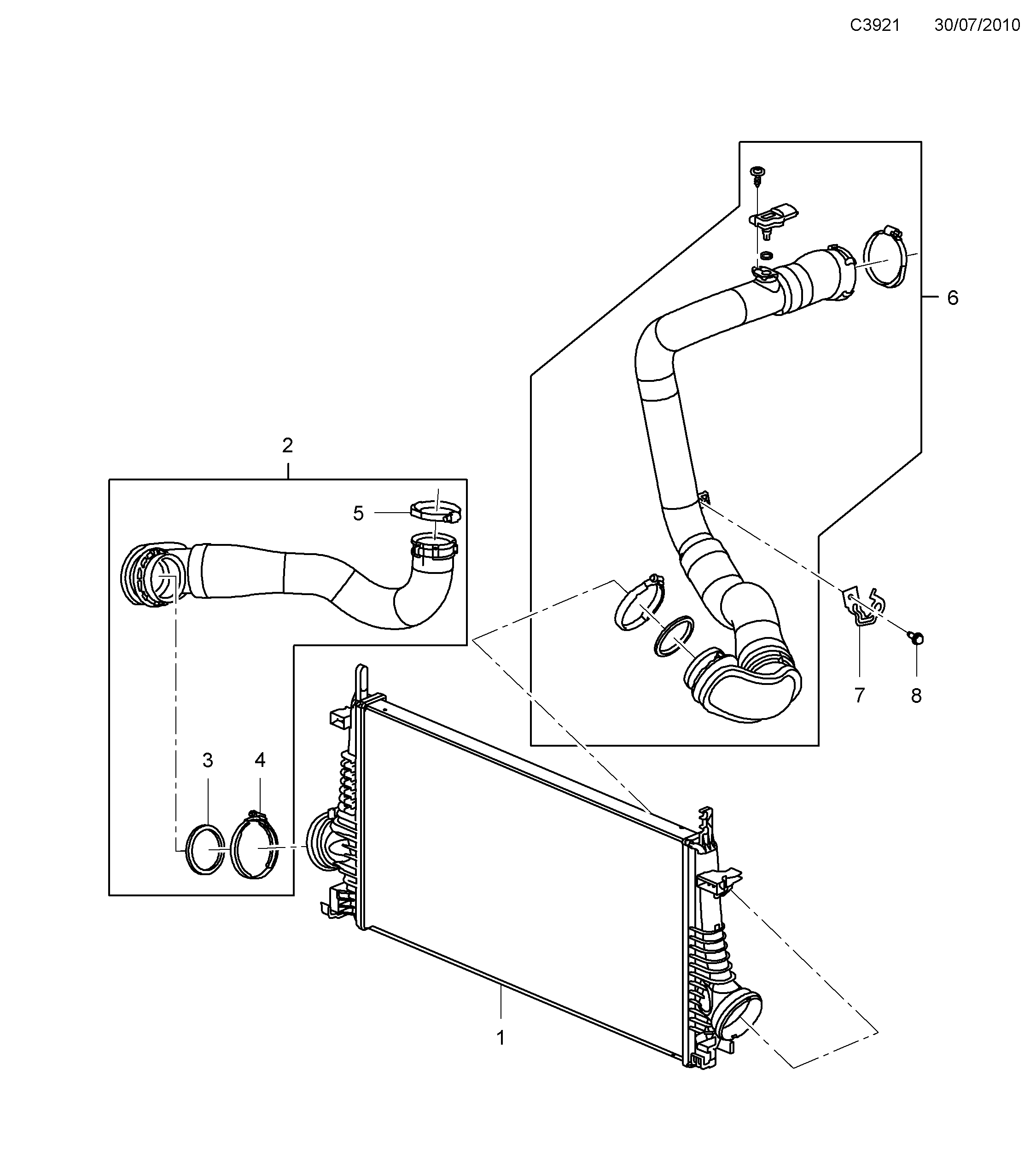

5495: Engine - Cooling system - Charge air cooler
(2011 - 2012 | A20NFT, A16LET) | For 9-5 (650) (2012)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 241 751 Charge air cooler A20NFT, A16LET | 1 | |
| 2 | 13 257 586 Hose A20NFT, A16LET • Inlet | 1 | |
| 3 | 13 265 349 Seal A20NFT, A16LET | 1 | |
| 4 | 13 280 718 Hose clamp A20NFT, A16LET | 1 | |
| 5 | 24 442 225 Hose clamp A20NFT, A16LET | 1 | |
| 6 | 13 242 122 Hose A20NFT, A16LET • Outlet | 1 | |
| 7 | 13 240 178 Bracket A20NFT, A16LET • Outlet Hose | 1 | |
| 8 | 11 588 712 Screw A20NFT, A16LET • M6X20 | Outlet Hose | 1 |
