Pos.	Part No.	Description	Usage	Qty
3	13 265 349 Seal A20NFT, A16LET	Seal	A20NFT, A16LET	1
4	13 280 718 Hose clamp A20NFT, A16LET	Hose clamp	A20NFT, A16LET	1
6	13 306 048 Screw A20NFT, A16LET	Screw	A20NFT, A16LET	3
7	13 265 351 Seal A20NFT, A16LET	Seal	A20NFT, A16LET	1
8	13 306 047 Heat shield A20NFT, A16LET	Heat shield	A20NFT, A16LET	1
10	11 097 422 Torx screw A20NFT, A16LET • M8X25	Torx screw	A20NFT, A16LET M8X25	1
11	11 588 712 Screw A20NFT, A16LET • M6X20	Screw	A20NFT, A16LET M6X20	1
12	11 507 067 Nut A20NFT, A16LET	Nut	A20NFT, A16LET	1
13	13 220 167 Hose A20NFT, A16LET • Outlet	Hose	A20NFT, A16LET Outlet	1
14	13 280 719 Seal A20NFT, A16LET	Seal	A20NFT, A16LET	1
15	13 280 718 Hose clamp A20NFT, A16LET	Hose clamp	A20NFT, A16LET	1
16	24 468 104 Hose clamp A20NFT, A16LET	Hose clamp	A20NFT, A16LET	1
17	Temperature sensorIntake and exhaust system A20NFT, A16LET	Temperature sensorIntake and exhaust system A20NFT, A16LET
18	ScrewIntake and exhaust system A20NFT, A16LET	ScrewIntake and exhaust system A20NFT, A16LET

Pos.	Part No.	Description	Usage	Qty
3	13 265 349 Seal A20NFT, A16LET	Seal	A20NFT, A16LET	1
4	13 280 718 Hose clamp A20NFT, A16LET	Hose clamp	A20NFT, A16LET	1
6	13 306 048 Screw A20NFT, A16LET	Screw	A20NFT, A16LET	3
7	13 265 351 Seal A20NFT, A16LET	Seal	A20NFT, A16LET	1
8	13 306 047 Heat shield A20NFT, A16LET	Heat shield	A20NFT, A16LET	1
10	11 097 422 Torx screw A20NFT, A16LET • M8X25	Torx screw	A20NFT, A16LET M8X25	1
11	11 588 712 Screw A20NFT, A16LET • M6X20	Screw	A20NFT, A16LET M6X20	1
12	11 507 067 Nut A20NFT, A16LET	Nut	A20NFT, A16LET	1
13	13 220 167 Hose A20NFT, A16LET • Outlet	Hose	A20NFT, A16LET Outlet	1
14	13 280 719 Seal A20NFT, A16LET	Seal	A20NFT, A16LET	1
15	13 280 718 Hose clamp A20NFT, A16LET	Hose clamp	A20NFT, A16LET	1
16	24 468 104 Hose clamp A20NFT, A16LET	Hose clamp	A20NFT, A16LET	1
17	Temperature sensorIntake and exhaust system A20NFT, A16LET	Temperature sensorIntake and exhaust system A20NFT, A16LET
18	ScrewIntake and exhaust system A20NFT, A16LET	ScrewIntake and exhaust system A20NFT, A16LET

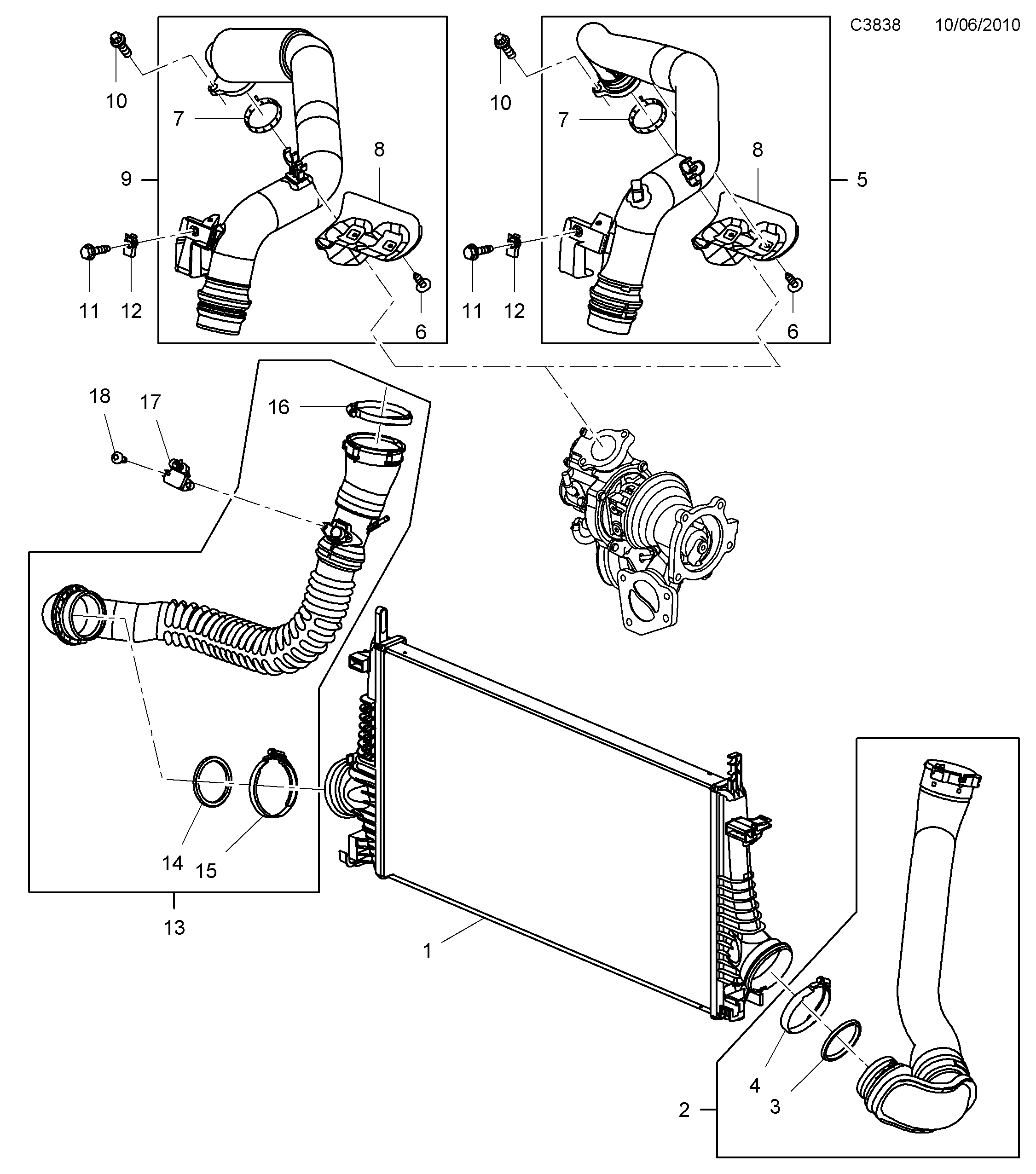

5500: Engine - Cooling system - Charge air cooler
