Pos.	Part No.	Description	Usage	Qty
2	13 220 161 Hose A28NER • Inlet	Hose	A28NER Inlet	1
3	13 265 349 Seal A28NER	Seal	A28NER	1
4	13 280 718 Hose clamp A28NER	Hose clamp	A28NER	1
5	13 242 139 Hose A28NER • Outlet	Hose	A28NER Outlet	1
6	13 280 719 Seal A28NER	Seal	A28NER	1
7	13 280 718 Hose clamp A28NER	Hose clamp	A28NER	1
8	24 442 228 Hose clamp A28NER	Hose clamp	A28NER	1
9	55 563 355 Bracket A28NER • Air duct	Bracket	A28NER Air duct	1
10	11 900 026 Hexagon screw A28NER	Hexagon screw	A28NER	2
11	11 588 712 Screw A28NER • M6X20	Screw	A28NER M6X20	3
12	13 220 171 Pipe A28NER • Outlet	Pipe	A28NER Outlet	1
13	93 170 309 Sensor A28NER	Sensor	A28NER	1
14	92 153 222 Screw A28NER	Screw	A28NER	1
15	11 519 376 Screw A28NER • M6X20	Screw	A28NER M6X20	1
16	13 240 173 Pipe bracket A28NER	Pipe bracket	A28NER	1

Pos.	Part No.	Description	Usage	Qty
2	13 220 161 Hose A28NER • Inlet	Hose	A28NER Inlet	1
3	13 265 349 Seal A28NER	Seal	A28NER	1
4	13 280 718 Hose clamp A28NER	Hose clamp	A28NER	1
5	13 242 139 Hose A28NER • Outlet	Hose	A28NER Outlet	1
6	13 280 719 Seal A28NER	Seal	A28NER	1
7	13 280 718 Hose clamp A28NER	Hose clamp	A28NER	1
8	24 442 228 Hose clamp A28NER	Hose clamp	A28NER	1
9	55 563 355 Bracket A28NER • Air duct	Bracket	A28NER Air duct	1
10	11 900 026 Hexagon screw A28NER	Hexagon screw	A28NER	2
11	11 588 712 Screw A28NER • M6X20	Screw	A28NER M6X20	3
12	13 220 171 Pipe A28NER • Outlet	Pipe	A28NER Outlet	1
13	93 170 309 Sensor A28NER	Sensor	A28NER	1
14	92 153 222 Screw A28NER	Screw	A28NER	1
15	11 519 376 Screw A28NER • M6X20	Screw	A28NER M6X20	1
16	13 240 173 Pipe bracket A28NER	Pipe bracket	A28NER	1

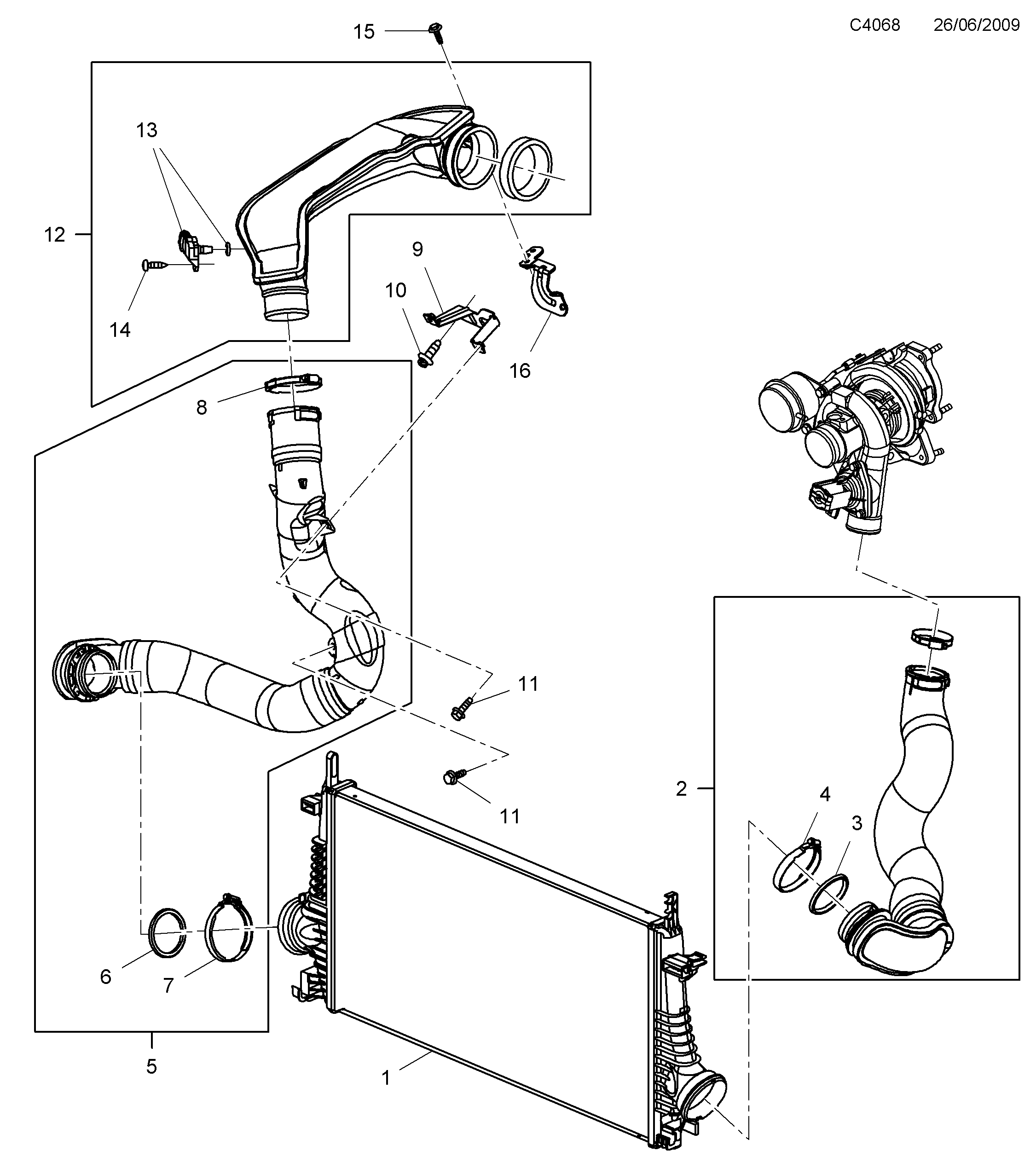

5550: Engine - Cooling system - Charge air cooler
