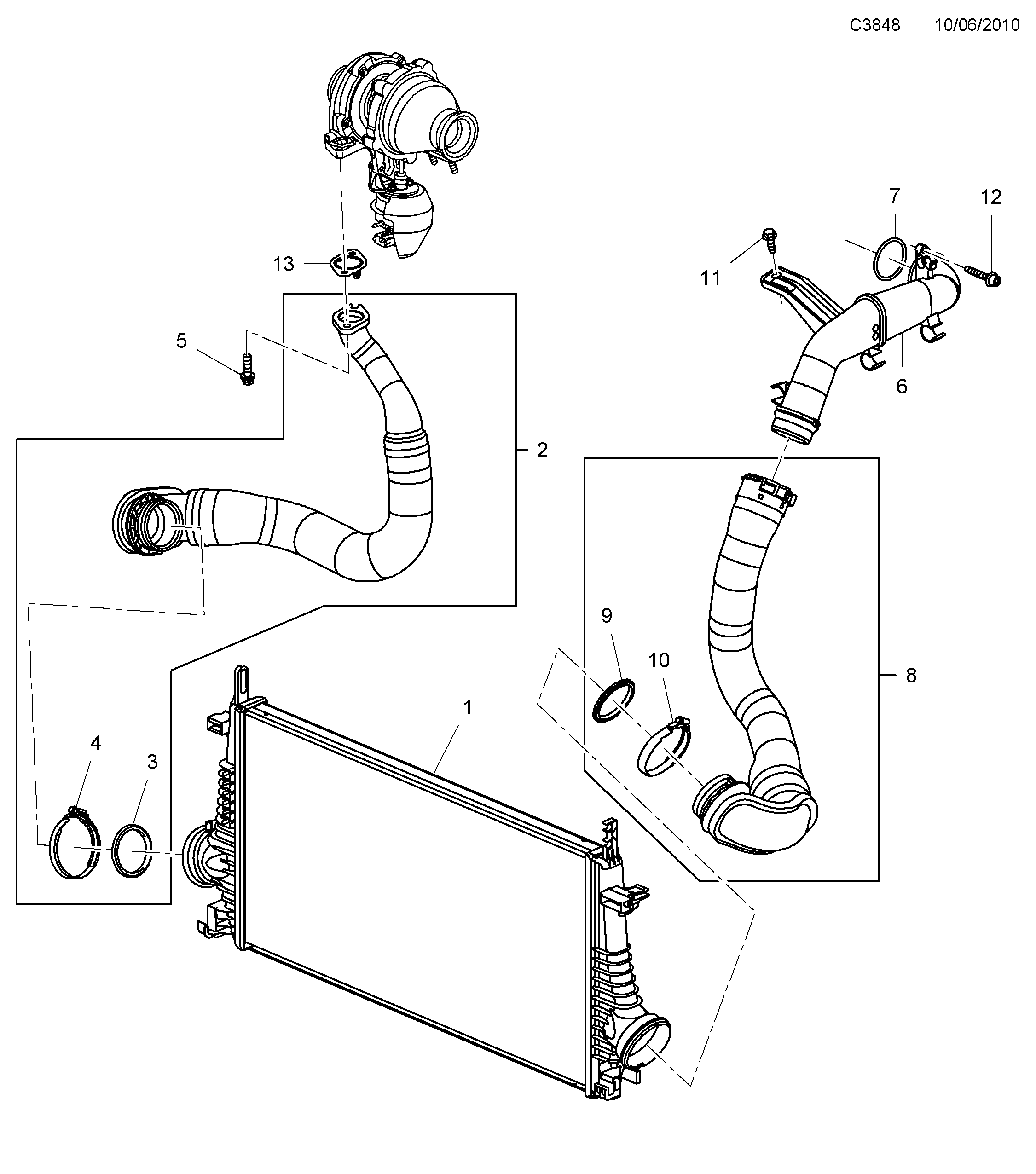

5575: Engine - Cooling system - Charge air cooler
(2010 - 2012 | A20DTH, A20DTR) | For 9-5 (650) (2012)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 13 241 751 Charge air cooler A20DTH, A20DTR | 1 | |
| 2 | 20 911 707 Hose A20DTH, A20DTR • Inlet | 1 | |
| 3 | 13 265 349 Seal A20DTH, A20DTR | 1 | |
| 4 | 13 280 718 Hose clamp A20DTH, A20DTR | 1 | |
| 5 | 11 097 422 Torx screw A20DTH, A20DTR • M8X25 | 1 | |
| 6 | 13 240 176 Pipe A20DTH, A20DTR • Outlet | 1 | |
| 7 | 55 351 945 Gasket A20DTH, A20DTR • Outlet hose | 1 | |
| 8 | 13 242 121 Pipe A20DTH, A20DTR • Outlet | 1 | |
| 9 | 13 280 719 Seal A20DTH, A20DTR | 1 | |
| 10 | 13 280 718 Hose clamp A20DTH, A20DTR | 1 | |
| 11 | 11 588 712 Screw A20DTH, A20DTR • M6X20 | 1 | |
| 12 | 13 294 059 Screw A20DTH, A20DTR • M6X33 | 3 | |
| 13 | 13 247 992 Gasket A20DTH, A20DTR • Inlet hose | 1 |
