Pos.	Part No.	Description	Usage	Qty
1	13 220 158 Pipe	Pipe		1
2	24 456 963 Clip	Clip		1
3	13 278 294 Fitting	Fitting		2
4	11 516 075 Nut M6	Nut	M6	1
5	11 562 514 Stud M6	Stud	M6	1
6	93 183 012 Sealing ring	Sealing ring		2

Pos.	Part No.	Description	Usage	Qty
1	13 220 158 Pipe	Pipe		1
2	24 456 963 Clip	Clip		1
3	13 278 294 Fitting	Fitting		2
4	11 516 075 Nut M6	Nut	M6	1
5	11 562 514 Stud M6	Stud	M6	1
6	93 183 012 Sealing ring	Sealing ring		2

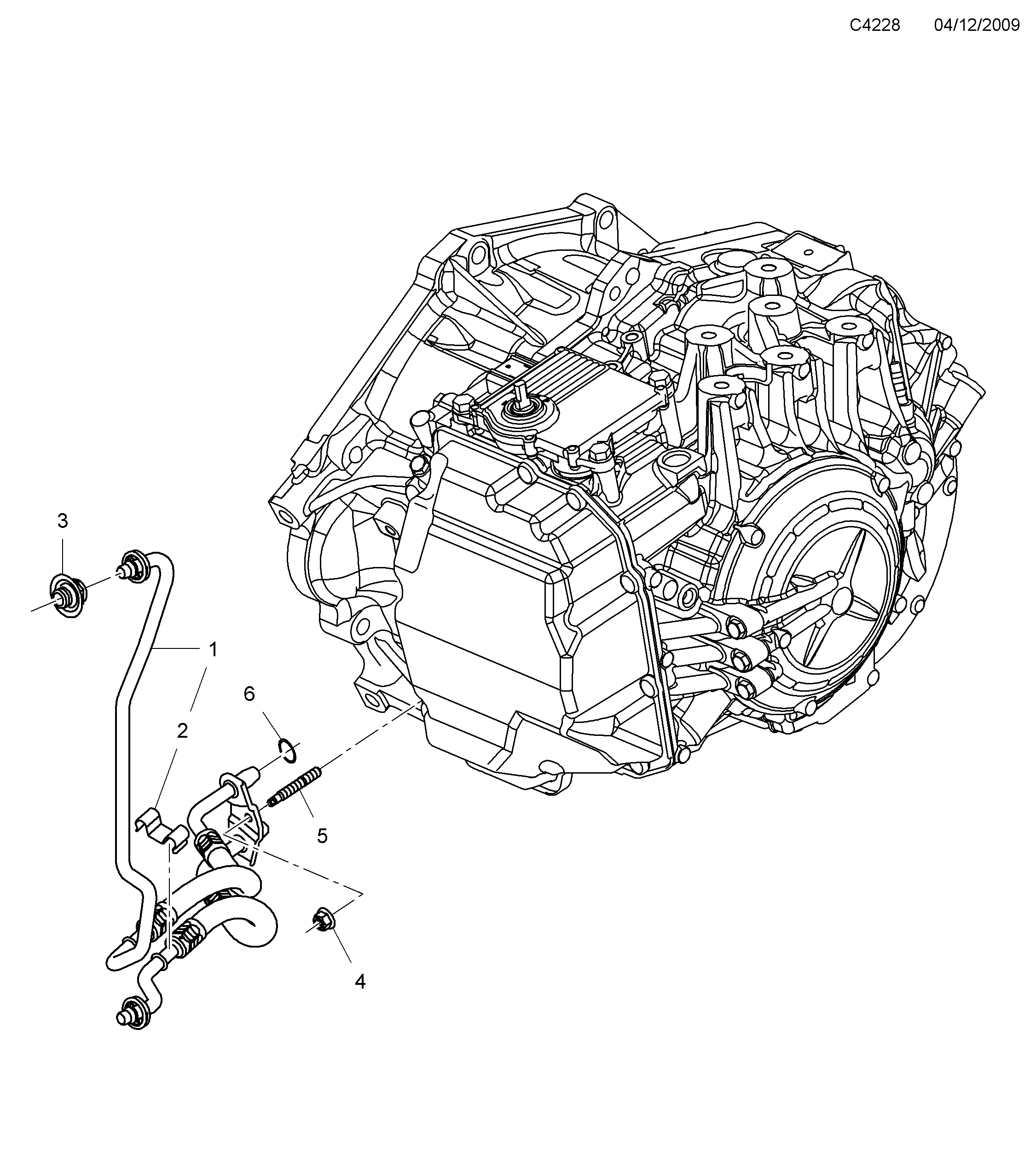

5700: Engine - Cooling system - Oil cooler - Transmission
