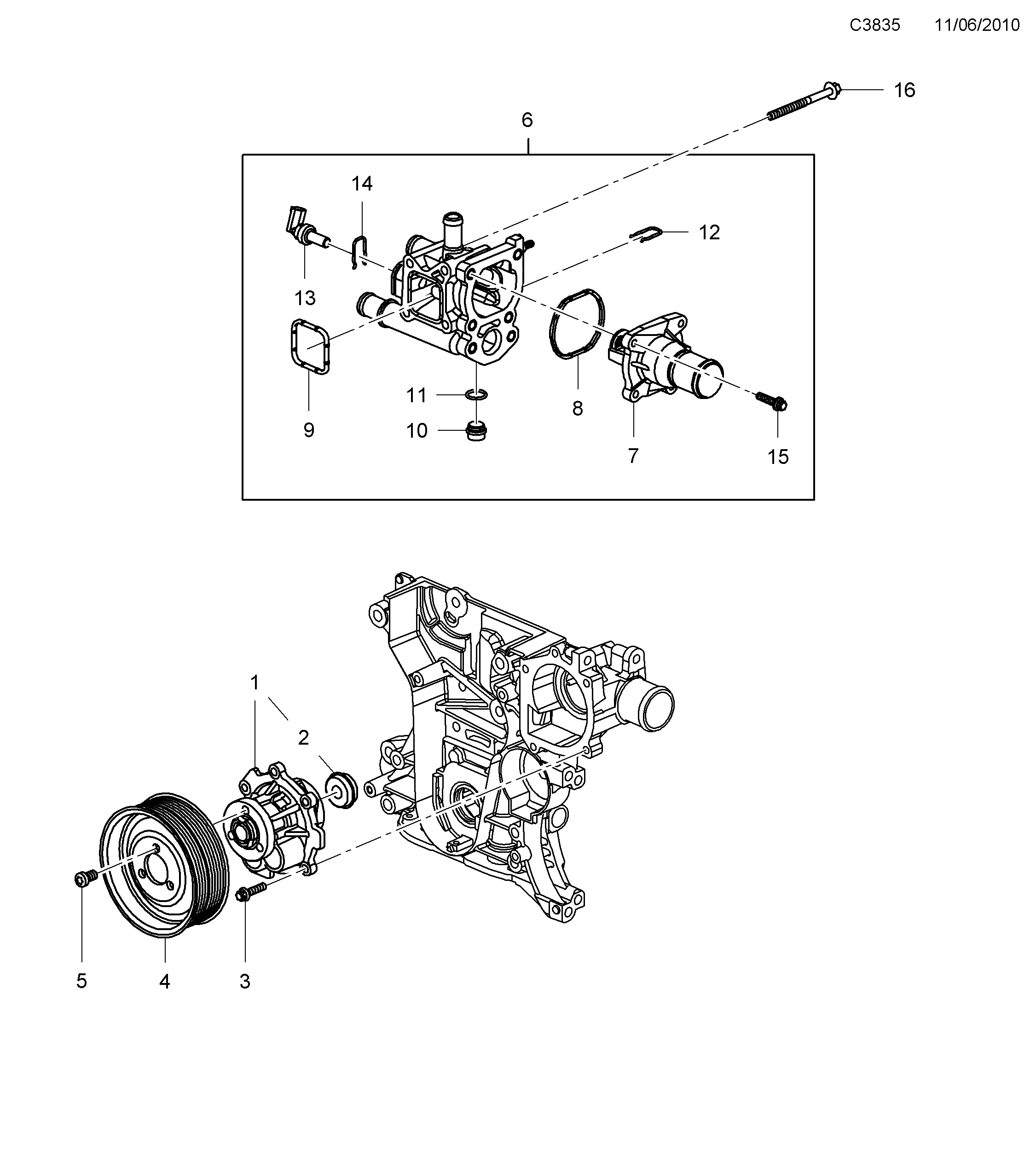

5795: Engine - Cooling system - Coolant pump - Thermostat
(2011 - 2012 | A20NFT, A16LET) | For 9-5 (650) (2012)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 24 405 895 Water pump A20NFT, A16LET | 1 | |
| 2 | 24 467 359 Seal A20NFT, A16LET | 1 | |
| 3 | 11 099 521 Screw A20NFT, A16LET • M6X25 | 5 | |
| 4 | 55 565 004 Pulley A20NFT, A16LET | 1 | |
| 5 | 11 097 401 Screw A20NFT, A16LET • M8X12 | 3 | |
| 6 | 12 992 382 Housing A20NFT, A16LET | 1 | |
| 7 | 24 435 102 Thermostat housing A20NFT, A16LET | 1 | |
| 8 | 55 351 449 Gasket A20NFT, A16LET | 1 | |
| 9 | 55 353 353 Gasket A20NFT, A16LET | 1 | |
| 10 | 55 555 985 Plug A20NFT, A16LET | 1 | |
| 11 | 55 555 984 O-ring A20NFT, A16LET | 1 | |
| 12 | 55 555 982 Retainer A20NFT, A16LET | 1 | |
| 13 | Temperature sensorIntake and exhaust system A20NFT, A16LET | ||
| 14 | RetainerIntake and exhaust system A20NFT, A16LET | ||
| 15 | 11 099 521 Screw A20NFT, A16LET • M6X25 | 4 | |
| 16 | 11 094 211 Torx screw A20NFT, A16LET • M6 X 70 | 4 |
