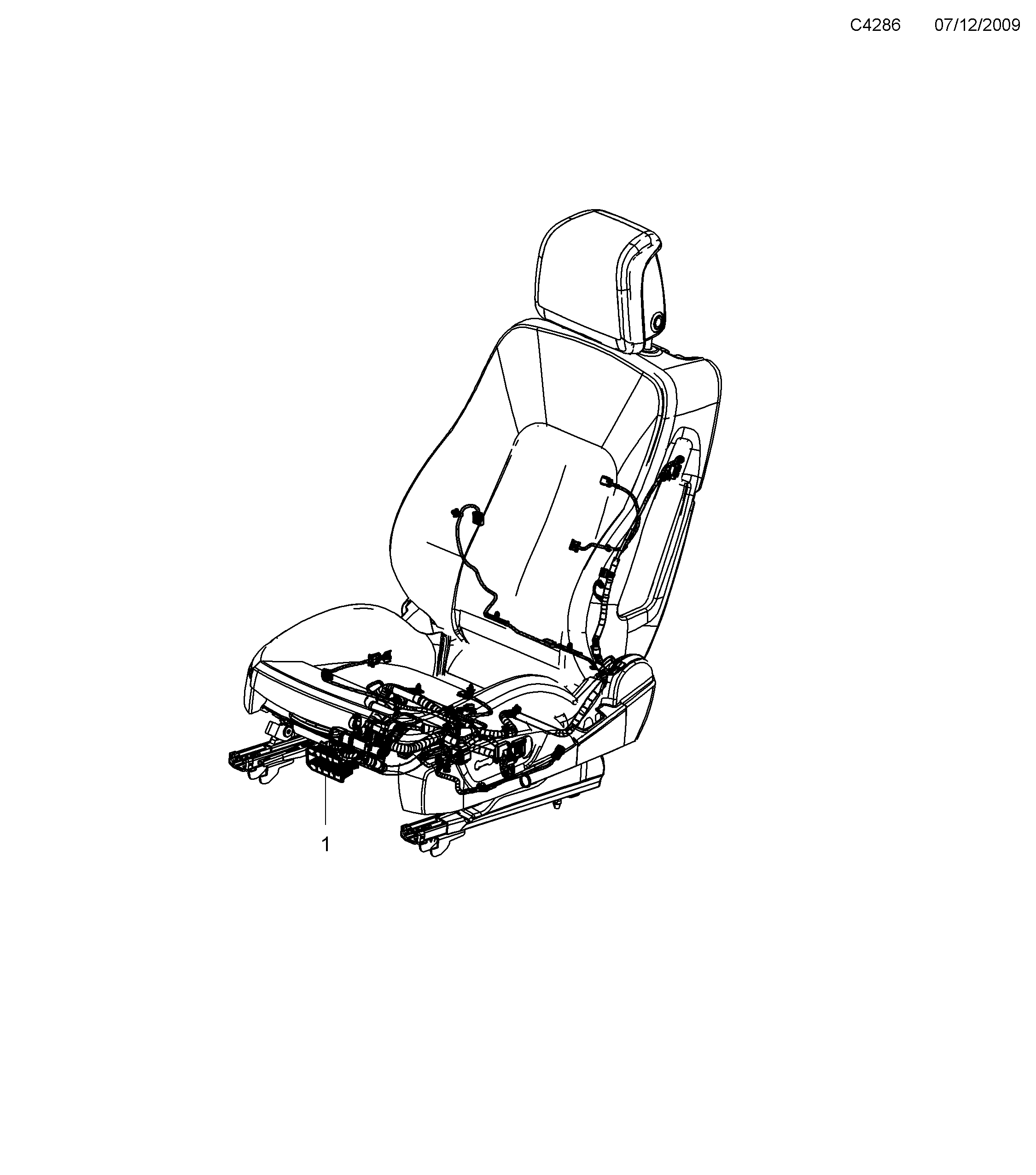

4750: Electrical, general - Wiring and fuses - Front seat

(2010 - 2012) | For 9-5 (650) (2012)

100%

(N°4700)

Section 4750

(N°4800)

Pos.	Part No.	Description	Usage	Qty
1	13 287 085 Cable harness LHD • LH \| For cars...	Cable harness	LHD LH \| For cars...	1
1	13 287 087 Cable harness LHD • LH \| For cars...	Cable harness	LHD LH \| For cars...	1
1	13 290 378 Cable harness LHD • LH \| For cars...	Cable harness	LHD LH \| For cars...	1
1	13 288 390 Cable harness LHD • LH \| For cars...	Cable harness	LHD LH \| For cars...	1
1	13 287 093 Cable harness LHD • LH \| For cars...	Cable harness	LHD LH \| For cars...	1
1	13 287 095 Cable harness LHD • LH \| Without memory...	Cable harness	LHD LH \| Without memory...	1
1	12 848 557 Cable harness LHD • LH \| For cars...	Cable harness	LHD LH \| For cars...	1
1	13 317 072 Cable harness LHD • LH \| For cars...	Cable harness	LHD LH \| For cars...	1
1	13 317 083 Cable harness LHD • RH \| For cars...	Cable harness	LHD RH \| For cars...	1
1	12 848 550 Cable harness LHD • RH \| For cars...	Cable harness	LHD RH \| For cars...	1
1	13 287 109 Cable harness LHD • RH \| For cars...	Cable harness	LHD RH \| For cars...	1
1	13 287 111 Cable harness LHD • RH \| For cars...	Cable harness	LHD RH \| For cars...	1
1	12 848 548 Cable harness LHD • RH \| For cars...	Cable harness	LHD RH \| For cars...	1
1	13 288 392 Cable harness LHD • RH \| Electric, multi...	Cable harness	LHD RH \| Electric, multi...	1
1	12 848 547 Cable harness LHD • RH \| Electric, multi...	Cable harness	LHD RH \| Electric, multi...	1
1	13 288 391 Cable harness LHD • RH \| For cars...	Cable harness	LHD RH \| For cars...	1
1	12 848 552 Cable harness LHD • RH \| For cars...	Cable harness	LHD RH \| For cars...	1
1	13 317 084 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	12 848 549 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	13 287 110 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	13 287 112 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	12 848 551 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	12 848 553 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	13 317 082 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	12 848 554 Cable harness RHD • LH \| For cars...	Cable harness	RHD LH \| For cars...	1
1	13 317 081 Cable harness RHD • LH	Cable harness	RHD LH	1
1	13 287 086 Cable harness RHD • RH \| For cars...	Cable harness	RHD RH \| For cars...	1
1	13 287 088 Cable harness RHD • RH \| For cars...	Cable harness	RHD RH \| For cars...	1
1	13 317 076 Cable harness RHD • RH \| For cars...	Cable harness	RHD RH \| For cars...	1
1	13 317 085 Cable harness RHD • RH \| For cars...	Cable harness	RHD RH \| For cars...	1
1	13 287 094 Cable harness RHD • RH \| For cars...	Cable harness	RHD RH \| For cars...	1
1	13 287 096 Cable harness RHD • RH \| With memory...	Cable harness	RHD RH \| With memory...	1
1	12 848 556 Cable harness RHD • RH \| For cars...	Cable harness	RHD RH \| For cars...	1
1	13 317 073 Cable harness RHD • RH \| For cars...	Cable harness	RHD RH \| For cars...	1
