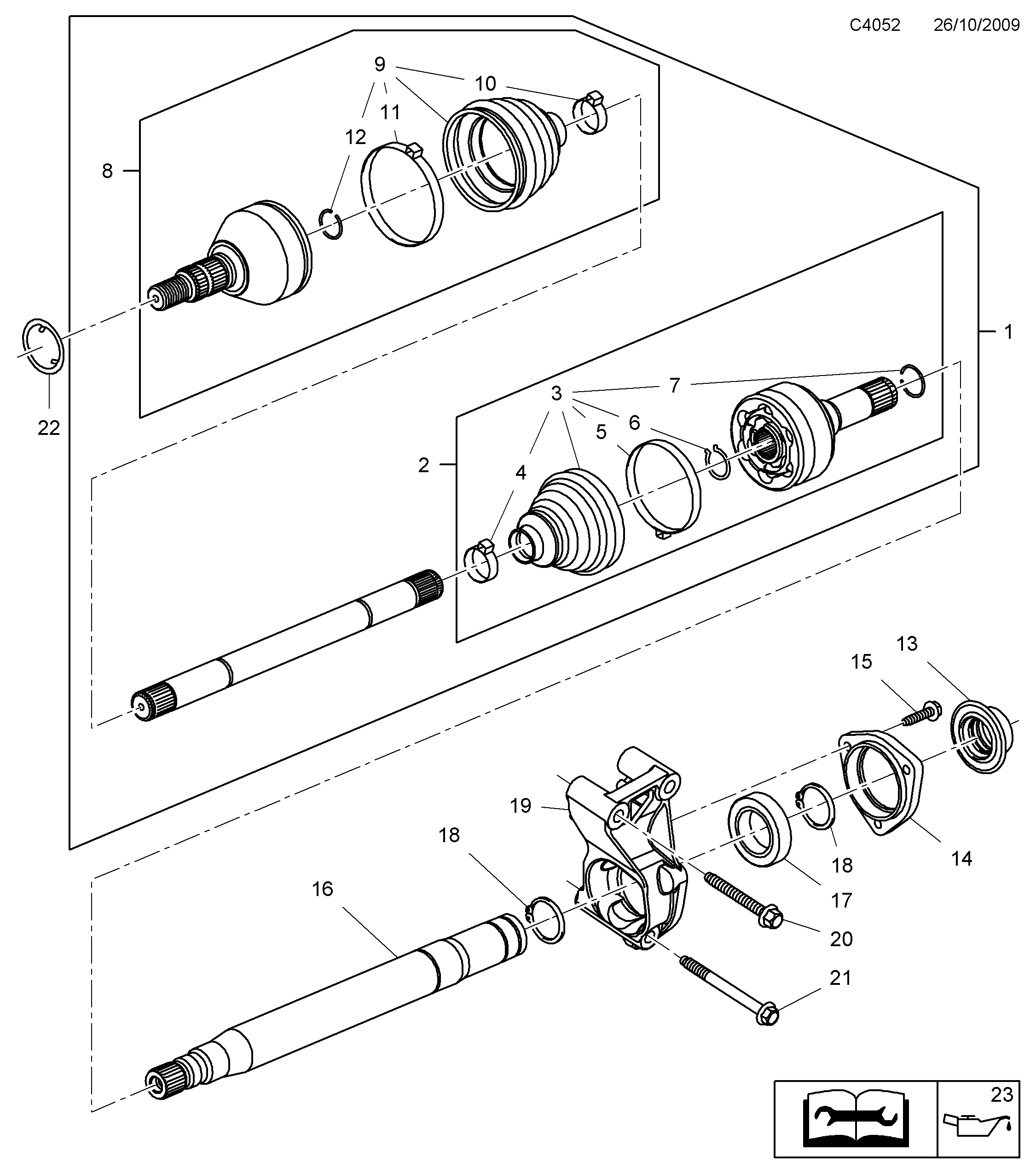

5000: Power transmission - Drive shaft - Outer universal joint - Front

(2010 - 2012 | A20NFT, A16LET) | For 9-5 (650) (2012)

100%

(N°4295)

Section 5000

(N°5025)

Pos.	Part No.	Description	Usage	Qty
1	13 219 092 Drive shaft A20NHT, A20NFT	Drive shaft	A20NHT, A20NFT	2
2	13 296 195 Joint, inner A20NFT, A16LET	Joint, inner	A20NFT, A16LET	2
3	13 291 745 Bellows kit A20NFT, A16LET • Inner	Bellows kit	A20NFT, A16LET Inner	1
4	13 291 770 Clamping ring A20NFT, A16LET	Clamping ring	A20NFT, A16LET	1
5	93 173 416 Clamp A20NFT, A16LET • 33.5MM	Clamp	A20NFT, A16LET 33.5MM	1
6	13 296 471 Retaining ring A20NFT, A16LET	Retaining ring	A20NFT, A16LET	1
7	90 223 082 Lock ring A20NFT, A16LET	Lock ring	A20NFT, A16LET	1
8	13 296 187 Joint, outer A20NFT, A16LET	Joint, outer	A20NFT, A16LET	2
9	13 291 737 Bellows kit A20NFT, A16LET • Outer	Bellows kit	A20NFT, A16LET Outer	1
10	93 173 416 Clamp A20NFT, A16LET • 35.5MM	Clamp	A20NFT, A16LET 35.5MM	1
11	93 173 417 Clamp A20NFT, A16LET • 95.5MM	Clamp	A20NFT, A16LET 95.5MM	1
12	93 173 412 Lock ring A20NFT, A16LET	Lock ring	A20NFT, A16LET	1
13	91 86 677 Sealing ring A20NFT, A16LET • Less All Wheel Drive...	Sealing ring	A20NFT, A16LET Less All Wheel Drive...	1
14	91 86 608 Flange A20NFT, A16LET	Flange	A20NFT, A16LET	1
15	11 097 431 Screw A20NFT, A16LET • M8 x 30	Screw	A20NFT, A16LET M8 x 30	3
16	13 233 952 Countershaft A20NFT, A16LET	Countershaft	A20NFT, A16LET	1
17	24 460 144 Ball bearing A20NFT, A16LET	Ball bearing	A20NFT, A16LET	1
18	11 102 301 Ring A20NFT, A16LET	Ring	A20NFT, A16LET	2
19	13 228 250 Bracket A20NFT, A16LET • Less All Wheel Drive...	Bracket	A20NFT, A16LET Less All Wheel Drive...	1
20	11 518 634 Hexagon screw A20NFT, A16LET • M10X80 \| Less All...	Hexagon screw	A20NFT, A16LET M10X80 \| Less All...	2
21	11 588 754 Screw A20NFT, A16LET • M10X110 \| Less All...	Screw	A20NFT, A16LET M10X110 \| Less All...	2
22	20 825 083 Washer A20NFT, A16LET • 0.521MM	Washer	A20NFT, A16LET 0.521MM	2
22	11 611 232 Washer A20NFT, A16LET • 0.508MM	Washer	A20NFT, A16LET 0.508MM	2
23	13 329 237 Grease A20NFT, A16LET • 100G	Grease	A20NFT, A16LET 100G	X
23	13 329 238 Grease A20NFT, A16LET • 130G	Grease	A20NFT, A16LET 130G	X
23	13 329 239 Grease A20NFT, A16LET • 150G	Grease	A20NFT, A16LET 150G	X
