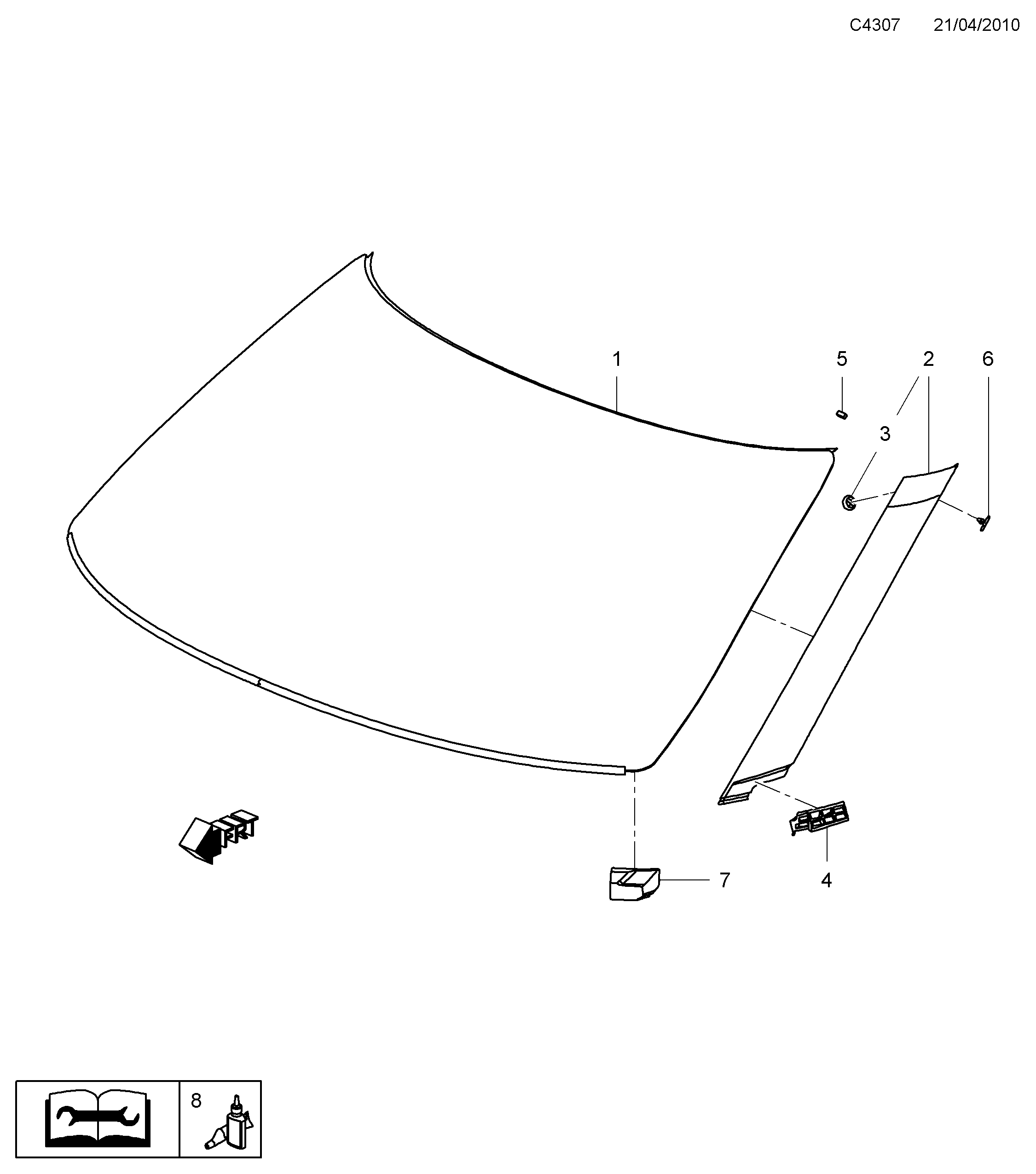

3400: Car body, external - External details - Windscreen
(2010 - 2012) | For 9-5 (650) (2012)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 772 874 Windscreen Without rain sensor | 1 | |
| 1 | 12 772 872 12 827 530 Windscreen LHD • rain sensor Without Lane... | 1 | |
| 1 | 12 783 383 Windscreen LHD • rain sensor Lane departure... | 1 | |
| 1 | 12 783 384 Windscreen LHD • rain sensor Lane departure... | 1 | |
| 1 | 12 776 038 12 827 533 Windscreen LHD • rain sensor Head up... | 1 | |
| 1 | 12 783 381 Windscreen RHD • rain sensor Without Lane... | 1 | |
| 1 | 12 821 668 Windscreen RHD • rain sensor Head up... | 1 | |
| 2 | 12 847 976 Plate LH | Decor strip | 1 | |
| 2 | 12 847 975 Plate RH | Decor strip | 1 | |
| 3 | 12 843 730 Clip Decor strip | X | |
| 4 | 12 848 684 Spacer piece LH | 1 | |
| 4 | 12 848 685 Spacer piece RH | 1 | |
| 5 | 12 776 803 Stop | 2 | |
| 6 | 12 847 302 Retainer | X | |
| 7 | 12 848 664 Insulator LH | 1 | |
| 7 | 12 848 665 Insulator RH | 1 | |
| 8 | 93 165 294 Adhesive kit Windscreen | X |
